NV-1-ASA

Gallery
Literature
IES
Bug Ratings
Lumen Data

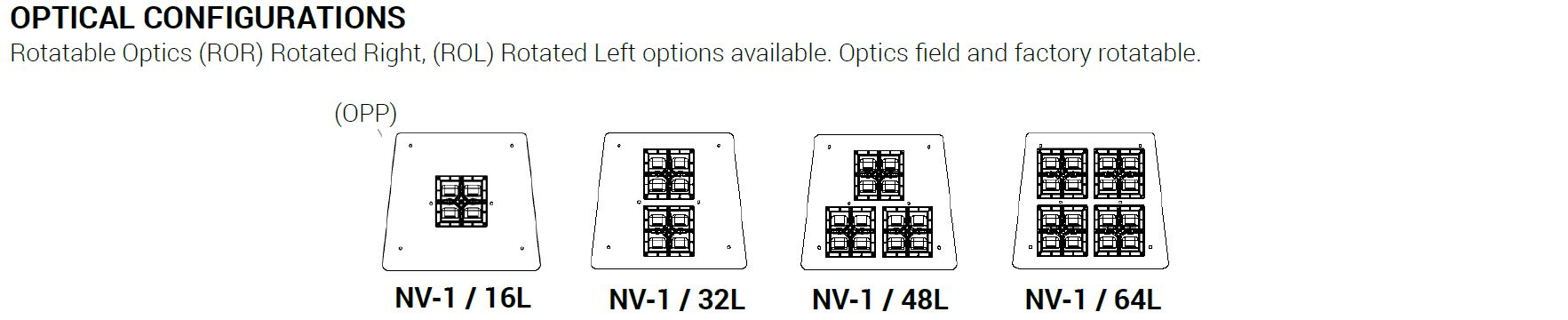

Optical System
Features
Specifications

Related marketing material is available for download or by request for delivery. Standard shipping is 5-7 business days via UPS Ground. For expedited delivery, please contact factory. Click HERE to order literature.

Click on image to download!

Loading...

Name

Size

Modified

Ascending

Descending

Select all

Deselect all

Download folder (.zip)

Download selected (.zip)

Thumbnails view

List view

No options...

NV-1 BUG Ratings

ORDER	Model	N2 BUG	T2 BUG	T3 BUG	T3-HSS BUG	T4 BUG	T4-HSS BUG	T5 BUG	Watts
1.00	NV-1-16L-35-30K	B2-U0-G0	B1-U0-G1	B1-U0-G1	B0-U0-G0	B1-U0-G1	B0-U0-G0	B2-U0-G0	18.00
2.00	NV-1-16L-35-40K	B2-U0-G0	B1-U0-G1	B1-U0-G1	B0-U0-G0	B1-U0-G1	B0-U0-G0	B2-U0-G0	18.00
3.00	NV-1-16L-35-50K	B2-U0-G0	B1-U0-G1	B1-U0-G1	B0-U0-G0	B1-U0-G1	B0-U0-G0	B2-U0-G0	18.00
4.00	NV-1-16L-53-30K	B3-U0-G1	B1-U0-G1	B1-U0-G1	B0-U0-G1	B1-U0-G1	B0-U0-G1	B2-U0-G1	28.00
5.00	NV-1-16L-53-40K	B3-U0-G1	B1-U0-G1	B1-U0-G1	B0-U0-G1	B1-U0-G1	B0-U0-G1	B2-U0-G1	28.00
6.00	NV-1-16L-53-50K	B2-U0-G1	B1-U0-G1	B1-U0-G1	B0-U0-G1	B1-U0-G1	B0-U0-G1	B2-U0-G1	28.00
7.00	NV-1-16L-7-30K	B3-U0-G1	B1-U0-G1	B1-U0-G1	B0-U0-G1	B1-U0-G1	B0-U0-G1	B3-U0-G1	36.00
8.00	NV-1-16L-7-40K	B3-U0-G1	B1-U0-G1	B1-U0-G1	B0-U0-G1	B1-U0-G1	B0-U0-G1	B3-U0-G1	36.00
9.00	NV-1-16L-7-50K	B3-U0-G1	B1-U0-G1	B1-U0-G1	B0-U0-G1	B1-U0-G1	B0-U0-G1	B3-U0-G1	36.00
10.00	NV-1-16L-1-30K	B3-U0-G1	B1-U0-G1	B1-U0-G1	B0-U0-G1	B1-U0-G1	B0-U0-G1	B3-U0-G1	56.00
11.00	NV-1-16L-1-40K	B3-U0-G1	B1-U0-G1	B2-U0-G2	B0-U0-G1	B2-U0-G2	B0-U0-G1	B3-U0-G2	56.00
12.00	NV-1-16L-1-50K	B4-U0-G1	B1-U0-G2	B2-U0-G2	B0-U0-G1	B2-U0-G2	B0-U0-G1	B3-U0-G2	56.00
13.00	NV-1-32L-7-30K	B4-U0-G1	B1-U0-G2	B2-U0-G2	B0-U0-G1	B2-U0-G2	B0-U0-G1	B3-U0-G2	71.00
14.00	NV-1-32L-7-40K	B4-U0-G1	B1-U0-G2	B2-U0-G2	B0-U0-G1	B2-U0-G2	B0-U0-G2	B3-U0-G2	71.00
15.00	NV-1-32L-7-50K	B4-U0-G1	B2-U0-G2	B2-U0-G2	B0-U0-G2	B2-U0-G2	B0-U0-G2	B3-U0-G2	71.00
16.00	NV-1-32L-1-30K	B4-U0-G1	B2-U0-G2	B2-U0-G2	B0-U0-G2	B2-U0-G2	B0-U0-G2	B4-U0-G2	106.00
17.00	NV-1-32L-1-40K	B4-U0-G1	B2-U0-G2	B2-U0-G2	B0-U0-G2	B3-U0-G2	B0-U0-G2	B4-U0-G2	106.00
18.00	NV-1-32L-1-50K	B4-U0-G1	B2-U0-G2	B3-U0-G3	B0-U0-G2	B3-U0-G3	B0-U0-G2	B4-U0-G2	106.00
19.00	NV-1-48L-7-30K	B4-U0-G1	B2-U0-G2	B2-U0-G2	B0-U0-G2	B2-U0-G2	B0-U0-G2	B4-U0-G2	104.00
20.00	NV-1-48L-7-40K	B4-U0-G1	B2-U0-G2	B2-U0-G2	B0-U0-G2	B2-U0-G2	B0-U0-G2	B4-U0-G2	104.00
21.00	NV-1-48L-7-50K	B4-U0-G1	B2-U0-G2	B3-U0-G3	B0-U0-G2	B2-U0-G2	B0-U0-G2	B4-U0-G2	104.00
22.00	NV-1-48L-1-30K	B5-U0-G1	B3-U0-G3	B3-U0-G3	B1-U0-G2	B3-U0-G3	B1-U0-G2	B4-U0-G2	156.00
23.00	NV-1-48L-1-40K	B5-U0-G1	B3-U0-G3	B3-U0-G3	B1-U0-G2	B3-U0-G3	B1-U0-G2	B5-U0-G3	156.00
24.00	NV-1-48L-1-50K	B5-U0-G1	B3-U0-G3	B3-U0-G3	B1-U0-G2	B3-U0-G3	B1-U0-G2	B5-U0-G3	156.00
25.00	NV-1-64L-7-30K	B5-U0-G1	B2-U0-G2	B3-U0-G3	B0-U0-G2	B3-U0-G3	B1-U0-G2	B4-U0-G2	136.00
26.00	NV-1-64L-7-40K	B5-U0-G1	B3-U0-G3	B3-U0-G3	B0-U0-G2	B3-U0-G3	B1-U0-G2	B4-U0-G2	136.00
27.00	NV-1-64L-7-50K	B5-U0-G1	B3-U0-G3	B3-U0-G3	B1-U0-G2	B3-U0-G3	B1-U0-G2	B4-U0-G2	136.00
28.00	NV-1-64L-1-30K	B5-U0-G1	B3-U0-G3	B3-U0-G3	B1-U0-G2	B3-U0-G3	B1-U0-G3	B5-U0-G3	205.00
29.00	NV-1-64L-1-40K	B5-U0-G1	B3-U0-G3	B3-U0-G3	B1-U0-G3	B3-U0-G4	B1-U0-G3	B5-U0-G3	205.00
30.00	NV-1-64L-1-50K	B5-U0-G1	B3-U0-G3	B3-U0-G3	B1-U0-G3	B3-U0-G4	B1-U0-G3	B5-U0-G3	205.00

Generated by wpDataTables

NV-1 Wattage

Order	Milliamps	16L	32L	48L	64L
1.00	350 mA	18w	-	-	-
2.00	530 mA	28w	-	-	-
3.00	700 mA	36w	71w	104w	136w
4.00	1050 mA	56w	106w	156w	205w

Generated by wpDataTables

NV-1 Lumens

ORDER	Model	N2 Lumens	N2 Lm/W	N3 Lumens	N3 Lm/W	T2 Lumens	T2 LM/W	T3 Lumens	T3 Lm/W	T3-HSS Lumens	T3-HSS Lm/W	T3L Lumens	T3L Lm/W	T4 Lumens	T4 Lm/W	T4-AHS Lumens	T4 AHS Lm/W	T4-HSS Lumens	T4-HSS Lm/W	T4L Lumens	T4L Lm/W	T5 Lumens	T5 LM/W	Watts
1	NV-1-16L-35-30K	1,944	108	2,016	112	2,106	117	2,106	117	1,134	63	2,052	114	2,187	116	1,296	72	1,116	62	2,034	113	2,231	118	18
2	NV-1-16L-35-40K	2,016	112	2,088	116	2,268	126	2,286	127	1,206	67	2,160	120	2,250	125	1,368	76	1,188	66	2,142	119	2,304	128	18
3	NV-1-16L-35-50K	2,088	116	2,160	120	2,376	132	2,394	133	1,278	71	2,322	129	2,358	131	1,440	80	1,260	70	2,340	130	2,412	134	18
4	NV-1-16L-53-30K	3,024	108	3,136	112	3,192	114	3,220	115	1,764	63	3,192	114	3,119	113	2,016	72	1,736	62	3,164	113	3,248	116	28
5	NV-1-16L-53-40K	3,136	112	3,248	116	3,472	124	3,472	124	1,876	67	3,360	120	3,444	123	2,128	76	1,848	66	3,332	119	3,500	125	28
6	NV-1-16L-53-50K	3,248	116	3,360	120	3,612	129	3,640	130	1,988	71	3,612	129	3,584	128	2,240	80	1,960	70	3,640	130	3,668	131	28
7	NV-1-16L-7-30K	3,888	108	4,032	112	3,960	110	3,960	110	2,268	63	4,104	114	3,973	109	2,592	72	2,232	62	4,068	113	3,996	111	36
8	NV-1-16L-7-40K	4,032	112	4,176	116	4,428	123	4,284	119	2,412	67	4,320	120	4,212	117	2,736	76	2,376	66	4,284	119	4,320	120	36
9	NV-1-16L-7-50K	4,176	116	4,320	120	4,644	129	4,500	125	2,556	71	4,644	129	4,428	123	2,880	80	2,520	70	4,680	130	4,500	125	36
10	NV-1-16L-1-30K	6,048	108	6,272	112	6,160	110	6,384	114	3,528	63	6,384	114	6,232	112	4,032	72	3,472	62	6,328	113	6,440	115	56
11	NV-1-16L-1-40K	6,272	112	6,496	116	6,832	122	6,888	123	3,752	67	6,720	120	6,776	121	4,256	76	3,696	66	6,664	119	6,944	124	56
12	NV-1-16L-1-50K	6,496	116	6,720	120	7,168	128	7,224	129	3,976	71	7,224	129	7,112	127	4,480	80	3,920	70	7,280	130	7,280	130	56
13	NV-1-32L-7-30K	7,668	108	7,952	112	7,810	110	7,810	110	4,473	63	8,094	114	7,739	109	5,112	72	4,402	62	8,023	113	7,881	111	71
14	NV-1-32L-7-40K	7,952	112	8,236	116	9,017	127	8,449	119	4,757	67	8,520	120	8,307	117	5,396	76	4,686	66	8,449	119	8,520	120	71
15	NV-1-32L-7-50K	8,236	116	8,520	120	9,159	129	8,875	125	5,041	71	9,159	129	8,733	123	5,680	80	4,970	70	9,230	130	8,946	126	71
16	NV-1-32L-1-30K	11,448	108	11,872	112	11,660	110	12,084	114	6,678	63	12,084	114	11,820	112	7,632	72	6,572	62	11,978	113	12,190	115	106
17	NV-1-32L-1-40K	11,872	112	12,296	116	12,932	122	13,038	123	7,102	67	12,720	120	12,826	121	8,056	76	6,996	66	12,614	119	13,144	124	106
18	NV-1-32L-1-50K	12,296	116	12,720	120	13,568	128	13,674	129	7,526	71	13,674	129	13,462	127	8,480	80	7,420	70	13,780	130	13,780	130	106
19	NV-1-48L-7-30K	11,232	108	11,648	112	11,440	110	11,440	110	6,552	63	11,856	114	11,336	109	7,488	72	6,448	62	11,752	113	11,544	111	104
20	NV-1-48L-7-40K	11,648	112	12,064	116	13,208	127	12,376	119	6,968	67	12,480	120	12,168	117	7,904	76	6,864	66	12,376	119	12,480	120	104
21	NV-1-48L-7-50K	12,064	116	12,480	120	13,520	130	13,000	125	7,384	71	13,416	129	12,792	123	8,320	80	7,280	70	13,520	130	13,104	126	104
22	NV-1-48L-1-30K	16,848	108	17,472	112	17,160	110	17,784	114	9,828	63	17,784	114	17,472	112	11,232	72	9,672	62	17,628	113	17,940	115	156
23	NV-1-48L-1-40K	17,472	112	18,096	116	19,032	122	19,188	123	10,452	67	18,720	120	18,876	121	11,856	76	10,296	66	18,564	119	19,344	124	156
24	NV-1-48L-1-50K	18,096	116	18,720	120	19,968	128	20,124	129	11,076	71	20,124	129	19,812	127	12,480	80	10,920	70	20,280	130	20,280	130	156
25	NV-1-64L-7-30K	14,688	108	15,232	112	14,960	110	14,960	110	8,568	63	15,504	114	14,824	109	9,792	72	8,432	62	15,368	113	15,096	111	136
26	NV-1-64L-7-40K	15,232	112	15,776	116	17,272	127	16,184	119	9,112	67	16,320	120	15,912	117	10,336	76	8,976	66	16,184	119	16,320	120	136
27	NV-1-64L-7-50K	15,776	116	16,320	120	17,680	130	17,000	125	9,656	71	17,544	129	16,728	123	10,880	80	9,520	70	17,680	130	17,136	126	136
28	NV-1-64L-1-30K	22,140	108	22,960	112	22,550	110	23,370	114	12,915	63	23,370	114	22,960	112	14,760	72	12,710	62	23,165	113	23,575	115	205
29	NV-1-64L-1-40K	22,960	112	23,780	116	25,010	122	25,215	123	13,735	67	24,600	120	24,805	121	15,580	76	13,530	66	24,395	119	25,420	124	205
30	NV-1-64L-1-50K	23,780	116	24,600	120	26,240	128	26,445	129	14,555	71	26,445	129	26,035	127	16,400	80	14,350	70	26,650	130	26,650	130	205

Generated by wpDataTables

Download WHY SILICONE OPTICS? Brochure to Learn more!

– Sleek, low profile housing Size 1
– Spec grade performance
– Engineered for optimum thermal management
– Low depreciation rate
– Reduces energy consumption and costs
– Optical system designed for Parking Lots, Auto Dealerships and General Area Lighting

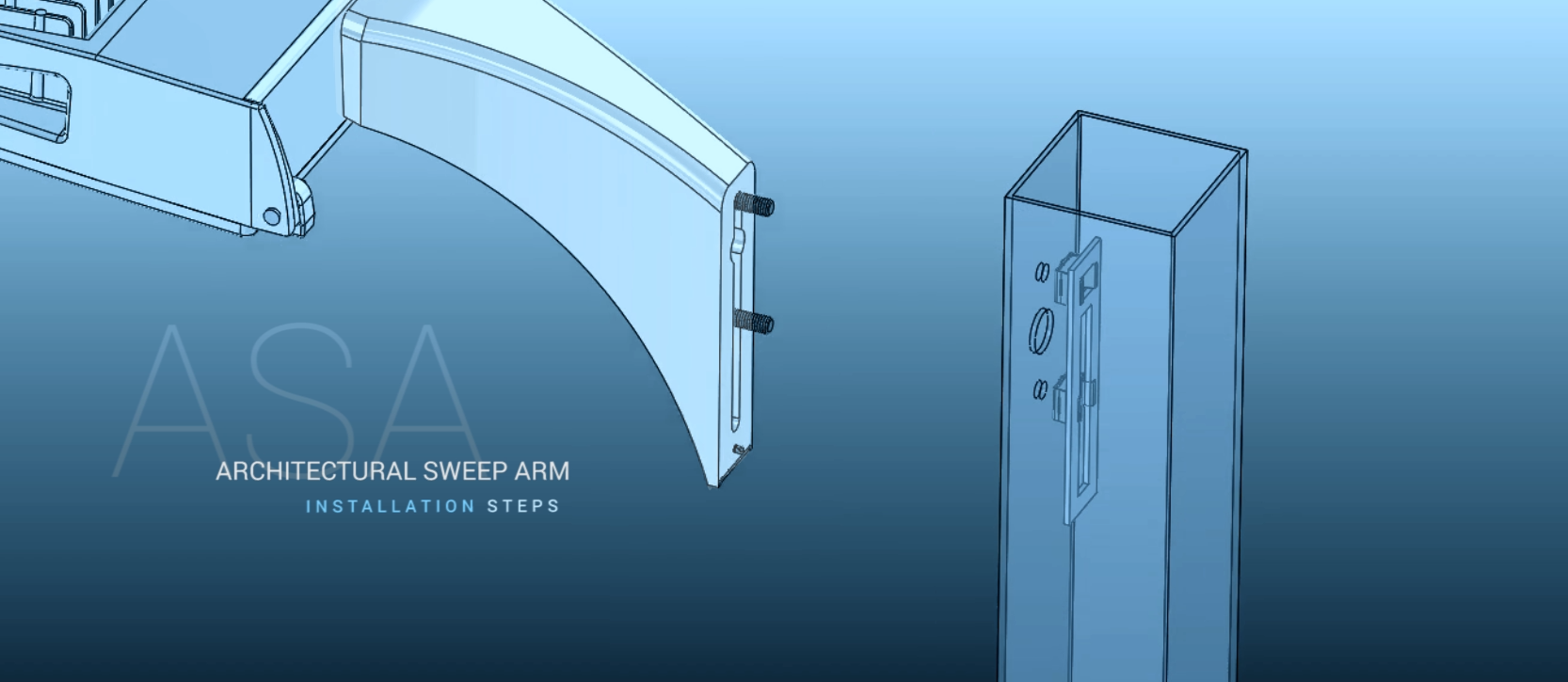

– Retrofit QMB (RQMB) is built in to facilitate mounting; fixture hooks on to cleat fastened directly on pole
– Light Distributions are Type 2, 3, 3L, 4, 4L, 5, N2 (24 Degree Narrow Beam) and N3 (30 Degree Narrow Beam)
– Dark Sky compliant—full cut-off design for Commercial applications with stringent property cut-off criteria.
– Specifically designed for Site / Area applications.
– Silicone Micro Optics which produce 96% clarity and are rated up to 200° C (50% higher than acrylic)
– High performance LEDs and Driver combinations for consistency and high reliability
– Philips Advance 0-10V Dimming Driver technology warranted 5 years—best voltage variance resistance in our industry.
– Conforms to the strictest Made in America standards. Designed, tooled, fabricated and assembled in the USA
– 3G Vibration Rated per ANSI C136.31-2010
