Horizon Bug Ratings

Order	Model	T2 B.U.G.	T3 B.U.G.	T3 HSS B.U.G.	T4 B.U.G.	T4 HSS B.U.G.	T5 B.U.G.	Watts
1	HRZ-1-16L-400-30K	B1-U0-G1	B1-U0-G1	B0-U0-G0	B1-U0-G1	B0-U0-G0	B2-U0-G1	21
2	HRZ-1-16L-400-40K	B1-U0-G1	B1-U0-G1	B0-U0-G0	B1-U0-G1	B0-U0-G0	B2-U0-G1	21
3	HRZ-1-16L-400-50K	B1-U0-G1	B1-U0-G1	B0-U0-G0	B1-U0-G1	B0-U0-G0	B2-U0-G1	21
4	HRZ-1-16L-530-30K	B1-U0-G1	B1-U0-G1	B0-U0-G0	B1-U0-G1	B0-U0-G1	B2-U0-G1	28
5	HRZ-1-16L-530-40K	B1-U0-G1	B1-U0-G1	B0-U0-G1	B1-U0-G1	B0-U0-G1	B2-U0-G1	28
6	HRZ-1-16L-530-50K	B1-U0-G1	B1-U0-G1	B0-U0-G1	B1-U0-G1	B0-U0-G1	B2-U0-G1	28
7	HRZ-1-16L-700-30K	B1-U0-G1	B1-U0-G1	B0-U0-G1	B1-U0-G1	B0-U0-G1	B3-U0-G1	36
8	HRZ-1-16L-700-40K	B1-U0-G1	B1-U0-G1	B0-U0-G1	B1-U0-G1	B0-U0-G1	B3-U0-G1	36
9	HRZ-1-16L-700-50K	B1-U0-G1	B1-U0-G1	B0-U0-G1	B1-U0-G1	B0-U0-G1	B3-U0-G1	36
10	HRZ-1-16L-1050-30K	B1-U0-G1	B1-U0-G1	B0-U0-G1	B1-U0-G2	B0-U0-G1	B3-U0-G1	56
11	HRZ-1-16L-1050-40K	B1-U0-G1	B1-U0-G1	B0-U0-G1	B1-U0-G2	B0-U0-G1	B3-U0-G1	56
12	HRZ-1-16L-1050-50K	B1-U0-G1	B1-U0-G2	B0-U0-G1	B1-U0-G2	B0-U0-G1	B3-U0-G1	56
13	HRZ-1-32L-530-30K	B1-U0-G1	B1-U0-G1	B0-U0-G1	B1-U0-G2	B0-U0-G1	B3-U0-G1	54
14	HRZ-1-32L-530-40K	B1-U0-G1	B1-U0-G1	B0-U0-G1	B1-U0-G2	B0-U0-G1	B3-U0-G1	54
15	HRZ-1-32L-530-50K	B1-U0-G1	B1-U0-G2	B0-U0-G1	B1-U0-G2	B0-U0-G1	B3-U0-G1	54
16	HRZ-1-32L-700-30K	B2-U0-G2	B2-U0-G2	B0-U0-G1	B2-U0-G2	B0-U0-G1	B3-U0-G2	71
17	HRZ-1-32L-700-40K	B2-U0-G2	B2-U0-G2	B0-U0-G1	B2-U0-G2	B0-U0-G1	B3-U0-G2	71
18	HRZ-1-32L-700-50K	B2-U0-G2	B2-U0-G2	B0-U0-G1	B2-U0-G2	B0-U0-G2	B3-U0-G2	71
19	HRZ-1-32L-1050-30K	B2-U0-G2	B2-U0-G2	B0-U0-G2	B2-U0-G2	B0-U0-G2	B4-U0-G2	106
20	HRZ-1-32L-1050-40K	B2-U0-G2	B2-U0-G2	B0-U0-G2	B2-U0-G2	B0-U0-G2	B4-U0-G2	106
21	HRZ-1-32L-1050-50K	B2-U0-G2	B2-U0-G2	B0-U0-G2	B2-U0-G2	B0-U0-G2	B4-U0-G2	106
22	HRZ-1-48L-700-30K	B2-U0-G2	B2-U0-G2	B0-U0-G2	B2-U0-G2	B0-U0-G2	B4-U0-G2	104
23	HRZ-1-48L-700-40K	B2-U0-G2	B2-U0-G2	B0-U0-G2	B2-U0-G2	B0-U0-G2	B4-U0-G2	104
24	HRZ-1-48L-700-50K	B2-U0-G2	B2-U0-G2	B0-U0-G2	B2-U0-G2	B0-U0-G2	B4-U0-G2	104
25	HRZ-1-48L-1050-30K	B3-U0-G3	B3-U0-G3	B0-U0-G2	B3-U0-G3	B1-U0-G2	B4-U0-G2	156
26	HRZ-1-48L-1050-40K	B3-U0-G3	B3-U0-G3	B0-U0-G2	B3-U0-G3	B1-U0-G2	B4-U0-G2	156
27	HRZ-1-48L-1050-50K	B3-U0-G3	B3-U0-G3	B1-U0-G2	B3-U0-G3	B1-U0-G2	B4-U0-G2	156
28	HRZ-1-64L-700-30K	B3-U0-G3	B3-U0-G3	B0-U0-G2	B3-U0-G3	B0-U0-G2	B4-U0-G2	137
29	HRZ-1-64L-700-40K	B3-U0-G3	B3-U0-G3	B0-U0-G2	B3-U0-G3	B1-U0-G2	B4-U0-G2	137
30	HRZ-1-64L-700-50K	B3-U0-G3	B3-U0-G3	B0-U0-G2	B3-U0-G3	B1-U0-G2	B4-U0-G2	137
31	HRZ-1-64L-1050-30K	B3-U0-G3	B3-U0-G3	B1-U0-G2	B3-U0-G3	B1-U0-G2	B5-U0-G3	205
32	HRZ-1-64L-1050-40K	B3-U0-G3	B3-U0-G3	B1-U0-G2	B3-U0-G4	B1-U0-G3	B5-U0-G3	205
33	HRZ-1-64L-1050-50K	B3-U0-G3	B3-U0-G3	B1-U0-G2	B3-U0-G4	B1-U0-G3	B5-U0-G3	205

Generated by wpDataTables

Horizon Wattage

Order	Milliamps	16L	32L	48L	64L
1	400 mA (40)	21w	-	-	-
2	530 mA (53)	28w	56w	-	-
3	700 mA (7)	36w	71w	104w	136w
4	1050 mA (1)	56w	106w	156w	205w

Generated by wpDataTables

Horizon Lumens

Order	Model	T2 Lumens	T2 Lm/W	T3 Lumens	T3 Lm/W	T4 Lumens	T4 Lm/W	T5 Lumens	T5 Lm/W	Watts
1	HRZ-1-16L-40-27K7	2,305	110	2,247	107	2,227	106	2,324	111	21
2	HRZ-1-16L-40-27K8	2,158	103	2,104	100	2,085	99	2,176	104	21
3	HRZ-1-16L-40-30K8	2,314	110	2,256	107	2,236	106	2,333	111	21
4	HRZ-1-16L-40-30K7	2,492	119	2,429	116	2,408	115	2,513	120	21
5	HRZ-1-16L-40-35K8	2,314	110	2,256	107	2,236	106	2,333	111	21
6	HRZ-1-16L-40-40K8	2,492	119	2,429	116	2,408	115	2,513	120	21
7	HRZ-1-16L-40-40K7	2,693	128	2,625	125	2,602	124	2,715	129	21
8	HRZ-1-16L-40-50K8	2,492	119	2,429	116	2,408	115	2,513	120	21
9	HRZ-1-16L-40-50K7	2,693	128	2,625	125	2,602	124	2,715	129	21
10	HRZ-1-16L-53-30K7	3,275	117	3,192	114	3,165	113	3,304	118	28
11	HRZ-116L-53-40K7	3,524	126	3,435	123	3,406	122	3,556	127	28
12	HRZ-1-16L-53-50K7	3,603	129	3,511	125	3,482	124	3,640	130	28
13	HRZ-1-16L-7-30K7	4,100	114	4,115	111	4,003	111	4,176	116	36
14	HRZ-1-16L-7-40K7	4,411	123	4,300	119	4,308	120	4,500	125	36
15	HRZ-1-16L-7-50K7	4,510	125	4,396	122	4,404	122	4,608	128	36
16	HRZ-1-16L-1-30K7	5,858	105	5,712	102	5,661	101	5,880	105	56
17	HRZ-1-16L-1-40K7	6,303	113	6,146	110	6,091	109	6,328	113	56
18	HRZ-1-16L-1-50K7	6,443	115	6,283	112	6,227	111	6,496	116	56
19	HRZ-1-32L-53-30K7	5,858	105	5,712	102	5,661	101	5,880	105	56
20	HRZ-1-32L-53-40K7	6,303	113	6,146	110	6,091	109	6,328	113	56
21	HRZ-1-32L-53-50K7	6,443	115	6,283	112	6,227	111	6,496	116	56
22	HRZ-1-32L-7-30K7	7,427	105	7,881	111	7,896	111	8,236	116	71
23	HRZ-1-32L-7-40K7	7,991	113	8,480	119	8,496	120	8,875	125	71
24	HRZ-1-32L-7-50K7	8,169	115	8,669	122	8,685	122	9,088	128	71
25	HRZ-1-32L-1-30K7	11,088	105	10,812	102	10,715	101	11,130	105	106
26	HRZ-1-32L-1-40K7	11,930	113	11,634	110	11,529	109	11,978	113	106
27	HRZ-1-32L-1-50K7	12,196	115	11,893	112	11,787	111	12,296	116	106
28	HRZ-1-48L-7-30K7	11,844	114	11,544	111	11,648	112	12,068	116	104
29	HRZ-1-48L-7-40K7	12,744	123	12,421	119	12,444	120	12,985	125	104
30	HRZ-1-48L-7-50K7	13,028	125	12,698	122	12,792	123	13,275	128	104
31	HRZ-1-48L-1-30K7	16,318	105	15,912	102	15,769	101	16,455	105	156
32	HRZ-1-48L-1-40K7	17,558	113	17,121	110	16,968	109	17,705	113	156
33	HRZ-1-48L-1-50K7	17,950	115	17,503	112	17,346	111	18,100	116	156
34	HRZ-1-64L-7-30K7	15,488	114	15,096	111	15,124	111	15,781	116	136
35	HRZ-1-64L-7-40K7	16,665	123	16,243	119	16,273	120	16,981	125	136
36	HRZ-1-64L-7-50K7	17,037	125	16,606	122	16,728	123	17,359	128	136
37	HRZ-1-64L-1-30K7	23,346	114	22,755	111	20,722	101	23,780	116	205
38	HRZ-1-64L-1-40K7	25,120	123	24,484	119	22,297	109	25,625	125	205
39	HRZ-1-64L-1-50K7	25,681	125	25,031	122	22,795	111	26,240	128	205

Generated by wpDataTables

Horizon HSS Lumens

Order	Model	T3 HSS Lumens	T3 HSS Lm/W	T4 HSS Lumens	T4 HSS Lm/W	Watts
1	HRZ-1-16L-40-27K7	-	-	-	-	21
2	HRZ-1-16L-40-27K8	-	-	-	-	21
3	HRZ-1-16L-40-30K8	-	-	-	-	21
4	HRZ-1-16L-40-30K7	-	-	-	-	21
5	HRZ-1-16L-40-35K8	-	-	-	-	21
6	HRZ-1-16L-40-40K8	-	-	-	-	21
7	HRZ-1-16L-40-40K7	-	-	-	-	21
8	HRZ-1-16L-40-50K8	-	-	-	-	21
9	HRZ-1-16L-40-50K7	-	-	-	-	21
10	HRZ-1-16L-53-30K7	1624	58	1596	57	28
11	HRZ-116L-53-40K7	1736	62	1708	61	28
12	HRZ-1-16L-53-50K7	1848	66	1820	65	28
13	HRZ-1-16L-7-30K7	2088	58	2052	57	36
14	HRZ-1-16L-7-40K7	2232	62	2196	61	36
15	HRZ-1-16L-7-50K7	2376	66	2340	65	36
16	HRZ-1-16L-1-30K7	3248	58	3192	57	56
17	HRZ-1-16L-1-40K7	3472	62	3416	61	56
18	HRZ-1-16L-1-50K7	3696	66	3640	65	56
19	HRZ-1-32L-53-30K7	3248	58	3192	57	56
20	HRZ-1-32L-53-40K7	3472	62	3416	61	56
21	HRZ-1-32L-53-50K7	3696	66	3640	65	56
22	HRZ-1-32L-7-30K7	4118	58	4047	57	71
23	HRZ-1-32L-7-40K7	4402	62	4331	61	71
24	HRZ-1-32L-7-50K7	4686	66	4615	65	71
25	HRZ-1-32L-1-30K7	6148	58	6042	57	106
26	HRZ-1-32L-1-40K7	6572	62	6466	61	106
27	HRZ-1-32L-1-50K7	6996	66	6890	65	106
28	HRZ-1-48L-7-30K7	6032	58	5928	57	104
29	HRZ-1-48L-7-40K7	6448	62	6344	61	104
30	HRZ-1-48L-7-50K7	6864	66	6760	65	104
31	HRZ-1-48L-1-30K7	9048	58	8892	57	156
32	HRZ-1-48L-1-40K7	9672	62	9516	61	156
33	HRZ-1-48L-1-50K7	10296	66	10140	65	156
34	HRZ-1-64L-7-30K7	7888	58	7752	57	136
35	HRZ-1-64L-7-40K7	8432	62	8296	61	136
36	HRZ-1-64L-7-50K7	8976	66	8840	65	136
37	HRZ-1-64L-1-30K7	11890	58	11685	57	205
38	HRZ-1-64L-1-40K7	12710	62	12505	61	205
39	HRZ-1-64L-1-50K7	13530	66	13325	65	205

Generated by wpDataTables

Download WHY SILICONE OPTICS? Brochure to Learn more!

– Designed to blend beautifully on residential, commercial or recreational applications

– Neighborhood friendly full Cutoff Dark Sky luminaire design with recessed LEDs to eliminate direct glare

– Clear tempered safety glass lens with silicone gasket that improves fixture reliability

– Available from 18 to 205 watts

– Throws light up to five mounting heights in all directions, enabling performance to exceed IES minimum foot candle levels and extend maintenance cycles

– Kelvin temperature offering of (warm) 3000, (neutral) 4000 and (cool) 5000 in Type 2, 3, 4 and 5 light distributions

– Philips Advance driver technology warranted 5 years

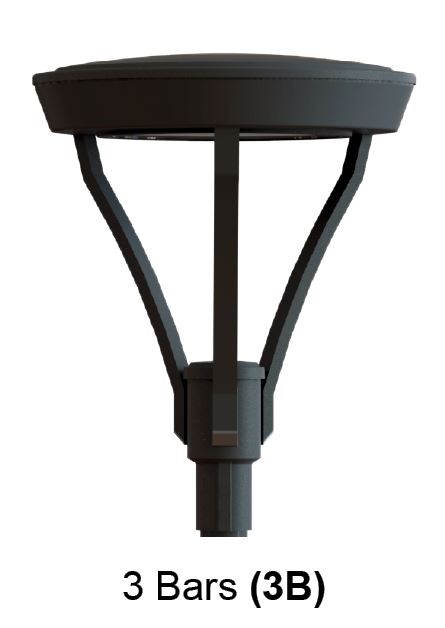

– Two mounting bars come standard. A third bar is optional.
– Conforms to the strictest Made in America standards designed, tooled, fabricated and assembled in the USA

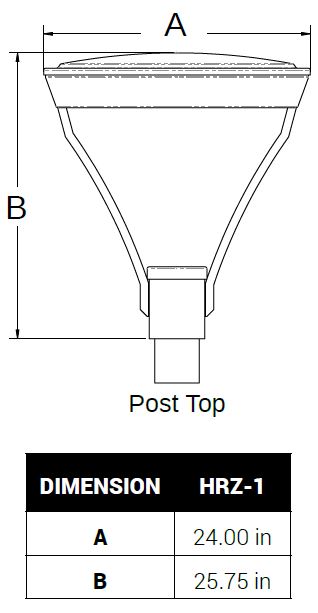

All dimensions are in inches.
