S10/S20 RATED IMPACT BOLLARDS

Enhanced Security with Architectural and Specification Grade Bollards



SPECIFICATION FEATURES

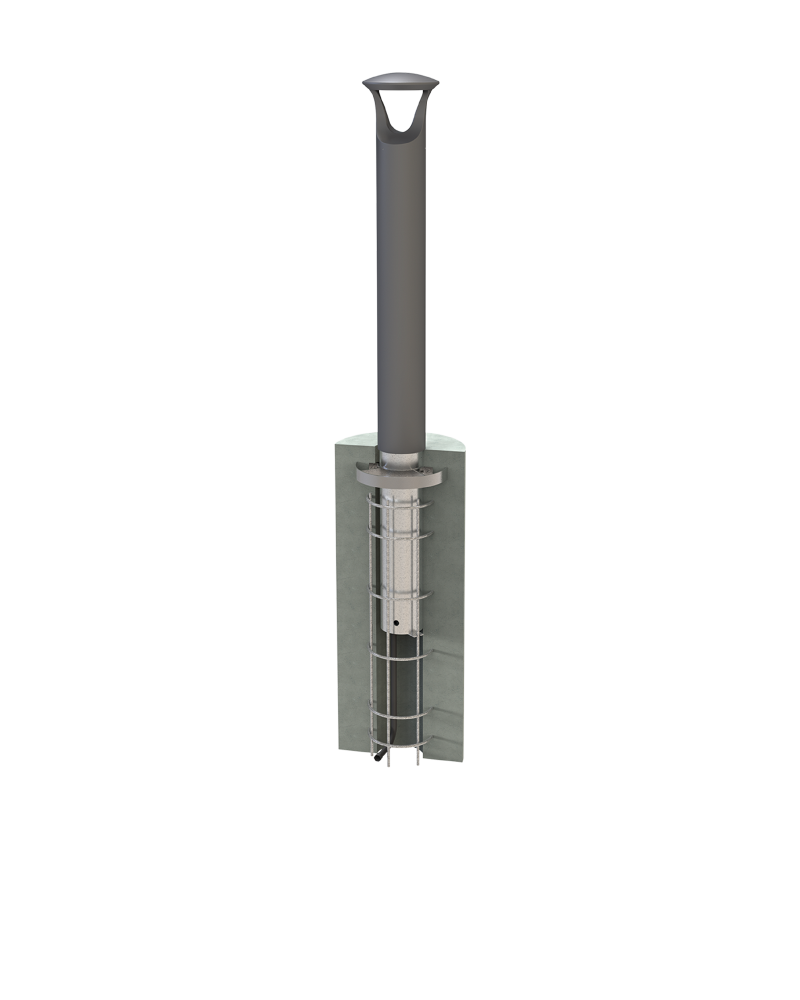

• Introducing NLS Impact Bollard with TG Core-In Protection System (impact rated core with sleeve) which has been ASTM F3016 full scale crash tested at an accredited test center; the 6” version offers a S10 impact rating (rated to stop a 5,000 lb vehicle up to 10 mph), while the 8” version comes with an impressive S20 impact rating (rated to stop a 5,000 lb vehicle up to 20 mph)



• Blends beautifully into any storefront or pathway environment where protection from traffic intrusion is required: Corporate, Schools, Hospitals, Airports, Hotels, Municipalities, and Industrial Settings



• A variety of optic Type distributions for any application at 3000K, 4000K, and 5000K CCT multichip high power 70 CRI LEDs with Unlit option available



• Surge Protection—20kA Surge Protection (120V – 480V), 0–10V programmable, dimming LED drivers



• Buy America(n) option compliant



• 8 standard finishes, marine grade finish and custom finish available



• Controls agnostic, compatible with most control systems and sensors



• Aluminum Housing with flushed, recessed and no visible hardware



• Environmentally Friendly Product which reduces energy consumption, L70 > 100,000 hours



• Cost competitive, supply chain friendly, and short shipping Lead Times in days & weeks

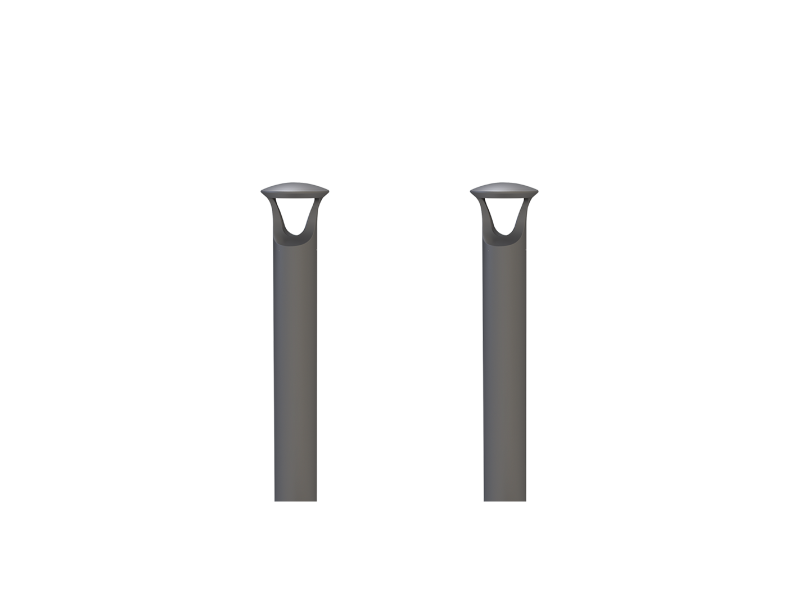

seaside
seaside

Impact Rated: S10, S20
COG45 Lumens: 945 – 2,003
Paracline Lumens: 1,309 – 2,975
Stacked Lumens: 986 – 2,275
Kelvin: 30K7, 40K7, 50K7
Wattage: 17 – 35
Heights: 49”
Diameter: 6” OD, 8” OD
Category: Bollards
Product Family: Sea Side Bollard
Impact Rated: S10, S20
COG45 Lumens: 945 – 2,003
Stacked Louver Lumens: 986 – 2,275
Paracline Lumens: 1,309 – 2,975
Kelvin: 30K7, 40K7, 50K7
Wattage: 17 – 36
Heights: 49”
Diameter: 6” OD, 8” OD
Category: Bollards
Product Family: Sea Side Bollard
Impact Rated: S20
COG45 Lumens: 945 – 2,003
Stacked Louver Lumens: 986 – 2,275
Paracline Lumens:1,309 – 2,975
Kelvin: 30K7, 40K7, 50K7
Wattage: 17 – 35
Heights: 49”
Size: 8” SQ
Category: Bollards
Product Family: Sea Side Bollard
radian
radian

Impact Rated: S10
Paracline Lumens: 1,907 – 4,164
Kelvin: 27K7, 27K8, 30K7, 30K8, 35K8, 40K7, 40K8, 50K7, 50K8
Wattage: 21 – 35
Heights: 45”
Diameter: 6” OD
Category: Bollards
Product Family: Radian
westfield
westfield

Impact Rated: S20
Lumens: 1,056 – 2,112
Kelvin: 27K7, 27K8, 30K7, 30K8, 35K8, 40K7, 40K8, 50K7, 50K8
Wattage: 21 – 33
Heights: 53”
Diameter: 8” OD
Category: Bollards
Product Family: Westfield

INSTALLATION GUIDE VIDEO



IMPORTANT:

Proper installation of the NLS Impact Bollard is mandatory and required to ensure it can achieve the desired performance as the integrated TG Core-In Protection System comprising of impact rated core with sleeve was evaluated to per ASTM F3016. If the NLS Impact Bollard is modified in any way or form or fit or function during the installation, it may not perform as the integrated TG Core-In Protection System (impact rated core with sleeve) was tested per ASTM F3016. It is important to follow installation instructions, and make sure trained installers, proper equipment and procedures are used to install the NLS Impact Bollard.

NLS Lighting bares no responsibility or liability for improper installation of NLS Impact Bollard. NLS Lighting is not liable for any failures due to soil conditions, incorrect installation, improper product use, and/or modifications to the NLS Impact Bollard. NLS specification sheet, installation instructions and video should be considered as guidelines therefore the soil condition, structural integrity and foundation and any other critical parameter related to installation of the NLS Impact Bollard are to be reviewed and approved by the customer and end user’s structural engineer prior to installation. To comply with the ASTM F3016 crash rating the impact portion must be installed exactly as TG Core-In Protection System was tested at an accredited test center and the full-scale crash test summary can be provided upon request.
