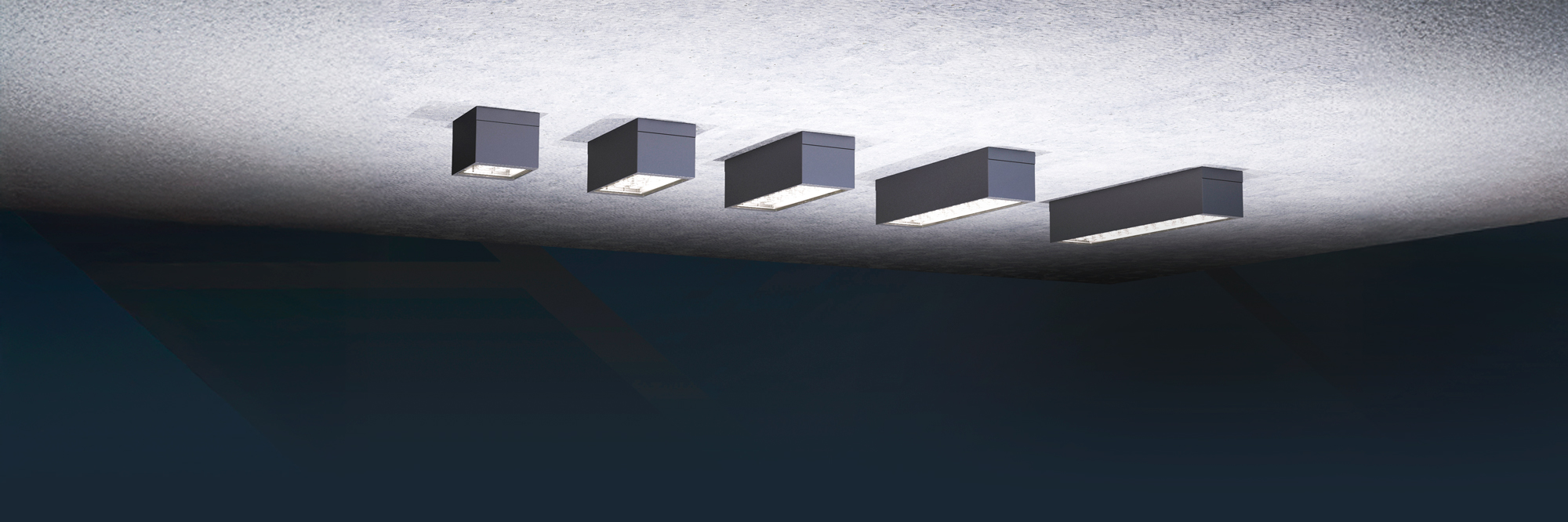

TRC-LCM - NLS Lighting, LLC

Gallery
Literature
Installation
Lumen Data
Optical System
Features

TRCL-LCM-01

Related marketing material is available for download or by request for delivery. Standard shipping is 5-7 business days via UPS Ground. For expedited delivery, please contact factory. Click HERE to order literature.

Click on image to download!

Name

Size

Modified

Ascending

Descending

Select all

Deselect all

Download folder

Download selected

Thumbnails view

List view

No options...

TRC-LCM Wattage

Order	Milliamps	TRC-LCM-1-16L	TRC-LCM-2-32L	TRC-LCM-3-48L	TRC-LCM-4-64L	TRC-LCM-5-80L
1	350mA	18W	36W	52W	68W	85W
2	530mA	28W	54W	79W	103W	128W
3	700mA	37W	71W	104W	136W	169W
4	825mA	43W	84W	-	-	-
5	1050mA	55W	-	-	-	-

Generated by wpDataTables

TRC-LCM-1 Lumens

ORDER	Model	15°	15° LM/W	30°	30° LM/W	55°	55° LM/W	85°	85° LM/W	T2 Lumens	T2 LM/W	T3 Lumens	T3 LM/W	T4FTW	LM/W	T5W	T5W LM/W	WATTAGE
1	TRC-LCM-1-16L-35-27K7	2,102	117	1,966	109	1,981	110	2,026	113	1,920	107	1,799	100	1,603	89	1,754	97	18
2	TRC-LCM-1-16L-35-27K8	1,959	109	1,832	102	1,846	103	1,889	105	1,790	99	1,677	93	1,494	83	1,635	91	18
3	TRC-LCM-1-16L-35-30K7	2,439	136	2,282	127	2,299	128	2,352	131	2,229	124	2,088	116	1,860	103	2,036	113	18
4	TRC-LCM-1-16L-35-30K8	2,114	117	1,977	110	1,993	111	2,038	113	1,932	107	1,810	101	1,612	90	1,764	98	18
5	TRC-LCM-1-16L-35-35K8	2,122	118	1,984	110	2,000	111	2,045	114	1,939	108	1,816	101	1,618	90	1,771	98	18
6	TRC-LCM-1-16L-35-40K7	2,502	139	2,340	130	2,358	131	2,412	134	2,286	127	2,142	119	1,908	106	2,088	116	18
7	TRC-LCM-1-16L-35-40K8	2,252	125	2,106	117	2,122	118	2,171	121	2,057	114	1,928	107	1,717	95	1,879	104	18
8	TRC-LCM-1-16L-35-50K7	2,502	139	2,340	130	2,358	131	2,412	134	2,286	127	2,142	119	1,908	106	2,088	116	18
9	TRC-LCM-1-16L-35-50K8	2,252	125	2,106	117	2,122	118	2,171	121	2,057	114	1,928	107	1,717	95	1,879	104	18
10	TRC-LCM-1-16L-53-27K7	3,034	108	2,822	101	2,846	102	2,916	104	2,752	98	2,564	92	2,258	81	2,493	89	28
11	TRC-LCM-1-16L-53-27K8	2,828	101	2,631	94	2,653	95	2,719	97	2,565	92	2,390	85	2,105	75	2,324	83	28
12	TRC-LCM-1-16L-53-30K7	3,522	126	3,276	117	3,303	118	3,385	121	3,194	114	2,976	106	2,621	94	2,894	103	28
13	TRC-LCM-1-16L-53-30K8	3,052	109	2,839	101	2,863	102	2,934	105	2,768	99	2,579	92	2,271	81	2,508	90	28
14	TRC-LCM-1-16L-53-35K8	3,063	109	2,849	102	2,873	103	2,944	105	2,778	99	2,588	92	2,279	81	2,517	90	28
15	TRC-LCM-1-16L-53-40K7	3,612	129	3,360	120	3,388	121	3,472	124	3,276	117	3,052	109	2,688	96	2,968	106	28
16	TRC-LCM-1-16L-53-40K8	3,251	116	3,024	108	3,049	109	3,125	112	2,948	105	2,747	98	2,419	86	2,671	95	28
17	TRC-LCM-1-16L-53-50K7	3,612	129	3,360	120	3,388	121	3,472	124	3,276	117	3,052	109	2,688	96	2,968	106	28
18	TRC-LCM-1-16L-53-50K8	3,251	116	3,024	108	3,049	109	3,125	112	2,948	105	2,747	98	2,419	86	2,671	95	28
19	TRC-LCM-1-16L-7-27K7	3,699	100	3,419	92	3,450	93	3,543	96	3,326	90	3,077	83	2,673	72	2,984	81	37
20	TRC-LCM-1-16L-7-27K8	3,448	93	3,187	86	3,216	87	3,303	89	3,100	84	2,868	78	2,492	67	2,781	75	37
21	TRC-LCM-1-16L-7-30K7	4,293	116	3,968	107	4,004	108	4,113	111	3,860	104	3,571	97	3,102	84	3,463	94	37
22	TRC-LCM-1-16L-7-30K8	3,721	101	3,439	93	3,470	94	3,564	96	3,345	90	3,095	84	2,689	73	3,001	81	37
23	TRC-LCM-1-16L-7-35K8	3,734	101	3,451	93	3,483	94	3,577	97	3,357	91	3,106	84	2,698	73	3,012	81	37
24	TRC-LCM-1-16L-7-40K7	4,403	119	4,070	110	4,107	111	4,218	114	3,959	107	3,663	99	3,182	86	3,552	96	37
25	TRC-LCM-1-16L-7-40K8	3,963	107	3,663	99	3,696	100	3,796	103	3,563	96	3,297	89	2,864	77	3,197	86	37
26	TRC-LCM-1-16L-7-50K7	4,403	119	4,070	110	4,107	111	4,218	114	3,959	107	3,663	99	3,182	86	3,552	96	37
27	TRC-LCM-1-16L-7-50K8	3,963	107	3,663	99	3,696	100	3,796	103	3,563	96	3,297	89	2,864	77	3,197	86	37
28	TRC-LCM-1-16L-82-27K7	4,262	99	3,937	92	3,973	92	4,082	95	3,829	89	3,540	82	3,070	71	3,431	80	43
29	TRC-LCM-1-16L-82-27K8	3,973	92	3,670	85	3,704	86	3,805	88	3,569	83	3,300	77	2,862	67	3,199	74	43
30	TRC-LCM-1-16L-82-30K7	4,947	115	4,570	106	4,612	107	4,738	110	4,444	103	4,109	96	3,564	83	3,983	93	43
31	TRC-LCM-1-16L-82-30K8	4,288	100	3,961	92	3,997	93	4,106	95	3,852	90	3,561	83	3,088	72	3,452	80	43
32	TRC-LCM-1-16L-82-35K8	4,303	100	3,975	92	4,011	93	4,120	96	3,865	90	3,573	83	3,099	72	3,464	81	43
32	TRC-LCM-1-16L-82-40K7	5,074	118	4,687	109	4,730	110	4,859	113	4,558	106	4,214	98	3,655	85	4,085	95	43
32	TRC-LCM-1-16L-82-40K8	4,567	106	4,218	98	4,257	99	4,373	102	4,102	95	3,793	88	3,290	77	3,677	86	43
32	TRC-LCM-1-16L-82-50K7	5,074	118	4,687	109	4,730	110	4,859	113	4,558	106	4,214	98	3,655	85	4,085	95	43
32	TRC-LCM-1-16L-82-50K8	4,567	106	4,218	98	4,257	99	4,373	102	4,102	95	3,793	88	3,290	77	3,677	86	43
32	TRC-LCM-1-16L-1-27K7	5,412	98	4,977	90	5,014	91	5,184	94	4,848	88	4,465	81	3,896	71	4,330	79	55
32	TRC-LCM-1-16L-1-27K8	5,045	92	4,639	84	4,674	85	4,833	88	4,519	82	4,162	76	3,632	66	4,036	73	55
32	TRC-LCM-1-16L-1-30K7	6,282	114	5,777	105	5,820	106	6,018	109	5,627	102	5,182	94	4,522	82	5,026	91	55
32	TRC-LCM-1-16L-1-30K8	5,444	99	5,007	91	5,044	92	5,215	95	4,876	89	4,491	82	3,919	71	4,356	79	55
32	TRC-LCM-1-16L-1-35K8	5,464	99	5,024	91	5,062	92	5,234	95	4,894	89	4,507	82	3,933	72	4,371	79	55
32	TRC-LCM-1-16L-1-40K7	6,443	117	5,925	108	5,969	109	6,172	112	5,771	105	5,315	97	4,638	84	5,155	94	55
32	TRC-LCM-1-16L-1-40K8	5,799	105	5,333	97	5,372	98	5,555	101	5,194	94	4,784	87	4,174	76	4,640	84	55
32	TRC-LCM-1-16L-1-50K7	6,443	117	5,925	108	5,969	109	6,172	112	5,771	105	5,315	97	4,638	84	5,155	94	55
32	TRC-LCM-1-16L-1-50K8	5,799	105	5,333	97	5,372	98	5,555	101	5,194	94	4,784	87	4,174	76	4,640	84	55

Generated by wpDataTables

TRC-LCM-2 Lumens

ORDER	Model	15°	15° LM/W	30°	30° LM/W	55°	55° LM/W	85°	85° LM/W	T2	T2 LM/W	T3	T3 LM/W	T4FTW	LM/W	T5W	T5W LM/W	WATTAGE
1	TRC-LCM-2-32L-35-27K7	4,838	134	4,506	125	4,491	125	4,687	130	4,536	126	4,264	118	3,871	108	4,143	115	36
2	TRC-LCM-2-32L-35-27K8	4,510	125	4,200	117	4,186	116	4,369	121	4,228	117	3,975	110	3,608	100	3,862	107	36
3	TRC-LCM-2-32L-35-30K7	5,616	156	5,230	145	5,212	145	5,441	151	5,265	146	4,949	137	4,493	125	4,809	134	36
4	TRC-LCM-2-32L-35-30K8	4,867	135	4,533	126	4,517	125	4,715	131	4,563	127	4,289	119	3,894	108	4,168	116	36
5	TRC-LCM-2-32L-35-35K8	4,884	136	4,549	126	4,533	126	4,732	131	4,579	127	4,304	120	3,908	109	4,182	116	36
6	TRC-LCM-2-32L-35-40K7	5,760	160	5,364	149	5,346	149	5,580	155	5,400	150	5,076	141	4,608	128	4,932	137	36
7	TRC-LCM-2-32L-35-40K8	5,184	144	4,828	134	4,811	134	5,022	140	4,860	135	4,568	127	4,147	115	4,439	123	36
8	TRC-LCM-2-32L-35-50K7	5,760	160	5,364	149	5,346	149	5,580	155	5,400	150	5,076	141	4,608	128	4,932	137	36
9	TRC-LCM-2-32L-35-50K8	5,184	144	4,828	134	4,811	134	5,022	140	4,860	135	4,568	127	4,147	115	4,439	123	36
10	TRC-LCM-2-32L-53-27K7	6,895	128	6,305	117	6,290	116	6,577	122	6,350	118	5,942	110	5,352	99	5,761	107	54
11	TRC-LCM-2-32L-53-27K8	6,427	119	5,877	109	5,863	109	6,131	114	5,919	110	5,539	103	4,989	92	5,370	99	54
12	TRC-LCM-2-32L-53-30K7	8,003	148	7,318	136	7,301	135	7,634	141	7,371	137	6,897	128	6,213	115	6,687	124	54
13	TRC-LCM-2-32L-53-30K8	6,936	128	6,343	117	6,327	117	6,616	123	6,388	118	5,978	111	5,384	100	5,795	107	54
14	TRC-LCM-2-32L-53-35K8	6,960	129	6,365	118	6,350	118	6,640	123	6,411	119	5,999	111	5,403	100	5,816	108	54
15	TRC-LCM-2-32L-53-40K7	8,208	152	7,506	139	7,488	139	7,830	145	7,560	140	7,074	131	6,372	118	6,858	127	54
16	TRC-LCM-2-32L-53-40K8	7,387	137	6,755	125	6,739	125	7,047	131	6,804	126	6,367	118	5,735	106	6,172	114	54
17	TRC-LCM-2-32L-53-50K7	8,208	152	7,506	139	7,488	139	7,830	145	7,560	140	7,074	131	6,372	118	6,858	127	54
18	TRC-LCM-2-32L-53-50K8	7,387	137	6,755	125	6,739	125	7,047	131	6,804	126	6,367	118	5,735	106	6,172	114	54
19	TRC-LCM-2-32L-7-27K7	8,447	119	7,717	109	7,702	108	8,034	113	7,767	109	7,237	102	6,461	91	6,951	98	71
20	TRC-LCM-2-32L-7-27K8	7,874	111	7,193	101	7,179	101	7,489	105	7,240	102	6,746	95	6,023	85	6,479	91	71
21	TRC-LCM-2-32L-7-30K7	9,805	138	8,957	126	8,940	126	9,325	131	9,016	127	8,400	118	7,500	106	8,068	114	71
22	TRC-LCM-2-32L-7-30K8	8,497	120	7,763	109	7,748	109	8,082	114	7,814	110	7,280	103	6,500	92	6,992	98	71
23	TRC-LCM-2-32L-7-35K8	8,527	120	7,791	110	7,775	110	8,110	114	7,841	110	7,306	103	6,523	92	7,017	99	71
24	TRC-LCM-2-32L-7-40K7	10,056	142	9,187	129	9,169	129	9,564	135	9,247	130	8,615	121	7,692	108	8,275	117	71
25	TRC-LCM-2-32L-7-40K8	9,050	127	8,268	116	8,252	116	8,608	121	8,322	117	7,754	109	6,923	98	7,448	105	71
26	TRC-LCM-2-32L-7-50K7	10,056	142	9,187	129	9,169	129	9,564	135	9,247	130	8,615	121	7,692	108	8,275	117	71
27	TRC-LCM-2-32L-7-50K8	9,050	127	8,268	116	8,252	116	8,608	121	8,322	117	7,754	109	6,923	98	7,448	105	71
28	TRC-LCM-2-32L-82-27K7	9,949	118	9,032	108	9,017	107	9,455	113	9,102	108	8,467	101	7,550	90	8,185	97	84
29	TRC-LCM-2-32L-82-27K8	9,274	110	8,419	100	8,405	100	8,813	105	8,485	101	7,893	94	7,038	84	7,630	91	84
30	TRC-LCM-2-32L-82-30K7	11,548	137	10,483	125	10,466	125	10,975	131	10,565	126	9,828	117	8,763	104	9,500	113	84
31	TRC-LCM-2-32L-82-30K8	10,008	119	9,085	108	9,070	108	9,511	113	9,156	109	8,518	101	7,595	90	8,234	98	84
32	TRC-LCM-2-32L-82-35K8	10,044	120	9,118	109	9,102	108	9,545	114	9,189	109	8,548	102	7,622	91	8,263	98	84
32	TRC-LCM-2-32L-82-40K7	11,844	141	10,752	128	10,734	128	11,256	134	10,836	129	10,080	120	8,988	107	9,744	116	84
32	TRC-LCM-2-32L-82-40K8	10,660	127	9,677	115	9,661	115	10,130	121	9,752	116	9,072	108	8,089	96	8,770	104	84
32	TRC-LCM-2-32L-82-50K7	11,844	141	10,752	128	10,734	128	11,256	134	10,836	129	10,080	120	8,988	107	9,744	116	84
32	TRC-LCM-2-32L-82-50K8	10,660	127	9,677	115	9,661	115	10,130	121	9,752	116	9,072	108	8,089	96	8,770	104	84

Generated by wpDataTables

TRC-LCM-3 Lumens

ORDER	Model	15°	15° LM/W	30°	30° LM/W	55°	55° LM/W	85°	85° LM/W	T2	T2 LM/W	T3	T3 LM/W	T4FTW	LM/W	T5W	T5W LM/W	WATTAGE
1	TRC-LCM-3-48L-35-27K7	6,989	134	6,639	128	6,683	129	6,770	130	6,203	119	6,246	120	5,591	108	5,722	110	52
2	TRC-LCM-3-48L-35-27K8	6,515	125	6,189	119	6,230	120	6,311	121	5,782	111	5,822	112	5,212	100	5,334	103	52
3	TRC-LCM-3-48L-35-30K7	8,112	156	7,706	148	7,757	149	7,859	151	7,199	138	7,250	139	6,490	125	6,642	128	52
4	TRC-LCM-3-48L-35-30K8	7,030	135	6,679	128	6,723	129	6,811	131	6,239	120	6,283	121	5,624	108	5,756	111	52
5	TRC-LCM-3-48L-35-35K8	7,055	136	6,703	129	6,747	130	6,835	131	6,262	120	6,306	121	5,644	109	5,777	111	52
6	TRC-LCM-3-48L-35-40K7	8,320	160	7,904	152	7,956	153	8,060	155	7,384	142	7,436	143	6,656	128	6,812	131	52
7	TRC-LCM-3-48L-35-40K8	7,488	144	7,114	137	7,160	138	7,254	140	6,646	128	6,692	129	5,990	115	6,131	118	52
8	TRC-LCM-3-48L-35-50K7	8,320	160	7,904	152	7,956	153	8,060	155	7,384	142	7,436	143	6,656	128	6,812	131	52
9	TRC-LCM-3-48L-35-50K8	7,488	144	7,114	137	7,160	138	7,254	140	6,646	128	6,692	129	5,990	115	6,131	118	52
10	TRC-LCM-3-48L-53-27K7	10,087	128	9,423	119	9,489	120	9,622	122	8,760	111	8,826	112	7,830	99	8,030	102	79
11	TRC-LCM-3-48L-53-27K8	9,402	119	8,784	111	8,846	112	8,969	114	8,165	103	8,227	104	7,299	92	7,485	95	79
12	TRC-LCM-3-48L-53-30K7	11,708	148	10,938	138	11,015	139	11,169	141	10,167	129	10,244	130	9,089	115	9,320	118	79
13	TRC-LCM-3-48L-53-30K8	10,147	128	9,479	120	9,546	121	9,679	123	8,812	112	8,878	112	7,877	100	8,077	102	79
14	TRC-LCM-3-48L-53-35K8	10,183	129	9,513	120	9,580	121	9,714	123	8,843	112	8,910	113	7,905	100	8,106	103	79
15	TRC-LCM-3-48L-53-40K7	12,008	152	11,218	142	11,297	143	11,455	145	10,428	132	10,507	133	9,322	118	9,559	121	79
16	TRC-LCM-3-48L-53-40K8	10,807	137	10,096	128	10,167	129	10,310	131	9,385	119	9,456	120	8,390	106	8,603	109	79
17	TRC-LCM-3-48L-53-50K7	12,008	152	11,218	142	11,297	143	11,455	145	10,428	132	10,507	133	9,322	118	9,559	121	79
18	TRC-LCM-3-48L-53-50K8	10,807	137	10,096	128	10,167	129	10,310	131	9,385	119	9,456	120	8,390	106	8,603	109	79
19	TRC-LCM-3-48L-7-27K7	12,554	121	11,678	112	11,702	113	11,802	113	10,677	103	10,739	103	9,416	91	9,684	93	104
20	TRC-LCM-3-48L-7-27K8	11,702	113	10,885	105	10,908	105	11,001	106	9,953	96	10,010	96	8,777	84	9,027	87	104
21	TRC-LCM-3-48L-7-30K7	14,571	140	13,554	130	13,583	131	13,699	132	12,393	119	12,464	120	10,930	105	11,241	108	104
22	TRC-LCM-3-48L-7-30K8	12,629	121	11,747	113	11,772	113	11,872	114	10,741	103	10,802	104	9,472	91	9,742	94	104
23	TRC-LCM-3-48L-7-35K8	12,673	122	11,789	113	11,813	114	11,914	115	10,779	104	10,841	104	9,506	91	9,777	94	104
24	TRC-LCM-3-48L-7-40K7	14,945	144	13,902	134	13,931	134	14,050	135	12,711	122	12,784	123	11,210	108	11,529	111	104
25	TRC-LCM-3-48L-7-40K8	13,451	129	12,512	120	12,538	121	12,645	122	11,440	110	11,506	111	10,089	97	10,376	100	104
26	TRC-LCM-3-48L-7-50K7	14,945	144	13,902	134	13,931	134	14,050	135	12,711	122	12,784	123	11,210	108	11,529	111	104
27	TRC-LCM-3-48L-7-50K8	13,451	129	12,512	120	12,538	121	12,645	122	11,440	110	11,506	111	10,089	97	10,376	100	104

Generated by wpDataTables

TRC-LCM-4 Lumens

ORDER	Model	15°	15° LM/W	30°	30° LM/W	55°	55° LM/W	85°	85° LM/W	T2	T2 LM/W	T3	T3 LM/W	T4FTW	LM/W	T5W	T5W LM/W	WATTAGE
1	TRC-LCM-4-64L-35-27K7	9,139	134	8,511	125	8,568	126	8,593	126	7,940	117	7,768	114	7,026	103	7,311	108	68
2	TRC-LCM-4-64L-35-27K8	8,519	125	7,933	117	7,987	117	8,010	118	7,401	109	7,241	106	6,549	96	6,815	100	68
3	TRC-LCM-4-64L-35-30K7	10,608	156	9,879	145	9,945	146	9,974	147	9,216	136	9,017	133	8,155	120	8,486	125	68
4	TRC-LCM-4-64L-35-30K8	9,194	135	8,562	126	8,619	127	8,644	127	7,987	117	7,815	115	7,068	104	7,355	108	68
5	TRC-LCM-4-64L-35-35K8	9,226	136	8,592	126	8,650	127	8,675	128	8,015	118	7,842	115	7,093	104	7,381	109	68
6	TRC-LCM-4-64L-35-40K7	10,880	160	10,132	149	10,200	150	10,230	150	9,452	139	9,248	136	8,364	123	8,704	128	68
7	TRC-LCM-4-64L-35-40K8	9,792	144	9,119	134	9,180	135	9,207	135	8,507	125	8,323	122	7,528	111	7,834	115	68
8	TRC-LCM-4-64L-35-50K7	10,880	160	10,132	149	10,200	150	10,230	150	9,452	139	9,248	136	8,364	123	8,704	128	68
9	TRC-LCM-4-64L-35-50K8	9,792	144	9,119	134	9,180	135	9,207	135	8,507	125	8,323	122	7,528	111	7,834	115	68
10	TRC-LCM-4-64L-53-27K7	12,978	126	12,026	117	12,113	118	12,142	118	11,161	108	10,902	106	9,777	95	10,209	99	103
11	TRC-LCM-4-64L-53-27K8	12,097	117	11,210	109	11,291	110	11,318	110	10,404	101	10,162	99	9,113	88	9,517	92	103
12	TRC-LCM-4-64L-53-30K7	15,064	146	13,959	136	14,060	137	14,094	137	12,955	126	12,654	123	11,348	110	11,850	115	103
13	TRC-LCM-4-64L-53-30K8	13,055	127	12,098	117	12,185	118	12,214	119	11,228	109	10,966	106	9,835	95	10,270	100	103
14	TRC-LCM-4-64L-53-35K8	13,102	127	12,141	118	12,228	119	12,258	119	11,267	109	11,005	107	9,870	96	10,307	100	103
15	TRC-LCM-4-64L-53-40K7	15,450	150	14,317	139	14,420	140	14,455	140	13,287	129	12,978	126	11,639	113	12,154	118	103
16	TRC-LCM-4-64L-53-40K8	13,905	135	12,885	125	12,978	126	13,010	126	11,958	116	11,680	113	10,475	102	10,939	106	103
17	TRC-LCM-4-64L-53-50K7	15,450	150	14,317	139	14,420	140	14,455	140	13,287	129	12,978	126	11,639	113	12,154	118	103
18	TRC-LCM-4-64L-53-50K8	13,905	135	12,885	125	12,978	126	13,010	126	11,958	116	11,680	113	10,475	102	10,939	106	103
19	TRC-LCM-4-64L-7-27K7	16,115	118	14,787	109	14,900	110	14,907	110	13,591	100	13,198	97	11,747	86	12,320	91	136
20	TRC-LCM-4-64L-7-27K8	15,021	110	13,783	101	13,889	102	13,895	102	12,669	93	12,302	90	10,950	81	11,484	84	136
21	TRC-LCM-4-64L-7-30K7	18,704	138	17,163	126	17,295	127	17,302	127	15,776	116	15,319	113	13,635	100	14,300	105	136
22	TRC-LCM-4-64L-7-30K8	16,210	119	14,875	109	14,989	110	14,995	110	13,672	101	13,277	98	11,817	87	12,394	91	136
23	TRC-LCM-4-64L-7-35K8	16,268	120	14,927	110	15,042	111	15,049	111	13,721	101	13,324	98	11,859	87	12,438	91	136
24	TRC-LCM-4-64L-7-40K7	19,184	141	17,603	129	17,738	130	17,746	130	16,180	119	15,712	116	13,985	103	14,667	108	136
25	TRC-LCM-4-64L-7-40K8	17,266	127	15,843	116	15,964	117	15,971	117	14,562	107	14,141	104	12,587	93	13,200	97	136
26	TRC-LCM-4-64L-7-50K7	19,184	141	17,603	129	17,738	130	17,746	130	16,180	119	15,712	116	13,985	103	14,667	108	136
27	TRC-LCM-4-64L-7-50K8	17,266	127	15,843	116	15,964	117	15,971	117	14,562	107	14,141	104	12,587	93	13,200	97	136

Generated by wpDataTables

TRC-LCM-5 Lumens

ORDER	Model	15°	15° LM/W	30°	30° LM/W	55°	55° LM/W	85°	85° LM/W	T2	T2 LM/W	T3	T3 LM/W	T4FTW	LM/W	T5W	T5W LM/W	WATTAGE
1	TRC-LCM-5-80L-35-27K7	11,495	135	10,781	127	11,067	130	11,101	131	10,282	121	10,424	123	9,282	109	9,996	118	85
2	TRC-LCM-5-80L-35-27K8	10,715	126	10,050	118	10,316	121	10,347	122	9,584	113	9,717	114	8,652	102	9,318	110	85
3	TRC-LCM-5-80L-35-30K7	13,343	157	12,514	147	12,846	151	12,885	152	11,934	140	12,100	142	10,774	127	11,603	137	85
4	TRC-LCM-5-80L-35-30K8	11,564	136	10,846	128	11,133	131	11,167	131	10,343	122	10,486	123	9,337	110	10,056	118	85
5	TRC-LCM-5-80L-35-35K8	11,605	137	10,884	128	11,172	131	11,206	132	10,380	122	10,524	124	9,370	110	10,091	119	85
6	TRC-LCM-5-80L-35-40K7	13,685	161	12,835	151	13,175	155	13,215	155	12,240	144	12,410	146	11,050	130	11,900	140	85
7	TRC-LCM-5-80L-35-40K8	12,317	145	11,552	136	11,858	140	11,894	140	11,016	130	11,169	131	9,945	117	10,710	126	85
8	TRC-LCM-5-80L-35-50K7	13,685	161	12,835	151	13,175	155	13,215	155	12,240	144	12,410	146	11,050	130	11,900	140	85
9	TRC-LCM-5-80L-35-50K8	12,317	145	11,552	136	11,858	140	11,894	140	11,016	130	11,169	131	9,945	117	10,710	126	85
10	TRC-LCM-5-80L-53-27K7	16,666	130	15,160	118	15,590	122	15,641	122	14,408	113	14,623	114	12,902	101	13,978	109	128
11	TRC-LCM-5-80L-53-27K8	15,535	121	14,132	110	14,532	114	14,579	114	13,430	105	13,630	106	12,027	94	13,029	102	128
12	TRC-LCM-5-80L-53-30K7	19,344	151	17,597	137	18,096	141	18,155	142	16,723	131	16,973	133	14,976	117	16,224	127	128
13	TRC-LCM-5-80L-53-30K8	16,765	131	15,251	119	15,683	123	15,734	123	14,493	113	14,710	115	12,979	101	14,061	110	128
14	TRC-LCM-5-80L-53-35K8	16,824	131	15,305	120	15,739	123	15,790	123	14,545	114	14,762	115	13,025	102	14,111	110	128
15	TRC-LCM-5-80L-53-40K7	19,840	155	18,048	141	18,560	145	18,620	145	17,152	134	17,408	136	15,360	120	16,640	130	128
16	TRC-LCM-5-80L-53-40K8	17,856	140	16,243	127	16,704	131	16,758	131	15,437	121	15,667	122	13,824	108	14,976	117	128
17	TRC-LCM-5-80L-53-50K7	19,840	155	18,048	141	18,560	145	18,620	145	17,152	134	17,408	136	15,360	120	16,640	130	128
18	TRC-LCM-5-80L-53-50K8	17,856	140	16,243	127	16,704	131	16,758	131	15,437	121	15,667	122	13,824	108	14,976	117	128
19	TRC-LCM-5-80L-7-27K7	20,611	122	18,530	110	19,128	113	19,216	114	17,667	105	17,889	106	15,626	92	17,026	101	169
20	TRC-LCM-5-80L-7-27K8	19,212	114	17,273	102	17,830	106	17,912	106	16,468	97	16,675	99	14,565	86	15,871	94	169
21	TRC-LCM-5-80L-7-30K7	23,924	142	21,509	127	22,202	131	22,304	132	20,506	121	20,764	123	18,137	107	19,762	117	169
22	TRC-LCM-5-80L-7-30K8	20,734	123	18,641	110	19,241	114	19,330	114	17,772	105	17,995	106	15,719	93	17,127	101	169
23	TRC-LCM-5-80L-7-35K8	20,807	123	18,707	111	19,310	114	19,399	115	17,835	106	18,059	107	15,774	93	17,188	102	169
24	TRC-LCM-5-80L-7-40K7	24,537	145	22,060	131	22,771	135	22,876	135	21,032	124	21,296	126	18,602	110	20,269	120	169
25	TRC-LCM-5-80L-7-40K8	22,083	131	19,854	117	20,494	121	20,588	122	18,929	112	19,166	113	16,742	99	18,242	108	169
26	TRC-LCM-5-80L-7-50K7	24,537	145	22,060	131	22,771	135	22,876	135	21,032	124	21,296	126	18,602	110	20,269	120	169
27	TRC-LCM-5-80L-7-50K8	22,083	131	19,854	117	20,494	121	20,588	122	18,929	112	19,166	113	16,742	99	18,242	108	169

Generated by wpDataTables

Download WHY SILICONE OPTICS? Brochure to Learn more!

TRAC Collection TRC-LCM

• Elegant Rectilinear Extruded Aluminum Housing
• Silicone Micro Optics
• IES Distributions T2, T3, T4, T4FTW, T5W
• 16L, 32L, 48L, 64L, or 80L LED Configuration
• 0-10V Dimming Drivers
• 2700, 3000, 4000, or 5000 Kelvin
• 3,600-12,000 Lumens, 21-205 Watts
• Corrosion Resistant Stainless Steel External Hardware
• 5 mils Electrostatic Powder Coat
• IP67 Light Engine
