ORGANIX ARCHITECTURAL FAMILY

The Organix iconic design blends and enhances any contemporary architectural outdoor setting with a complete set of product offering for Area, Site & Roadway, Decorative, Garage, Canopy, Ceiling, Wall Mount, Floodlights, and Bollards applications. The Organix product family with multiple sizes and orientations gives flexibility to illuminate any exterior space.




S10/S20 RATED IMPACT BOLLARDS

Enhanced Security with Architectural and Specification Grade Bollards



SPECIFICATION FEATURES

• Introducing NLS Impact Bollard with TG Core-In Protection System (impact rated core with sleeve) which has been ASTM F3016 full scale crash tested at an accredited test center; the 6” version offers a S10 impact rating (rated to stop a 5,000 lb vehicle up to 10 mph), while the 8” version comes with an impressive S20 impact rating (rated to stop a 5,000 lb vehicle up to 20 mph)

• Blends beautifully into any storefront or pathway environment where protection from traffic intrusion is required: Corporate, Schools, Hospitals, Airports, Hotels, Municipalities, and Industrial Settings

• A variety of optic Type distributions for any application at 3000K, 4000K, and 5000K CCT multichip high power 70 CRI LEDs with Unlit option available

• Surge Protection—20kA Surge Protection (120V – 480V), 0–10V programmable, dimming LED drivers

• Buy America(n) option compliant

• 8 standard finishes, marine grade finish and custom finish available

• Controls agnostic, compatible with most control systems and sensors

• Aluminum Housing with flushed, recessed and no visible hardware

• Environmentally Friendly Product which reduces energy consumption, L70 > 100,000 hours

• Cost competitive, supply chain friendly, and short shipping Lead Times in days & weeks



INTRODUCING THE VUE-34X—ULTIMATE SPORTS LIGHT!

VUE-34X Specification Features:

  • Ideal for Tennis Clubs, Pickleball Clubs, Outdoor Sports Courts for Universities, High Schools, Residential Community Centers, Public Parks, and Private Homes
  • Replaces the VUE-3 and VUE-4 with increased court visibility (up to 87,000 Lumens, Weight: 58 lbs, EPA: 1.04) uses the Star Power™ Optic System for improved visual comfort and uniformity
  • Optimized Sports Optic for Tennis and Pickleball
  • 192L (51,000 to 79,000 Lumens) and 224L (80,000 to 87,000 Lumens) LED Configurations
  • 4000K or 5000K CCT Multichip High Power 70 CRI LEDs standard
  • IP66 Rated against dust & water ingress
  • IK08 Rated for Impact Protection
  • 20kA Surge Protection (120V – 480V), highest quality 0–10V programmable, dimming LED drivers
  • Easy to Install mountings with a 1.5G to 3G Vibration Rating: Architectural Sweep Arm, Knuckle Mount, Trunnion Mount, Davit Arm Mount and Tennis Arm
  • 9 Standard Paint Finishes, Marine Grade Finish and Custom Finish available
  • Controls Agnostic, Compatible with most control systems and sensors
  • Die-Cast Aluminum Housing for a precision fit, greater heat dispersion, and durability
  • Optional Front Side Shield or House Side Shield for additional glare control
  • Environmentally friendly product which reduces energy consumption, L70 > 120,000 hours
  • Experienced in-house design team to provide layouts and photometric designs at no charge based on USTA and National Pickleball Association Published Lighting Criteria
  • Buy America(n), completely designed, powder coated, and assembled in the USA
  • Cost competitive, supply chain friendly, and short shipping lead times in days & weeks

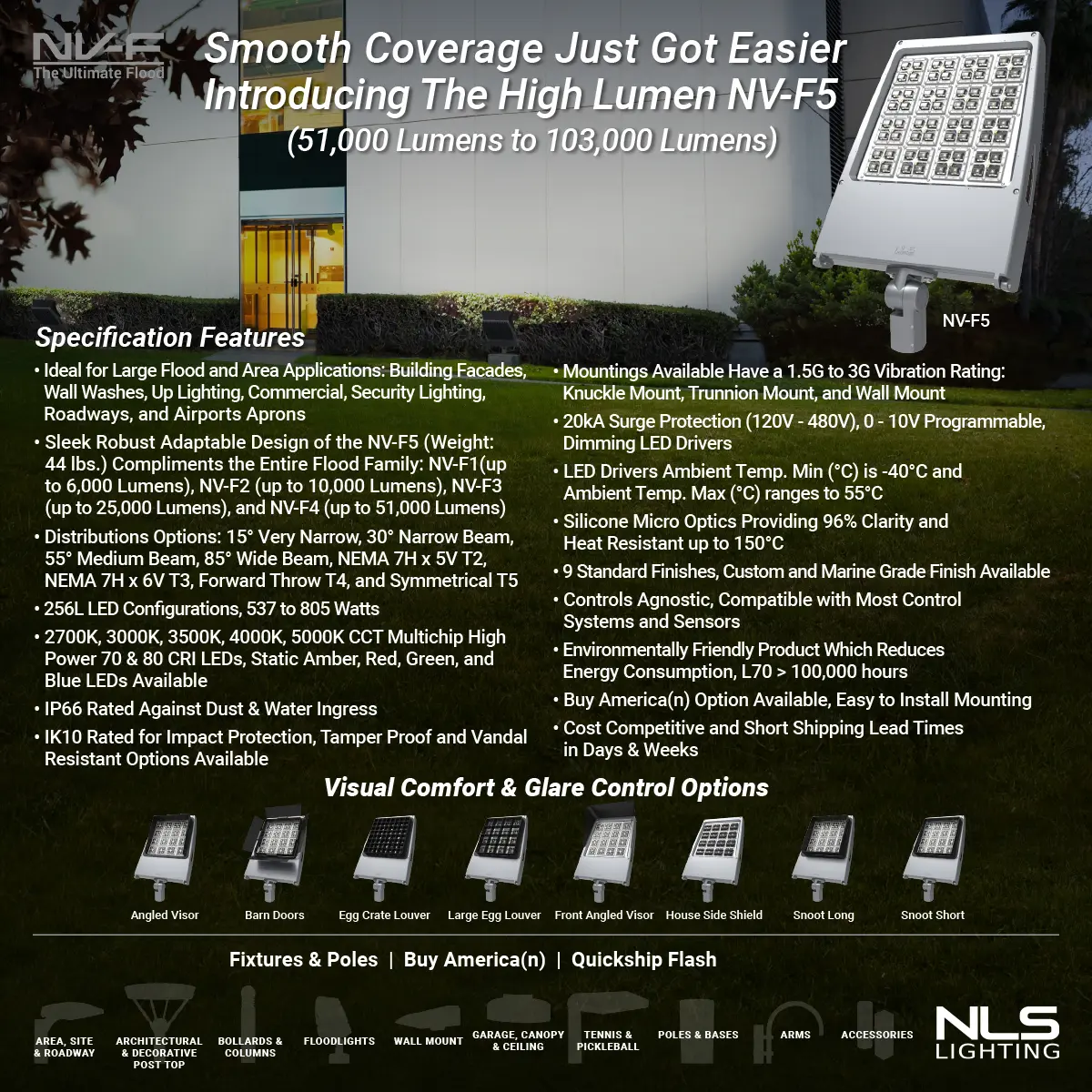

NEW Addition to NLS Flood Family: NV-F5

• Ideal for Large Flood and Area Applications: Building Facades, Wall Washes, Up Lighting, Commercial, Security Lighting, Roadways, and Airports Aprons
• LED Drivers Ambient Temp. Min (°C) is -40°C and Ambient Temp. Max (°C) ranges to 55°C
• Silicone Micro Optics providing 96% Clarity and Heat Resistant up to 150°C
• 9 Standard Finishes, Custom and Marine Grade Finish Available
• Controls Agnostic, Compatible with Most Control Systems and Sensors
• Environmentally Friendly Product Which Reduces Energy Consumption, L70 > 100,000 hours
• Buy America(n) Option Available, Easy to Install Mounting
• Cost Competitive and Short Shipping Lead Times in Days & Weeks

INTRODUCING THE NEW NV-3

• Ideal High Lumen Output for Area, Site, Roadway, and Large Parking Venues such as: Corporate Parks, Shopping Malls, Event & Sports Stadiums, Roadways, and Airports
• Sleek Robust Design of the NV-3 (Weight: 55 lbs., EPA: 0.73) Compliments the NV-1 and NV2
• IES Distributions T2, T3, T4, and T5
• 160L, 192L, and 256L LED Configurations, 403 to 805 Watts
• 2700K, 3000K, 3500K, 4000K, 5000K CCT Multichip High Power 70 & 80 CRI LEDs
• IP66 Rated Against Dust & Water Ingress, IK10 Rated for Tamper/Vandalism/Impact Protection
• Mountings available have a 1.5G to 3G Vibration Rating: Architectural Sweep Arm, Direct Pole 6” and 11” Arm, Knuckle Mount, Wall Mount, Trunnion Mount, and Tennis Arm
• 20kA Surge Protection (120V – 480V), 0 – 10V Programmable, Dimming LED Drivers
• LED Drivers Ambient Temp. Min (°C) is -40°C and Ambient Temp. Max (°C) ranges from 50°C to 55°C
• Silicone Micro Optics providing 96% Clarity and Heat Resistant up to 150°C
• 9 Standard Finishes, Custom and Marine Grade Finish Available
• Controls Agnostic, Compatible with Most Control Systems and Sensors
• Environmentally Friendly Product Which Reduces Energy Consumption, L70 > 100,000 hours
• Buy America(n) Option Available, Easy to Install Mounting
• Cost Competitive and Short Shipping Lead Times in Days & Weeks

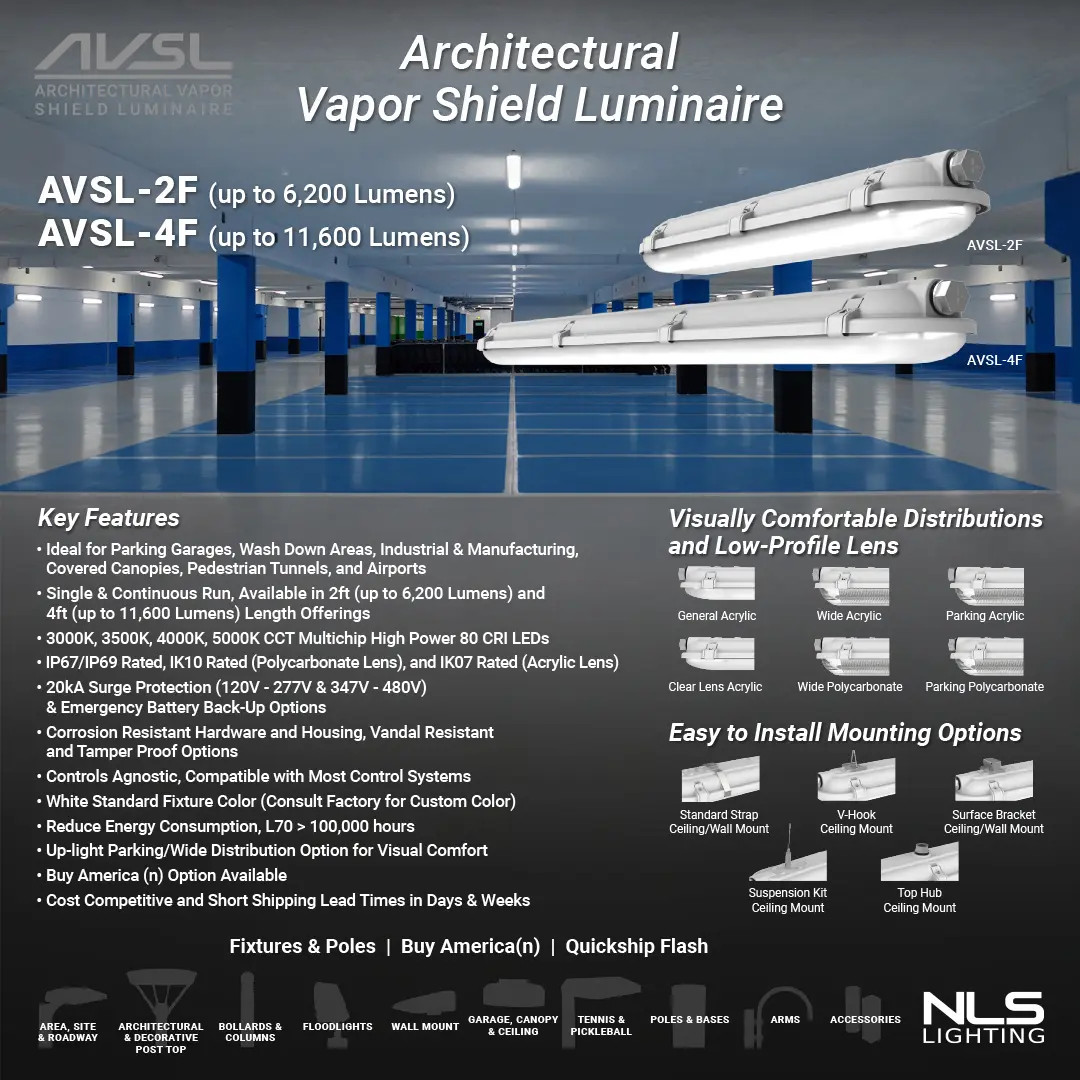

INTRODUCING THE NEW ARCHITECTURAL VAPOR SHIELD LUMINAIRE (AVSL)

The innovative Architectural Vapor Shield Luminaire (AVSL) is a high-powered, non-corrosive, fiberglass reinforced polyester linear ceiling mount fixture ideal for utility lighting comes in 2ft and 4 ft length configurations.

The AVSL comes in two configurations (2F and 4F) with four Kelvin color temperatures 3000K, 3500K, 4000K and 5000K.

Three optical distribution patterns include General Area, Wide Area, and a Parking Garage specific optical distribution pattern. Two types of lenses (Acrylic and Polycarbonate) are available for the Wide and Parking optical distributions

Mounting options include the Standard Stainless Steel Straps, V Hook, Surface Mount Bracket, Suspension Kit, and Top Hub.

Other options include FSP-211B with Motion Sensor, Stainless Steel Latches, Tamper Proof Hardware, Vandal Resistant Hardware, Emergency Battery Backup, 20KA Surge Protector, and Load Control Bypass Relay.

NEW ADDITIONS TO NLS FLOOD FAMILY: NV-F3 & NV-F4

The innovative NV Flood Series is a high-powered, corrosion resistant, low copper, die-cast aluminum luminaire.

Heat-sink cooling fins are designed with a thermal gap for longer LED/Driver life.

The NV-F4 comes in 96L to 128L configurations with 5 Kelvin color temperatures 2700K, 3000K, 3500K, 4000K and 5000K. 4 Static LED color options available for a splash of color. Silicone optical distribution patterns include 15° Very Narrow Beam, 30° Narrow Beam, 55° Medium Beam, 85° Wide beam, 7X5 NEMA T2 Distribution, 7X6 T3 NEMA Distribution, Forward Throw NEMA 6X6 T4, and a Symmetrical NEMA 7X7 T5.

Mounting options include 2 3/8” Knuckle Mount or Trunnion Mount.

Glare control options include the House Side Shield(HSS), Egg Crate Louver Shield(ECL), Barn Doors(BAD), Angled Visor(AGV), Small and Large Snoot(SNS)(SNL).

Other options include Tamper Proof Hardware, 5 Conductor Dimming Leads.

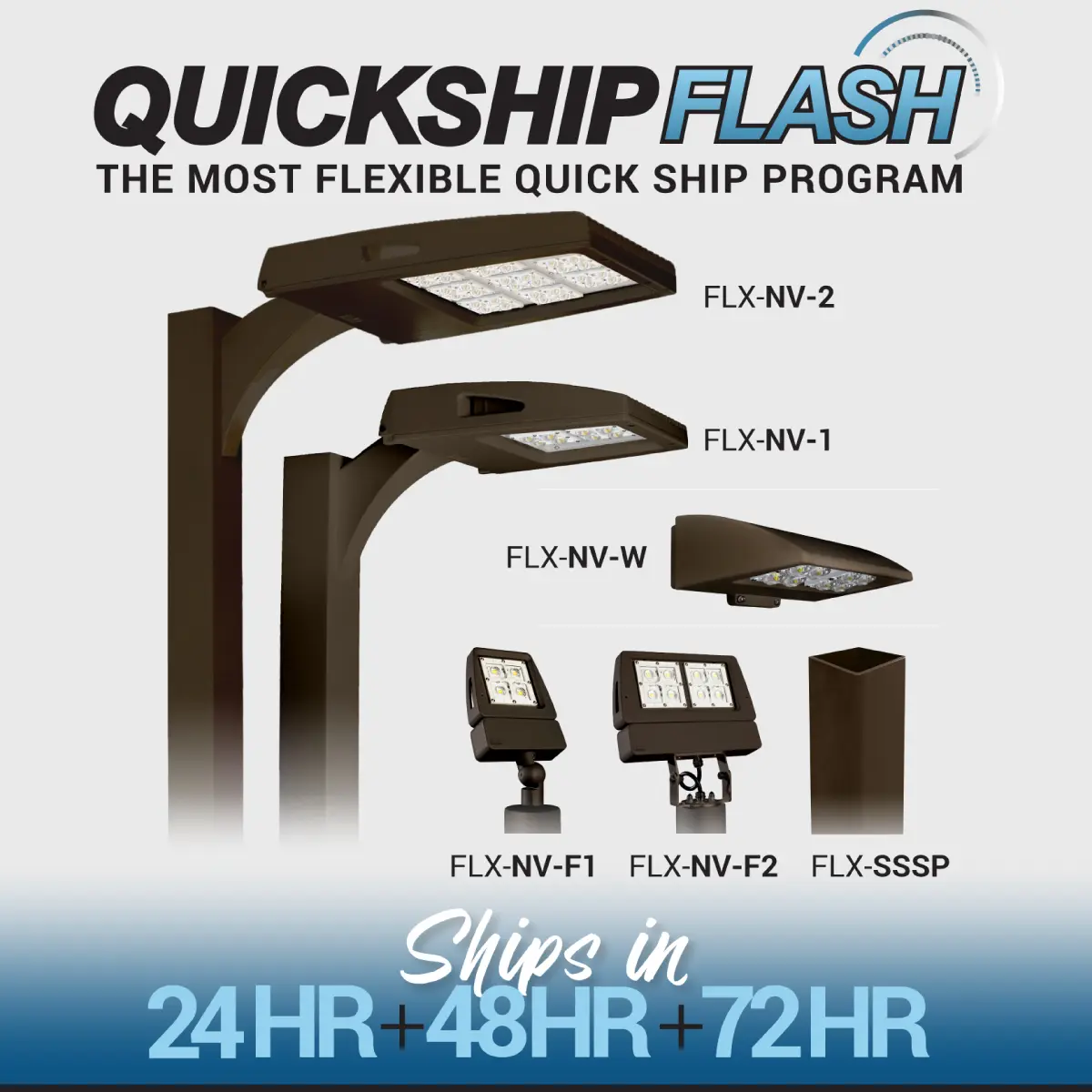

THE MOST FLEXIBLE QUICK SHIP PROGRAM

QUICKSHIP FLASH—Imagine obtaining #American quality, Spec Grade products in a matter of HOURS. Dream of having it shipped out Next Day? Perhaps without expediting fees?
NLS Lighting’s QUICKSHIP FLASH Program offers on-the-shelf products that ship out 24-48 Hours, or request modifications for 72 Hour Turnaround. Now
THAT is a #QuickShip Program!!

TRAC COLLECTION |SLEEK REDESIGNED ARCHITECTURAL FIXTURE WITH OVERALL IMPROVED LUMENS BY 10%

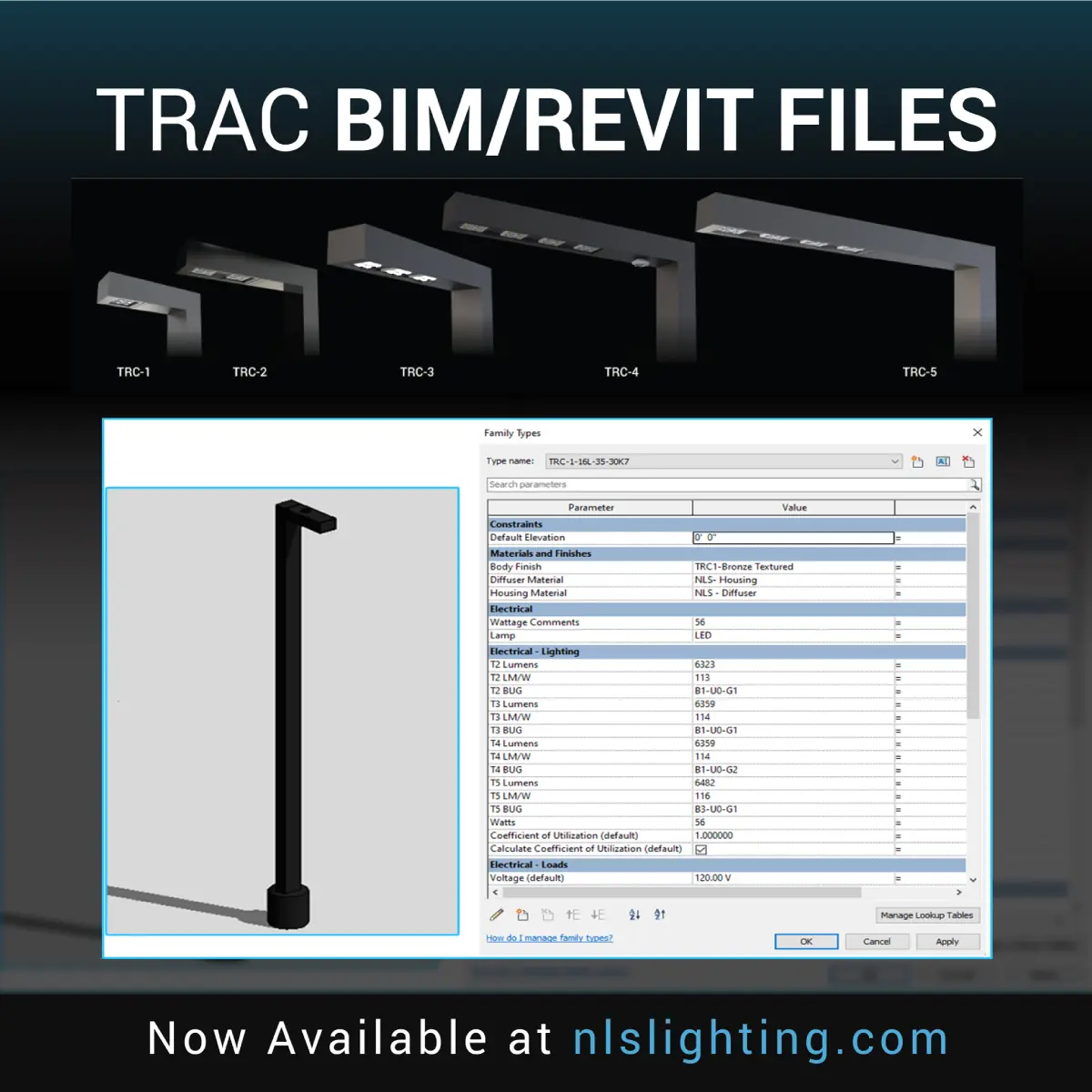

BIM/Revit files for the five different sized TRAC Collection Area luminaires are now available at nislighting.com! You may download files at the product page level under the BIM/Revit Tab, and get started on your next project.
The TRAC Collection of products, designed to meet the stringent desire of architects and specifiers for ultimate design flexibility. Giving ability of architectural design freedom, and the simplistic elegance of the rectilinear form.

HIGH PERFORMANCE FULL CUT OFF WALL PACK

NV-W has increased its offerings, resulting in an improved performance. Obtain higher performing & spec grade quality Wall Packs for your next application!

BUY AMERICA(N) WITH NLS’ SPEC GRADE LIGHTING PRODUCTS FOR YOUR NEXT PROJECT

NLS Lighting supports your efforts to comply with the Buy American Act of 1933 (BAA) specifications.
Download the NLS BAA brochure at nislighting.com/ buy-american to view product list.

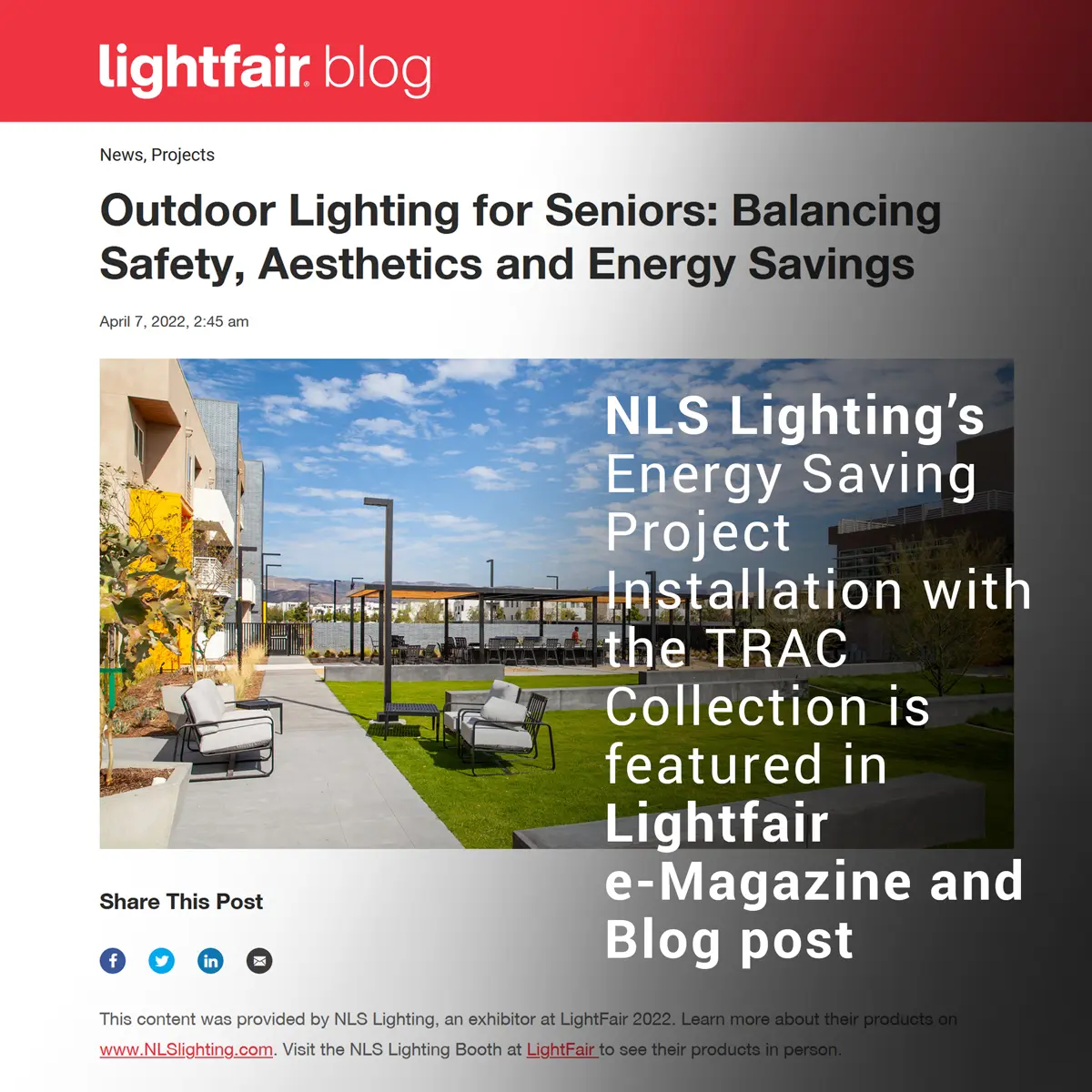

NLS LIGHTING’S ENERGY SAVING PROJECT INSTALLATION

This content was provided by NLS Lighting, an exhibitor at LightFair 2022. Learn more about their products on www.NLSlighting.com. Visit the NLS Lighting Booth at LightFair to see their products in person.

Project Highlights

  • Project name: Montaira Senior Community Development
  • 5.12 acres, 165 units
  • Location: Irvine, CA
  • Year of Completion: 2021
  • Manufacturer: NLS Lighting
  • Type of Installation: (64) TRAC Series Area Lighting Fixtures & Poles
  • Energy Savings: Up to 65%

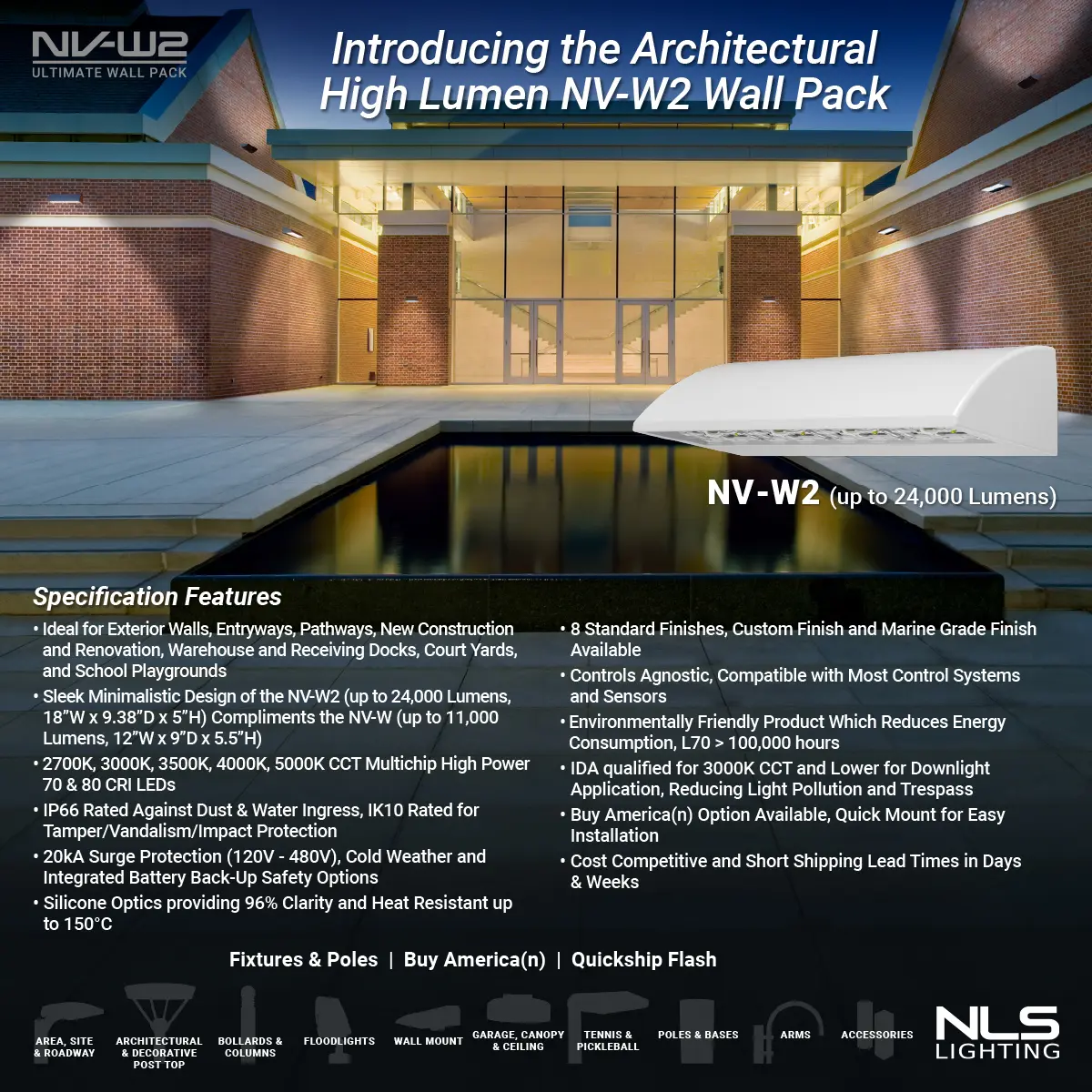

INTRODUCING THE ARCHITECTURAL HIGH LUMEN NV-W2 WALL PACK

Specification Features:

  • Ideal for Exterior Walls, Entryways, Pathways, New Construction and Renovation, Warehouse and Receiving Docks, Court Yards, and Shool Playgrounds.
  • Sleek Minimalistic Design of the NV-W2(up to 24,000 Lumens, 18″W x 9″D x 5.5″H)
  • 2700K, 3000K, 3500K, 4000K, 5000K CCT Multichip High Power  70 & 80 CRI LEDs.
  • IP66 Rated Against Dust & Water Ingress, IK10 Rated for Tamper/Vandalism/Impact  Protection.
  • 20kA Surge Protection (120V – 480V), Cold Weather and Integrated Battery Back-Up safety options.

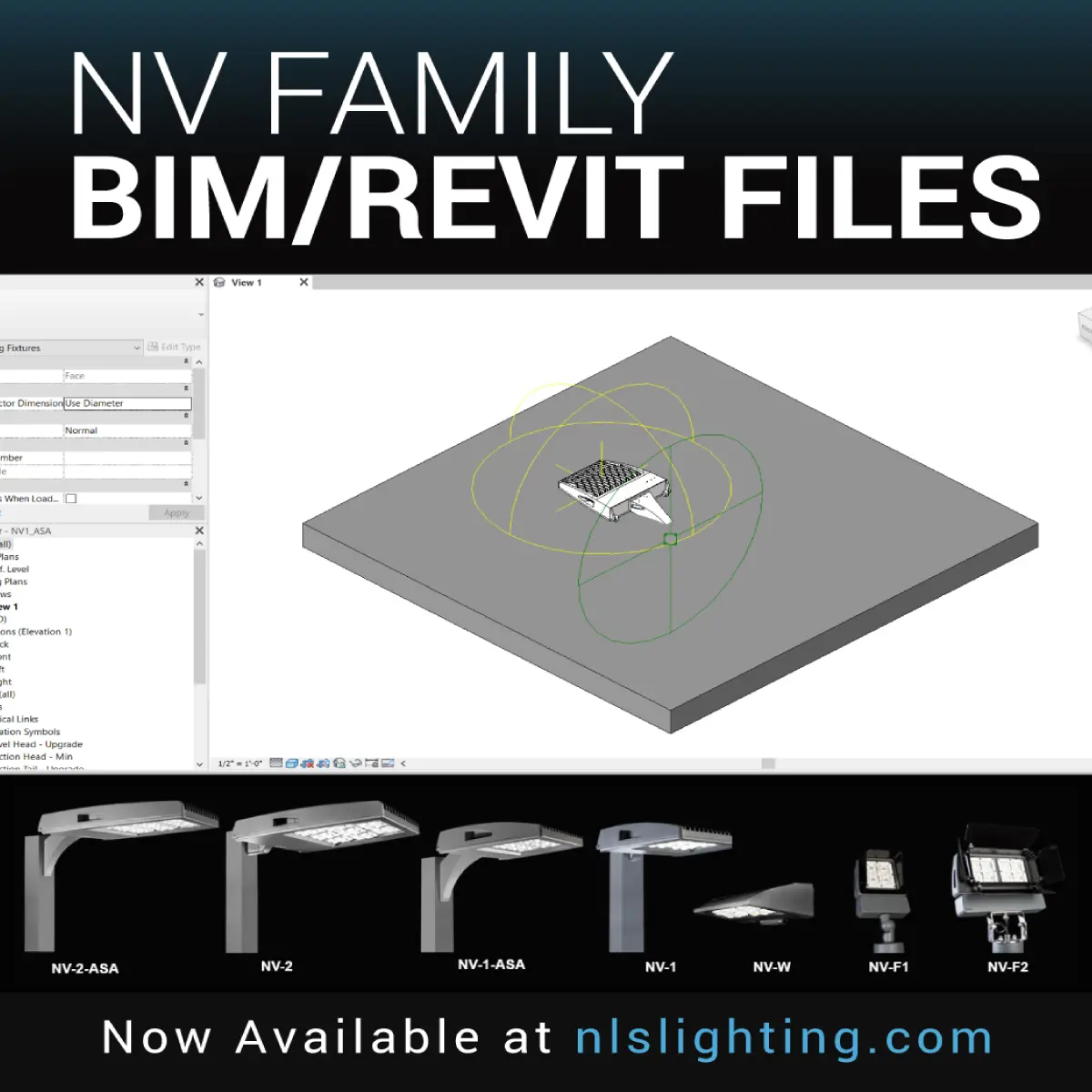

NV FAMILY BIM/REVIT FILES

NV Family Lighting Products BIM/Revit files are now available for following products:

  • NV-2-ASA
  • NV-2
  • NV-1-ASA
  • NV-1
  • NV-W
  • NV-F1
  • NV-F2

NLS POLE OFFERINGS EPA VALUES FOR WINDSPEED 80-180 MPH

Spec your next project with our competitive priced poles using short lead times in days & weeks!

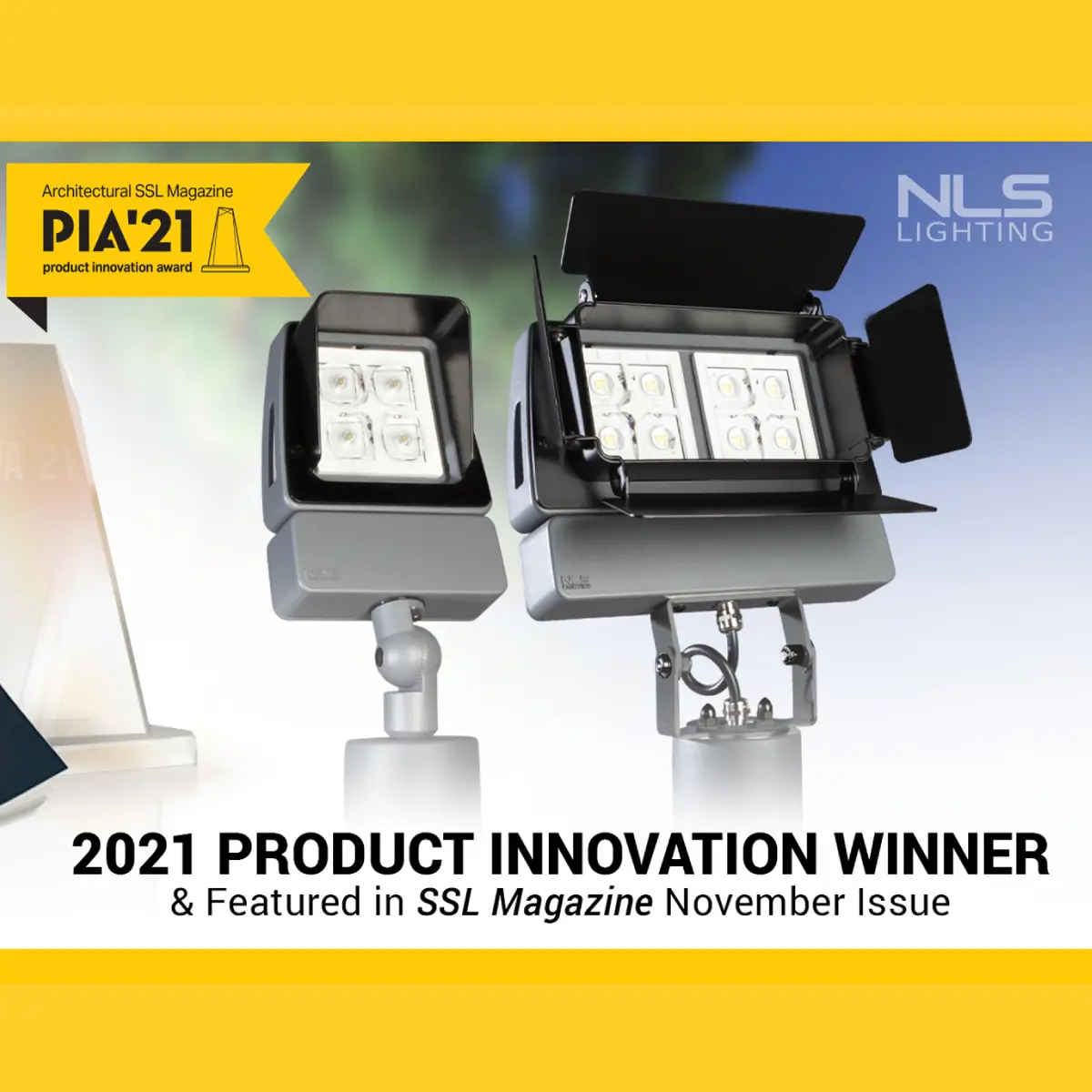

PRODUCT  INNOVATION WINNER & FEATURED IN SSL MAGAZINE

NLS Lighting, LLC is bringing modernization to your doorstep with the “ultimate flood”, the NV-F Series.

A winner of the 2021 PIA Award for product innovation, this architectural flood light series is high-powered and engineered for optimum thermal management, while boasting corrosion resistant hardware and a 30 year lighting solution.

SLEEK REDESIGNED ARCHITECTURAL FIXTURE | TRAC COLLECTION

NLS Lighting’s TRAC Architectural Area Fixture, where modern contemporary design meets precision engineering, creating a bold, sleek family of luminaires.
