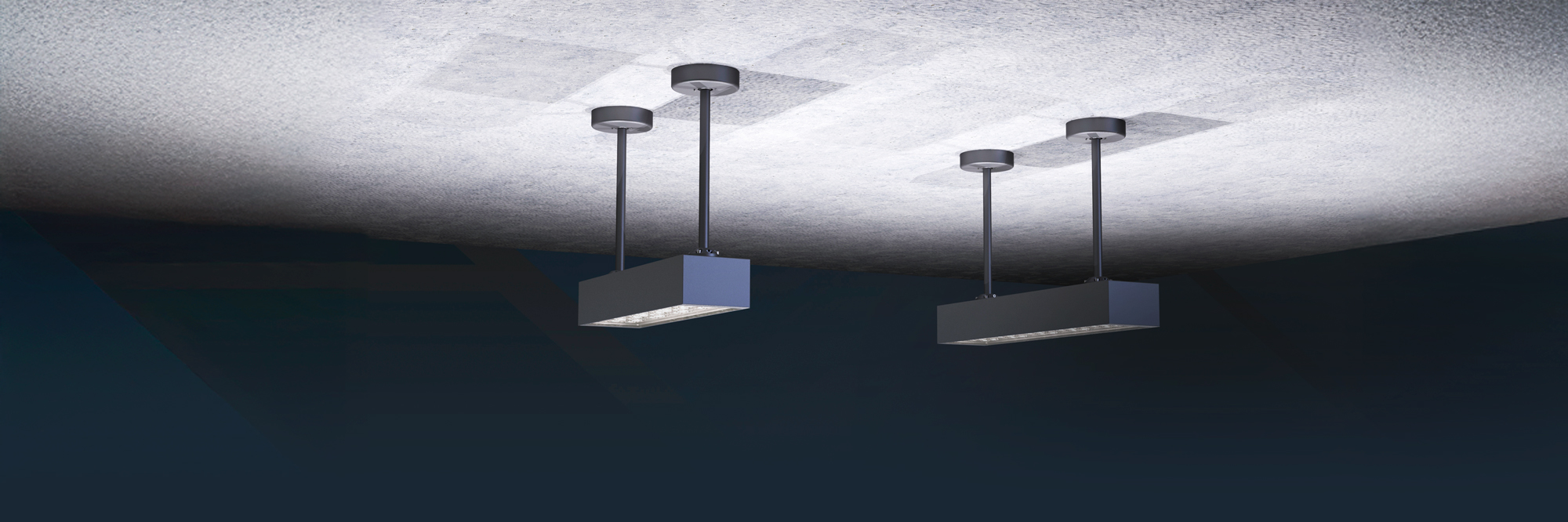

TRCL_PendantMount_01

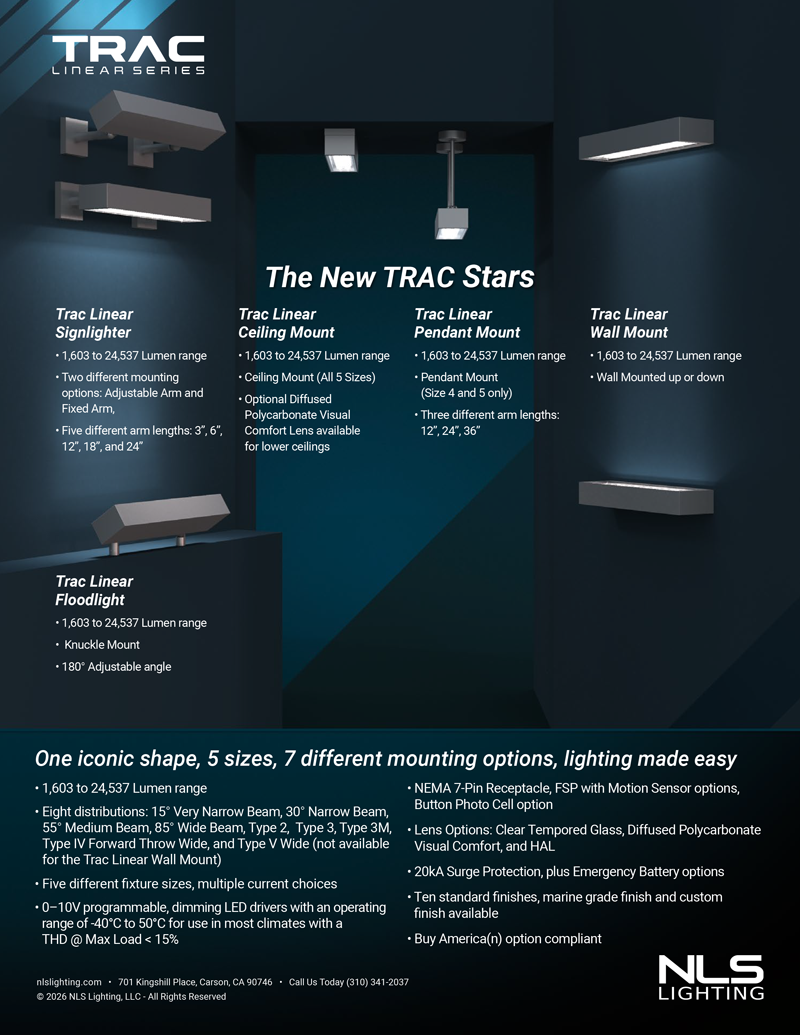

Related marketing material is available for download or by request for delivery. Standard shipping is 5-7 business days via UPS Ground. For expedited delivery, please contact factory. Click HERE to order literature.

Click on image to download!

Name

Size

Modified

Ascending

Descending

Select all

Deselect all

Download folder

Download selected

Thumbnails view

List view

No options...

TRC - LPM Wattage

Order	Milliamps	16L	32L	48L	64L
1	400mA	21w (2,478-2,911 Lumens)	-	-	-
2	530mA	28w (3,508-3,776 Lumens)	-	-	-
3	700mA	36w (4,385-4,720 Lumens)	71W (8,770-9,439 Lumens)	104w (8,770-9,439 Lumens)	136w (17,539-18,897 Lumens)
4	1050mA	56w (6,022-6,482 Lumens)	106w (11,797-12,698 Lumens)	156w (17,360-18,686 Lumens)	205w (22,627-24,355 Lumens)

Generated by wpDataTables

TRC-LPM-4 Lumens

ORDER	Model	15°	15° LM/W	30°	30° LM/W	55°	55° LM/W	85°	85° LM/W	T2	T2 LM/W	T3	T3 LM/W	T4FTW	LM/W	T5W	T5W LM/W	WATTAGE
1	TRC-LPM-4-64L-35-27K7	9,139	134	8,511	125	8,568	126	8,593	126	7,940	117	7,768	114	7,026	103	7,311	108	68
2	TRC-LPM-4-64L-35-27K8	8,519	125	7,933	117	7,987	117	8,010	118	7,401	109	7,241	106	6,549	96	6,815	100	68
3	TRC-LPM-4-64L-35-30K7	10,608	156	9,879	145	9,945	146	9,974	147	9,216	136	9,017	133	8,155	120	8,486	125	68
4	TRC-LPM-4-64L-35-30K8	9,194	135	8,562	126	8,619	127	8,644	127	7,987	117	7,815	115	7,068	104	7,355	108	68
5	TRC-LPM-4-64L-35-35K8	9,226	136	8,592	126	8,650	127	8,675	128	8,015	118	7,842	115	7,093	104	7,381	109	68
6	TRC-LPM-4-64L-35-40K7	10,880	160	10,132	149	10,200	150	10,230	150	9,452	139	9,248	136	8,364	123	8,704	128	68
7	TRC-LPM-4-64L-35-40K8	9,792	144	9,119	134	9,180	135	9,207	135	8,507	125	8,323	122	7,528	111	7,834	115	68
8	TRC-LPM-4-64L-35-50K7	10,880	160	10,132	149	10,200	150	10,230	150	9,452	139	9,248	136	8,364	123	8,704	128	68
9	TRC-LPM-4-64L-35-50K8	9,792	144	9,119	134	9,180	135	9,207	135	8,507	125	8,323	122	7,528	111	7,834	115	68
10	TRC-LPM-4-64L-53-27K7	12,978	126	12,026	117	12,113	118	12,142	118	11,161	108	10,902	106	9,777	95	10,209	99	103
11	TRC-LPM-4-64L-53-27K8	12,097	117	11,210	109	11,291	110	11,318	110	10,404	101	10,162	99	9,113	88	9,517	92	103
12	TRC-LPM-4-64L-53-30K7	15,064	146	13,959	136	14,060	137	14,094	137	12,955	126	12,654	123	11,348	110	11,850	115	103
13	TRC-LPM-4-64L-53-30K8	13,055	127	12,098	117	12,185	118	12,214	119	11,228	109	10,966	106	9,835	95	10,270	100	103
14	TRC-LPM-4-64L-53-35K8	13,102	127	12,141	118	12,228	119	12,258	119	11,267	109	11,005	107	9,870	96	10,307	100	103
15	TRC-LPM-4-64L-53-40K7	15,450	150	14,317	139	14,420	140	14,455	140	13,287	129	12,978	126	11,639	113	12,154	118	103
16	TRC-LPM-4-64L-53-40K8	13,905	135	12,885	125	12,978	126	13,010	126	11,958	116	11,680	113	10,475	102	10,939	106	103
17	TRC-LPM-4-64L-53-50K7	15,450	150	14,317	139	14,420	140	14,455	140	13,287	129	12,978	126	11,639	113	12,154	118	103
18	TRC-LPM-4-64L-53-50K8	13,905	135	12,885	125	12,978	126	13,010	126	11,958	116	11,680	113	10,475	102	10,939	106	103
19	TRC-LPM-4-64L-7-27K7	16,115	118	14,787	109	14,900	110	14,907	110	13,591	100	13,198	97	11,747	86	12,320	91	136
20	TRC-LPM-4-64L-7-27K8	15,021	110	13,783	101	13,889	102	13,895	102	12,669	93	12,302	90	10,950	81	11,484	84	136
21	TRC-LPM-4-64L-7-30K7	18,704	138	17,163	126	17,295	127	17,302	127	15,776	116	15,319	113	13,635	100	14,300	105	136
22	TRC-LPM-4-64L-7-30K8	16,210	119	14,875	109	14,989	110	14,995	110	13,672	101	13,277	98	11,817	87	12,394	91	136
23	TRC-LPM-4-64L-7-35K8	16,268	120	14,927	110	15,042	111	15,049	111	13,721	101	13,324	98	11,859	87	12,438	91	136
24	TRC-LPM-4-64L-7-40K7	19,184	141	17,603	129	17,738	130	17,746	130	16,180	119	15,712	116	13,985	103	14,667	108	136
25	TRC-LPM-4-64L-7-40K8	17,266	127	15,843	116	15,964	117	15,971	117	14,562	107	14,141	104	12,587	93	13,200	97	136
26	TRC-LPM-4-64L-7-50K7	19,184	141	17,603	129	17,738	130	17,746	130	16,180	119	15,712	116	13,985	103	14,667	108	136
27	TRC-LPM-4-64L-7-50K8	17,266	127	15,843	116	15,964	117	15,971	117	14,562	107	14,141	104	12,587	93	13,200	97	136

Generated by wpDataTables

TRC-LPM-5 Lumens

ORDER	Model	15°	15° LM/W	30°	30° LM/W	55°	55° LM/W	85°	85° LM/W	T2	T2 LM/W	T3	T3 LM/W	T4FTW	LM/W	T5W	T5W LM/W	WATTAGE
1	TRC-LPM-5-80L-35-27K7	11,495	135	10,781	127	11,067	130	11,101	131	10,282	121	10,424	123	9,282	109	9,996	118	85
2	TRC-LPM-5-80L-35-27K8	10,715	126	10,050	118	10,316	121	10,347	122	9,584	113	9,717	114	8,652	102	9,318	110	85
3	TRC-LPM-5-80L-35-30K7	13,343	157	12,514	147	12,846	151	12,885	152	11,934	140	12,100	142	10,774	127	11,603	137	85
4	TRC-LPM-5-80L-35-30K8	11,564	136	10,846	128	11,133	131	11,167	131	10,343	122	10,486	123	9,337	110	10,056	118	85
5	TRC-LPM-5-80L-35-35K8	11,605	137	10,884	128	11,172	131	11,206	132	10,380	122	10,524	124	9,370	110	10,091	119	85
6	TRC-LPM-5-80L-35-40K7	13,685	161	12,835	151	13,175	155	13,215	155	12,240	144	12,410	146	11,050	130	11,900	140	85
7	TRC-LPM-5-80L-35-40K8	12,317	145	11,552	136	11,858	140	11,894	140	11,016	130	11,169	131	9,945	117	10,710	126	85
8	TRC-LPM-5-80L-35-50K7	13,685	161	12,835	151	13,175	155	13,215	155	12,240	144	12,410	146	11,050	130	11,900	140	85
9	TRC-LPM-5-80L-35-50K8	12,317	145	11,552	136	11,858	140	11,894	140	11,016	130	11,169	131	9,945	117	10,710	126	85
10	TRC-LPM-5-80L-53-27K7	16,666	130	15,160	118	15,590	122	15,641	122	14,408	113	14,623	114	12,902	101	13,978	109	128
11	TRC-LPM-5-80L-53-27K8	15,535	121	14,132	110	14,532	114	14,579	114	13,430	105	13,630	106	12,027	94	13,029	102	128
12	TRC-LPM-5-80L-53-30K7	19,344	151	17,597	137	18,096	141	18,155	142	16,723	131	16,973	133	14,976	117	16,224	127	128
13	TRC-LPM-5-80L-53-30K8	16,765	131	15,251	119	15,683	123	15,734	123	14,493	113	14,710	115	12,979	101	14,061	110	128
14	TRC-LPM-5-80L-53-35K8	16,824	131	15,305	120	15,739	123	15,790	123	14,545	114	14,762	115	13,025	102	14,111	110	128
15	TRC-LPM-5-80L-53-40K7	19,840	155	18,048	141	18,560	145	18,620	145	17,152	134	17,408	136	15,360	120	16,640	130	128
16	TRC-LPM-5-80L-53-40K8	17,856	140	16,243	127	16,704	131	16,758	131	15,437	121	15,667	122	13,824	108	14,976	117	128
17	TRC-LPM-5-80L-53-50K7	19,840	155	18,048	141	18,560	145	18,620	145	17,152	134	17,408	136	15,360	120	16,640	130	128
18	TRC-LPM-5-80L-53-50K8	17,856	140	16,243	127	16,704	131	16,758	131	15,437	121	15,667	122	13,824	108	14,976	117	128
19	TRC-LPM-5-80L-7-27K7	20,611	122	18,530	110	19,128	113	19,216	114	17,667	105	17,889	106	15,626	92	17,026	101	169
20	TRC-LPM-5-80L-7-27K8	19,212	114	17,273	102	17,830	106	17,912	106	16,468	97	16,675	99	14,565	86	15,871	94	169
21	TRC-LPM-5-80L-7-30K7	23,924	142	21,509	127	22,202	131	22,304	132	20,506	121	20,764	123	18,137	107	19,762	117	169
22	TRC-LPM-5-80L-7-30K8	20,734	123	18,641	110	19,241	114	19,330	114	17,772	105	17,995	106	15,719	93	17,127	101	169
23	TRC-LPM-5-80L-7-35K8	20,807	123	18,707	111	19,310	114	19,399	115	17,835	106	18,059	107	15,774	93	17,188	102	169
24	TRC-LPM-5-80L-7-40K7	24,537	145	22,060	131	22,771	135	22,876	135	21,032	124	21,296	126	18,602	110	20,269	120	169
25	TRC-LPM-5-80L-7-40K8	22,083	131	19,854	117	20,494	121	20,588	122	18,929	112	19,166	113	16,742	99	18,242	108	169
26	TRC-LPM-5-80L-7-50K7	24,537	145	22,060	131	22,771	135	22,876	135	21,032	124	21,296	126	18,602	110	20,269	120	169
27	TRC-LPM-5-80L-7-50K8	22,083	131	19,854	117	20,494	121	20,588	122	18,929	112	19,166	113	16,742	99	18,242	108	169

Generated by wpDataTables

Download WHY SILICONE OPTICS? Brochure to Learn more!

Form
• Elegant Rectilinear Extruded Aluminum Housing
• Corrosion Resistant Stainless Steel External Hardware
• Sleek, Low Profile Housing
• Spec Grade Performance
• Engineered For Optimum Thermal Management
• 10 Architectural Finishes Standard, RAL Colors Available

Function
• Micro Optics IES Distributions 15°, 30°,55°, 85°, T2, T3, T4FTW, T5W
• 0-10V Dimming Drivers THD @ Max Load < 15% Power factor @ Max Load < 0.95
• Amber, 2700K, 3000K, 3500K, 4000K, or 5000K
• 16L, 32L, 48L, or 64L LED
• 21-205 Watts
• CRI 70, 80, or 90
• Extruded Aluminum Heat Sink
• 5 Mils Powder Coat
• Aluminum Pole .250 Wall

Reliability
• Silicone Micro Optics
• 5 Year Standard Warranty
• IP67 Optics
• Reduces Energy Consumption And Costs Up To 65%
