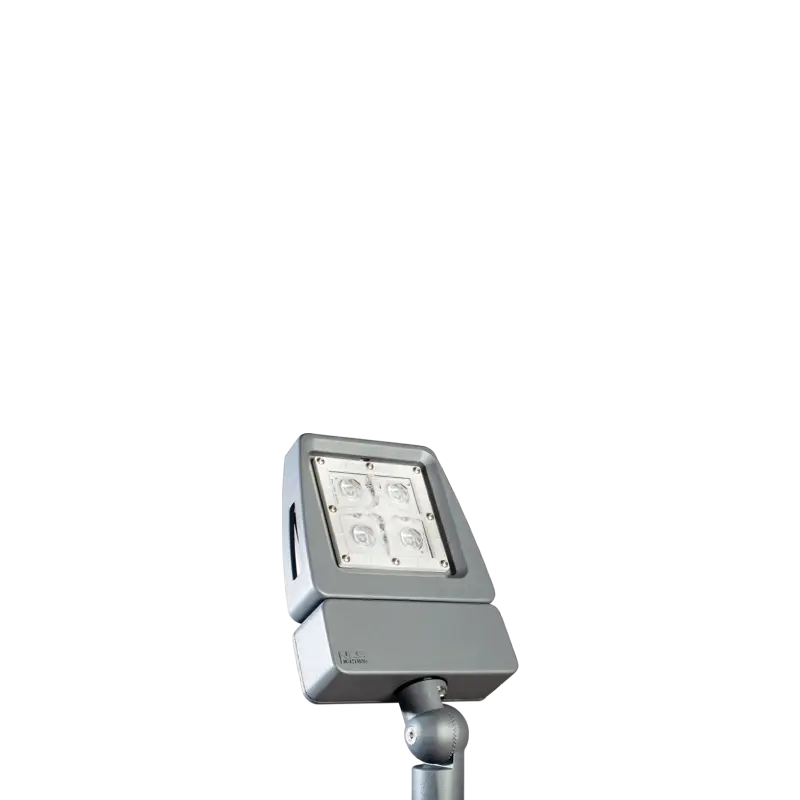

NV-F1

Lumens: 2,160 – 6,030
Kelvin: 27K8, 30K7, 35K8, 40K7, 50K7
Wattage: 20 – 45
Category: Floodlights
Product Family: NV

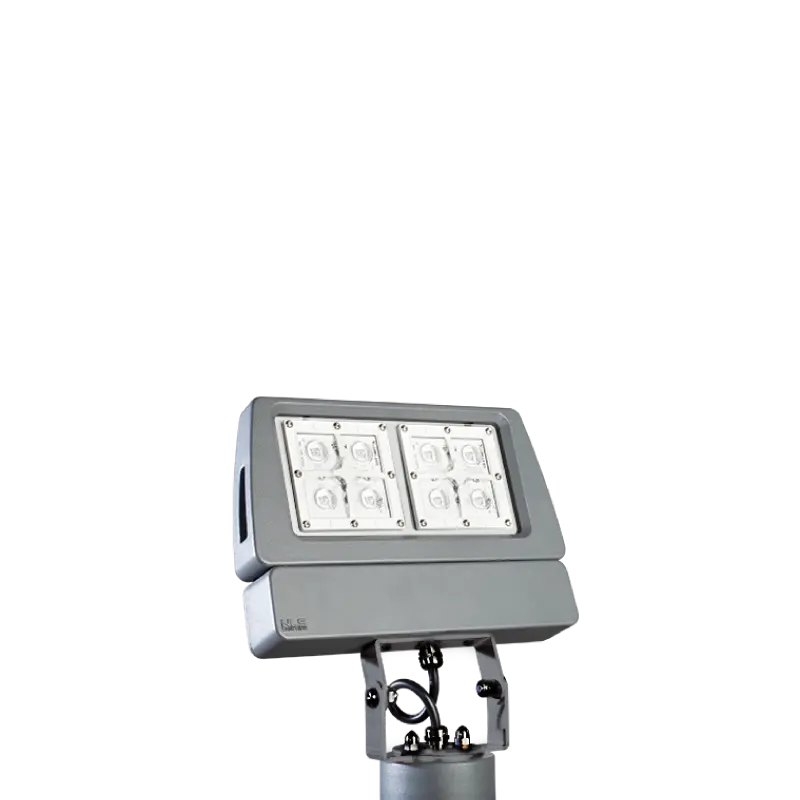

NV-F2

Lumens: 5,400 – 10,720
Kelvin: 27K8, 30K7, 30K8, 35K8, 40K7, 40K8, 50K7, 50K8
Wattage: 50 – 80
Category: Floodlights
Product Family: NV

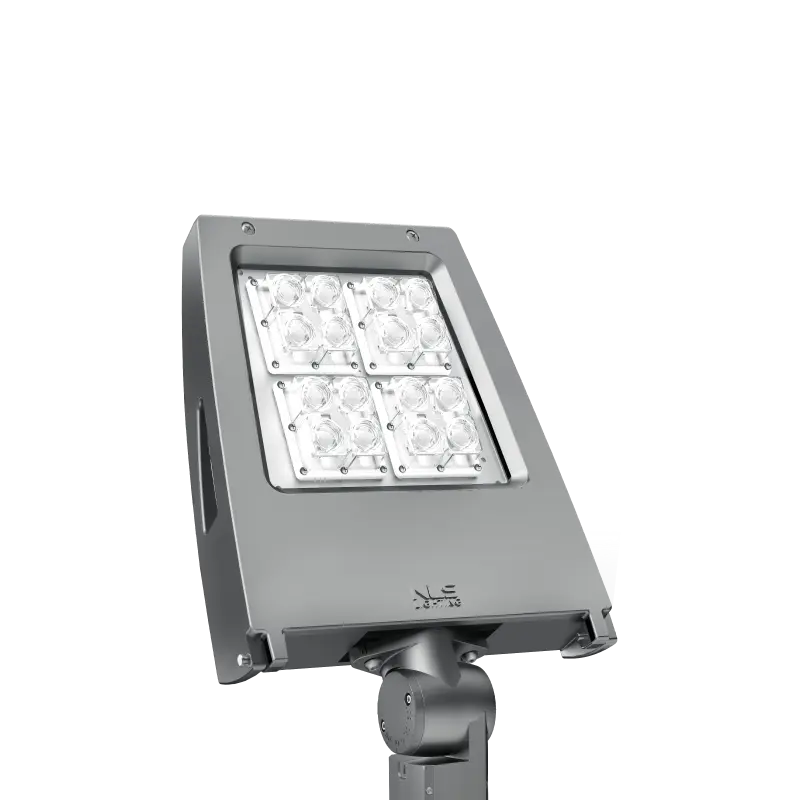

NV-F3

Lumens: 9,125 – 26,275
Kelvin: 27K8, 30K7, 30K8, 35K8, 40K7, 40K8, 50K7, 50K8
Wattage: 104 – 205
Category: Floodlights
Product Family: NV

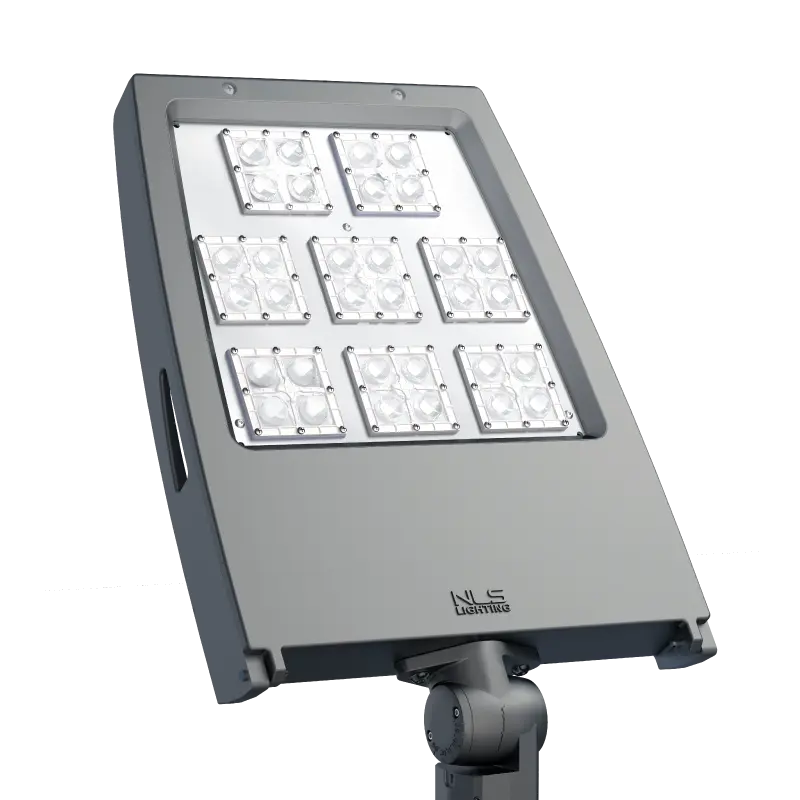

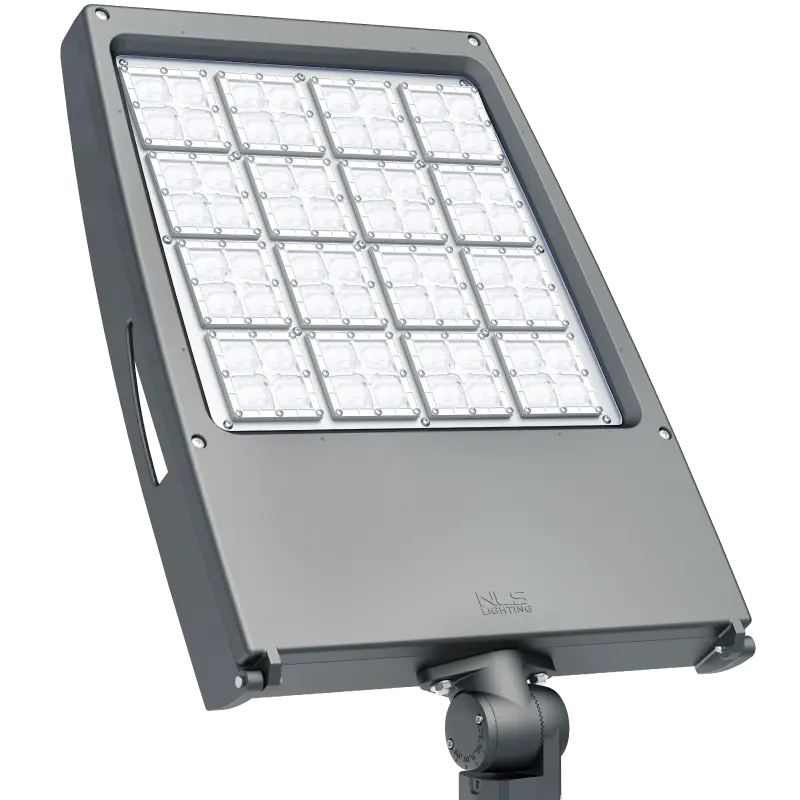

NV-F4

Lumens: 19,465 – 50,781
Kelvin: 27K8, 30K7, 30K8, 35K8, 40K7, 40K8, 50K7, 50K8
Wattage: 200 – 409
Category: Floodlights
Product Family: NV

FORM

• Sleek, Die-Cast Low Profile Housing
• Specification Grade Performance
• Engineered for Optimum Thermal Management
• Corrosion Resistant External Hardware

The innovative NV-Flood is a high-powered, corrosion resistant, low copper, die-cast aluminum luminaire. Thermal management is handled with a separate driver housing and LED light engine heat sink. Heat-sink cooling fins are designed with a thermal gap for longer LED/Driver life.

FUNCTION

• Die-Cast Housing and Heat Sink
• Driver Separate from Light Engine for Superior Thermal Management
• Micro Optics Flood Distributions 15°, 30°, 55°, 85°, NEMA 7Hx5V, NEMA 7Hx6V, Forward Throw Beam, & Symmetrical Beam
• 20-409 Watts
• 2700K-5000K Multichip High Power 70 CRI & 80 CRI LEDs

• Static Color Options: Red (624-634nm), Green (520-540nm), Blue (440-460nm), PC Amber (585-600nm)
• Visual Comfort Glare Control Accessories
• IK10, IP66 & 200°C Rated Optics
• 20kA Surge Protection (120V – 277V & 347V – 480V)
• Controls Agnostic
• Knuckle and Trunnion Mounting Options
• 3-5 mils Powder Coat





RELIABILITY

• Silicone Micro Optics
• IP65 Rated for any direction or angle of Flood Lighting
• IP66 Rated for any direction or angle of Flood Lighting
• IP67 Rated Optics
• IK10 Rated Optics
• 3G Vibration Rated

The NV-Flood is a robust, low copper, die-cast product designed to last. Rated IK10, IP65, IP66 and IP67 creating a rock solid lighting platform. *View Spec Sheets for details.

The NV-Flood broke the mold on flood lighting design, creating a massive lumen package in a product that will fit in your back pocket. Power, efficacy and a pint sized footprint – the NV-Flood will be dependable for many years to come.

From the hottest deserts and harshest winters to the fiercest weed-wacker, the NV-Flood will prevail!



DESIGN

• NV Product Family Design DNA
• A Family of Products including Area Lights, Pedestrian scale, Wall Packs, Bollards and Flood Lights
• Design Flexibility
8 – Kelvin Temperatures
4 – Vibrant Color LEDs (Red, Green, Blue, Amber)
15 – Mounting Brackets & Accessories
16 to 128 LEDs (NV-F1, NV-F2, NV-F3, NV-F4)

The sleek styling of the NV-Flood comes from the successful NV Family of fixtures from NLS Lighting. From multiple sizes of Area Lighting fixtures to wall mounts, and more the NV Family continues to grow. Designed to complement any job site, for security applications to wall washes, the NV-Flood can be used almost anywhere. Four static color options and 5 Kelvin temperatures can be used to create stunning visuals. The NV-Flood is ultimate design freedom.

PERFORMANCE

• 2,000 to 51,000 Lumens
• Excellent Thermal Management Properties
• Low Wattage – High Output
• 8 Precision Flood Lighting Optics
• 6 Glare Control Options for Maximum Design Flexibility

Excellence in Photometric Performance, specifically targeting Flood Lighting applications.

Applications Include:

• Sign Lighting
• Building Facades
• Landscape
• Wall Washing
• Up Lighting
• Security Lighting:
          – Residential
          – Commercial

• Parking
• Flag Pole
• Merchandising
• Billboard
• Indirect Lighting
• Display Pad
• Transportation

IP67 Rated for any direction or angle of Flood Lighting.

5 Different color temperatures available as standard. Options range from Very Warm to Cool White. Different color temperatures make your projects stand out. Design red brick facades with 3000 Kelvin to enrich color and highlight texture.



flood

Adding a glow of color to any application can create a powerful atmosphere. Enhance your project. Common applications include: buildings, bridges, structures, branding, decorative landscaping and plazas.



  • 624-634nm (Red)
  • 520-540nm (Green)
  • 440-460nm (Royal Blue)
  • 585-600nm (PC Amber)
flood_ray

Featured Video

Certifications

Related Products

NVF1

NV-F1

NVF2

NV-F2

NVF3

NV-F3

NVF4

NV-F4

NV-F2-ultimate-flood

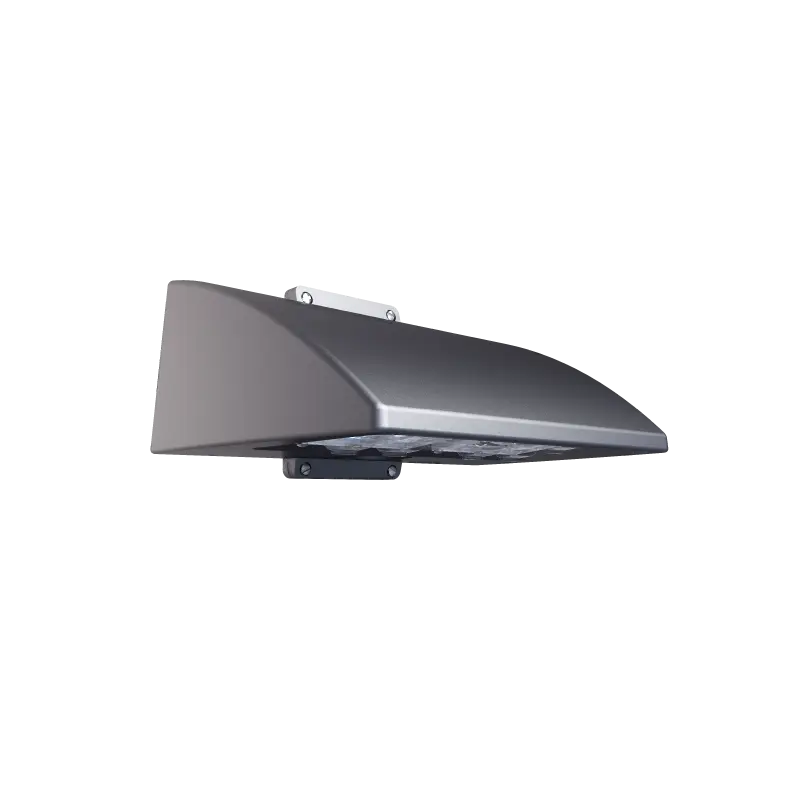

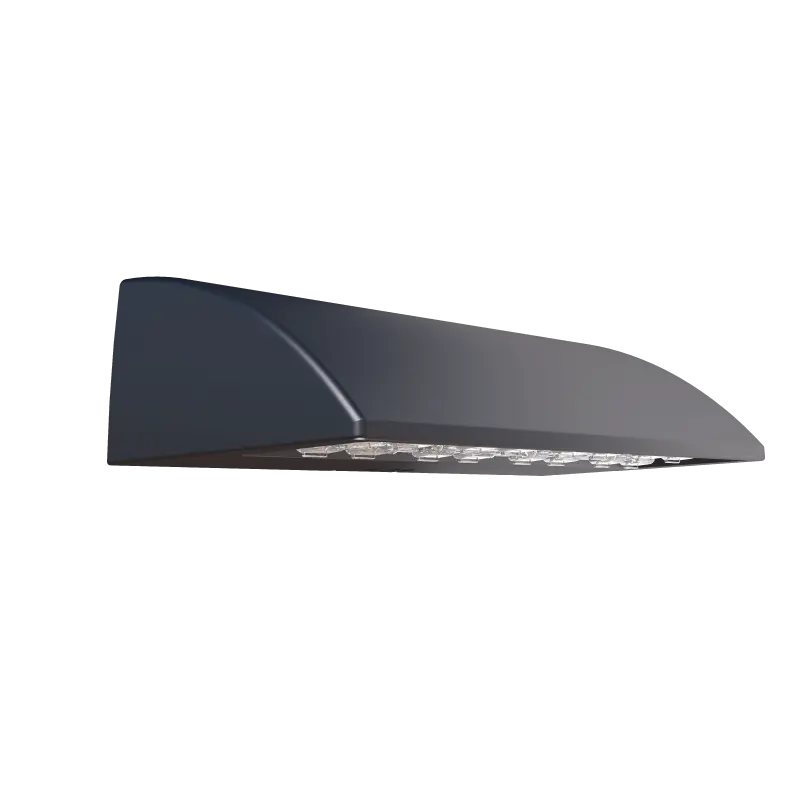

NV-W

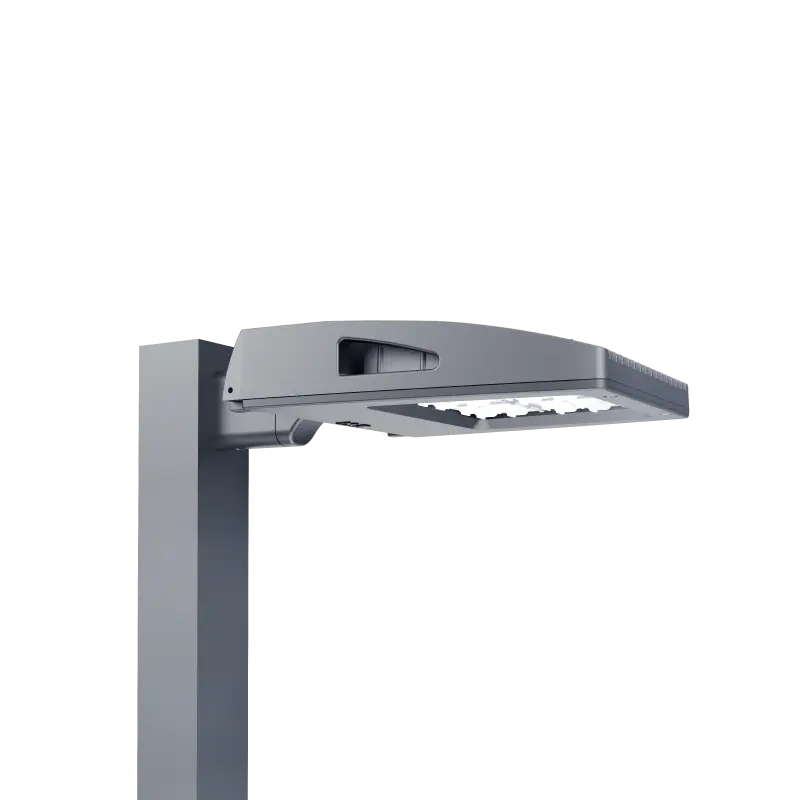

NV-1

NV-1

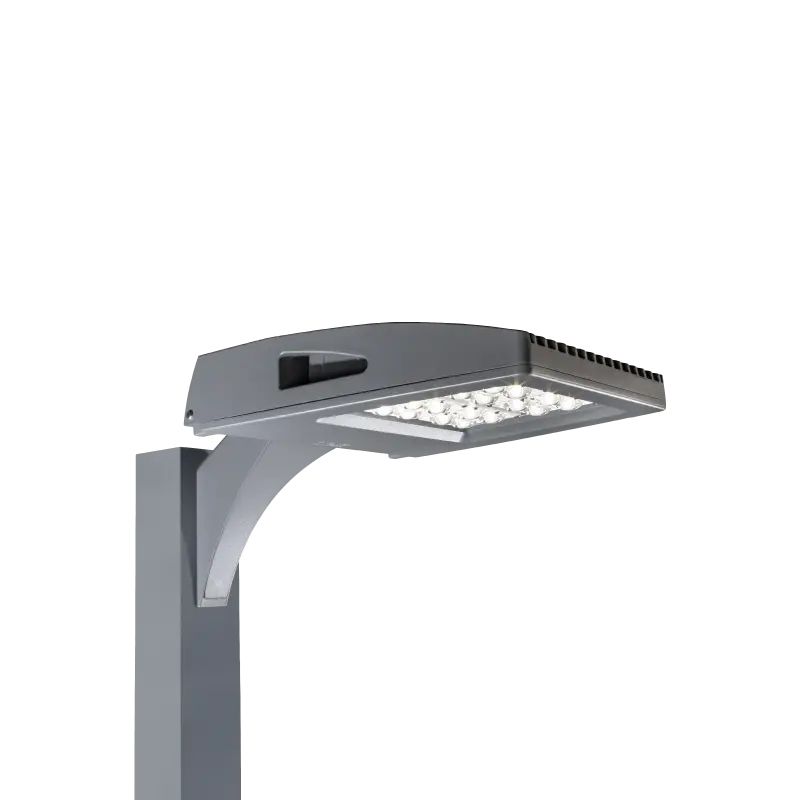

NV-1-ASA

NV-1-ASA

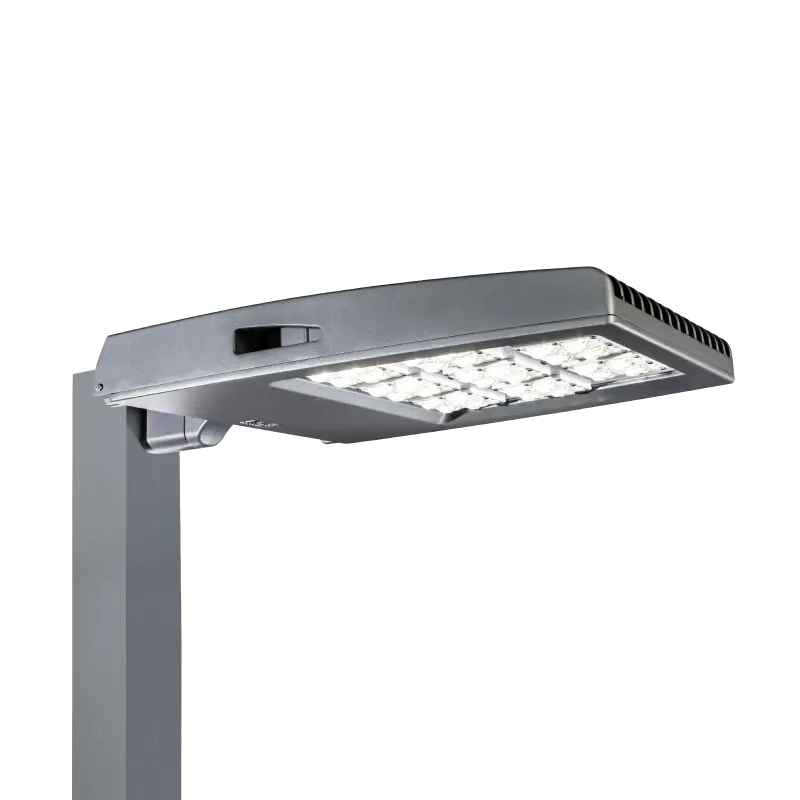

NV-2

NV-2

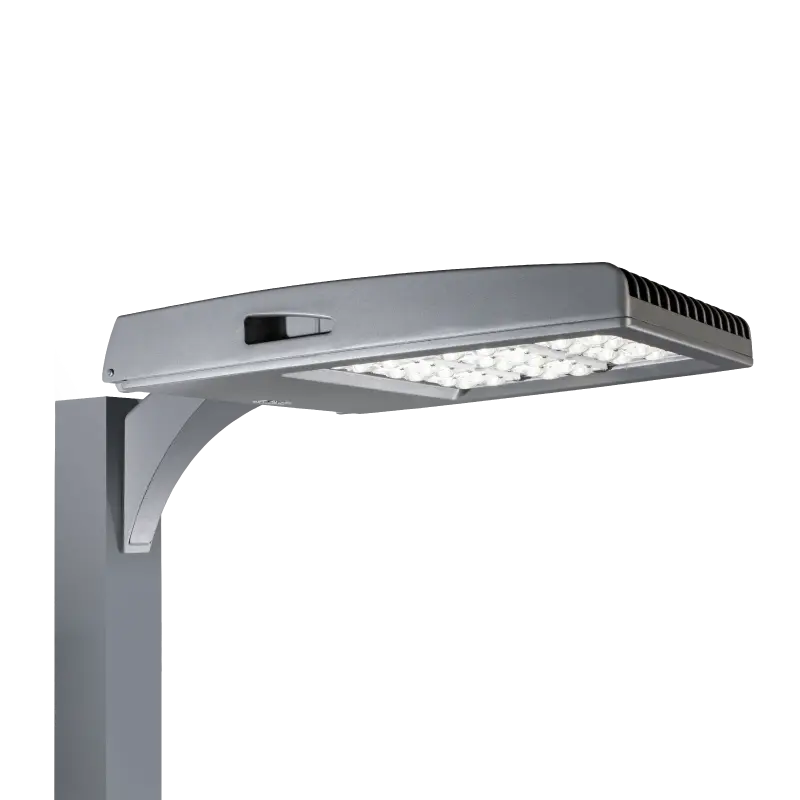

NV-2-ASA
