KLIP

Type V Wide

KLIP

Type IV Forward Throw

The Lasting LED Lighting Solution

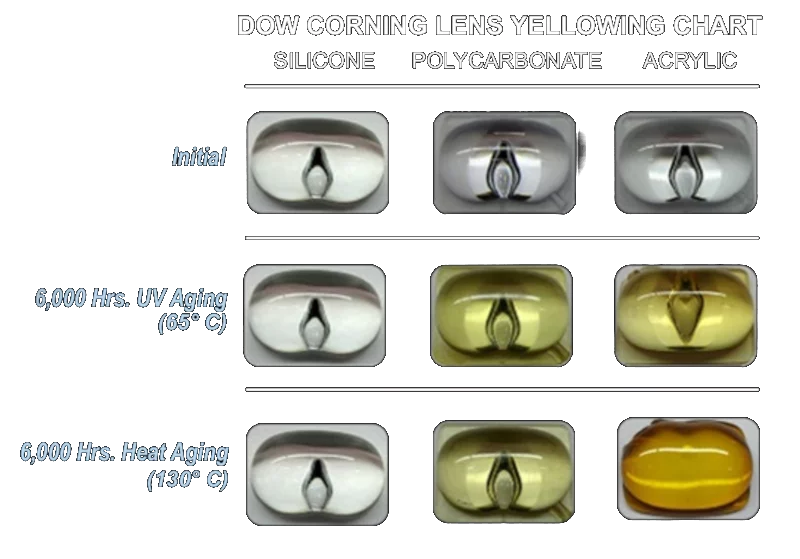

NLS Lighting Micro Silicone Optics technology elevates quality and performance to an unparalleled level. Competitor’s acrylic and polycarbonate lenses yellow or chalk over time. Micro Silicone Optics maintain their clarity. This prevents light blockage in the optic chamber, reducing excessive heat buildup that can lead to accelerated, unpredictable light depreciation. The result is consistent light levels and a longer lifespan for the installation. Vandal-resistant and offering superior clarity, Micro Silicone Optics have become the most durable and reliable solution in the industry

Benefits of Silicone Optics

• Proprietary silicone optic designs provide superior
coverage and uniformity in IES Distributions for the
most demanding lighting applications

• Produces superior 96% clarity to reduce light loss for
improved efficacy

• Heat resistant to 150° C, 50% higher than acrylic

• Ecologically friendly

• Vandal-resistant, IK10 compliant

• Does not brittle, crack, or yellow over time

• Complies with IP67 standards at the optic level

Do More With Less

• NLS Performance Micro Silicone Optics

New Construction: Saves tens-to-hundreds of thousands of dollars in upfront project costs

Performance Silicone Optics save end users thousands in material and installation costs by reducing the number of poles and fixtures by an average of 15%. Efficient and precise Performance Silicone Optics materially improve pole spacing without sacrificing light levels.

• Retrofit: Saves tens-to-hundreds of thousands of dollars in project life cycle energy

Performance Silicone Optics provide substantial energy savings while markedly out performing industry benchmarks for light output depreciation and illumination quality.

• Performance Plus Solution

Light Pattern Optimization + Lumen Maintenance Longevity + High Efficacy + Visual Comfort

Performance Plus solutions combine Performance Micro Silicone Optics with maximum LED count at lower drive currents. This strategy enhances luminaire efficiency, visual comfort, and the reduced maintenance costs already associated with NLS’s Performance Micro Silicone Optics. It can also deliver an additional 20% in savings for both new construction and retrofit projects.

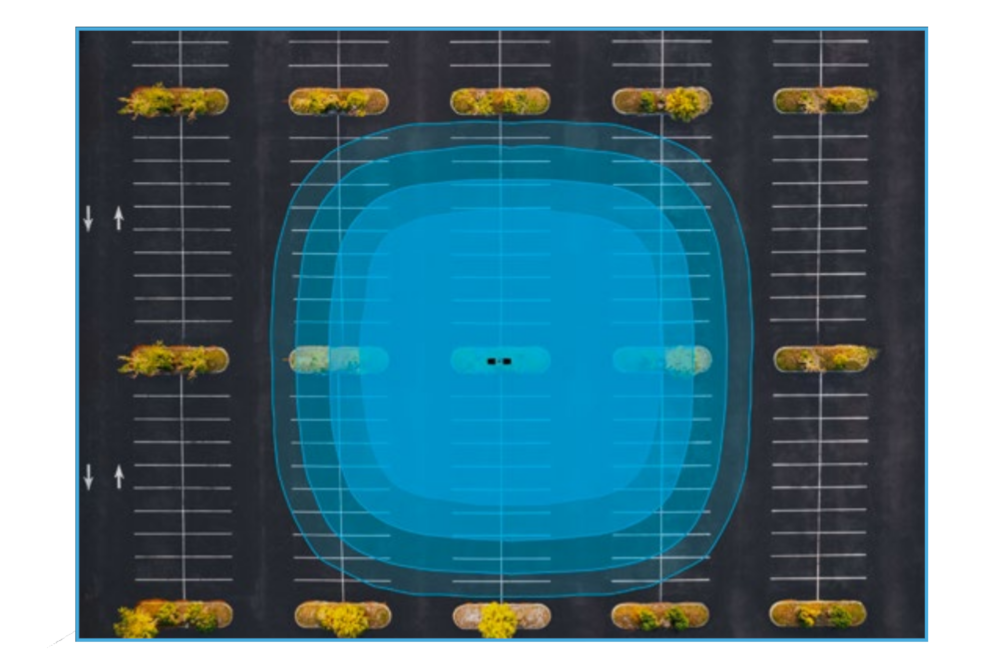

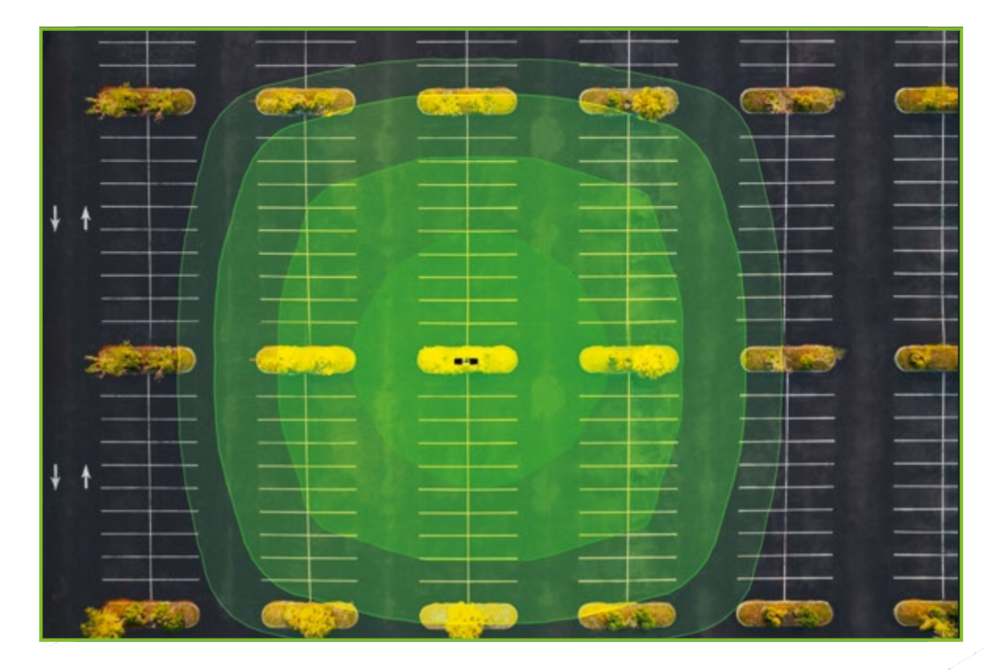

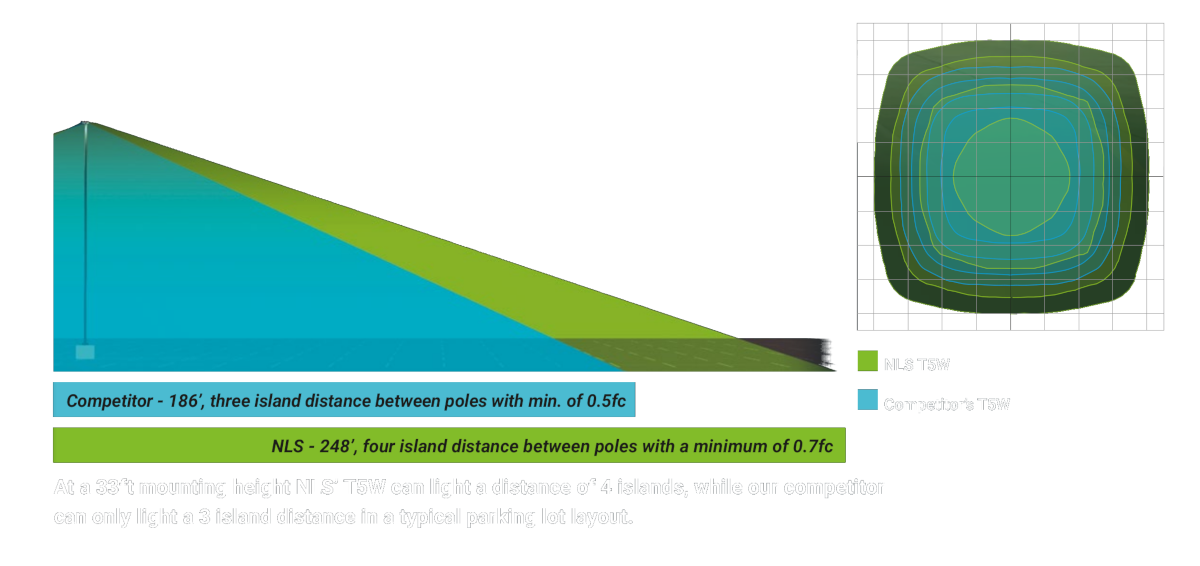

Type V Wide uses 20%+ fewer poles on a typical new installation. While lighting system costs for new construction vary by application and job site specifics, NLS Lighting’s new optical systems deliver industry leading performance and reduce overall lighting costs by increasing the distance between the luminaires and their associated poles without compromising photometric performance, safety, security, and energy efficiency.

Retrofit Application Benefits

Improved Light Levels • Lower Wattage
Better Performance/Fewer Luminaires • Less Maintenance

Utilizing NLS Lighting’s new Type V Wide silicone optics on retrofit Applications gives the lighting designer flexibility to maximize energy savings, increase the light levels, and improve light level uniformity. It’s the no compromise upgrade solution.

We improve uniformity by eliminating the wasted lumens directly below the fixture that spikes your Max/Min ratios and compromises your Avg/Min ratios, ultimately creating gaps in your coverage.

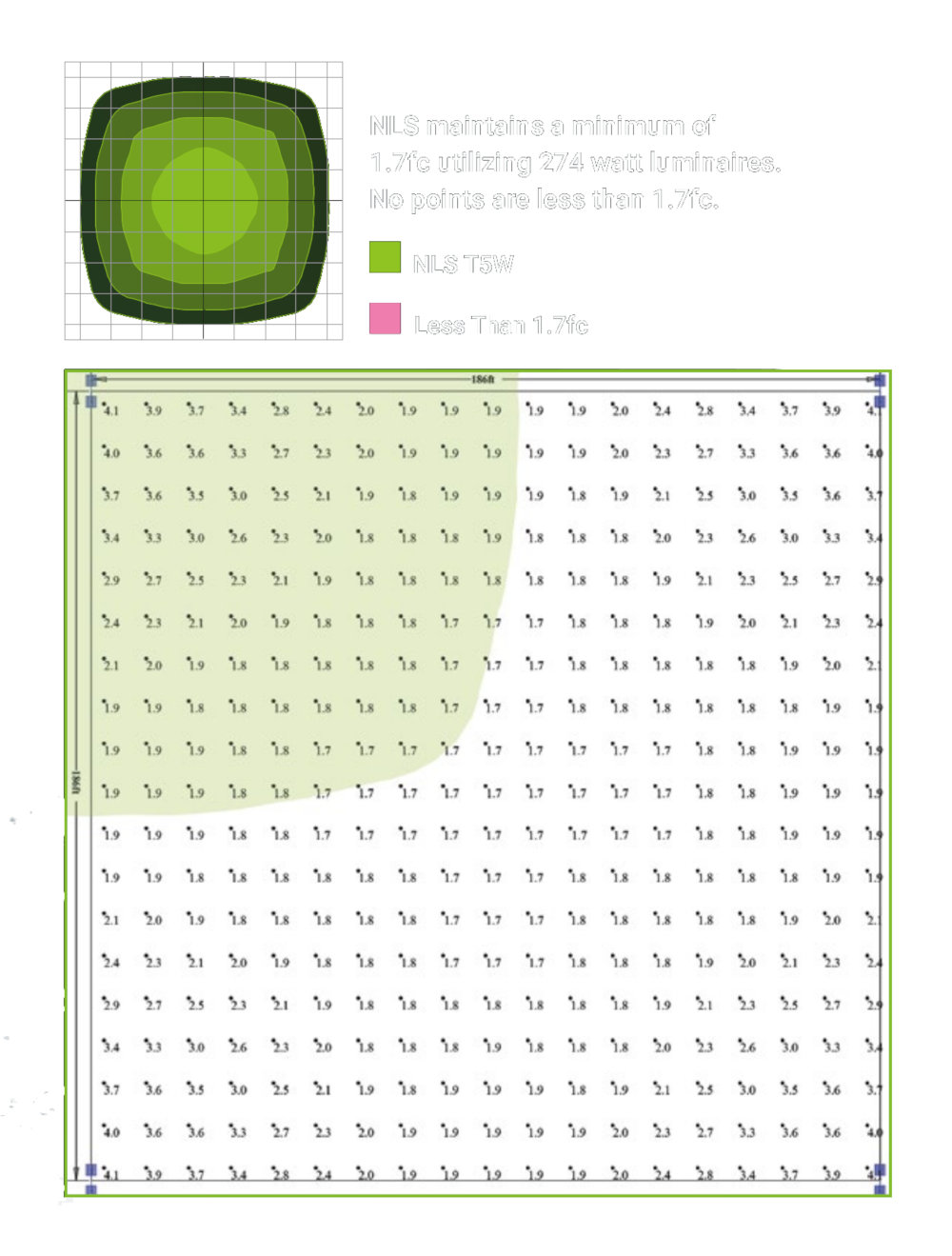

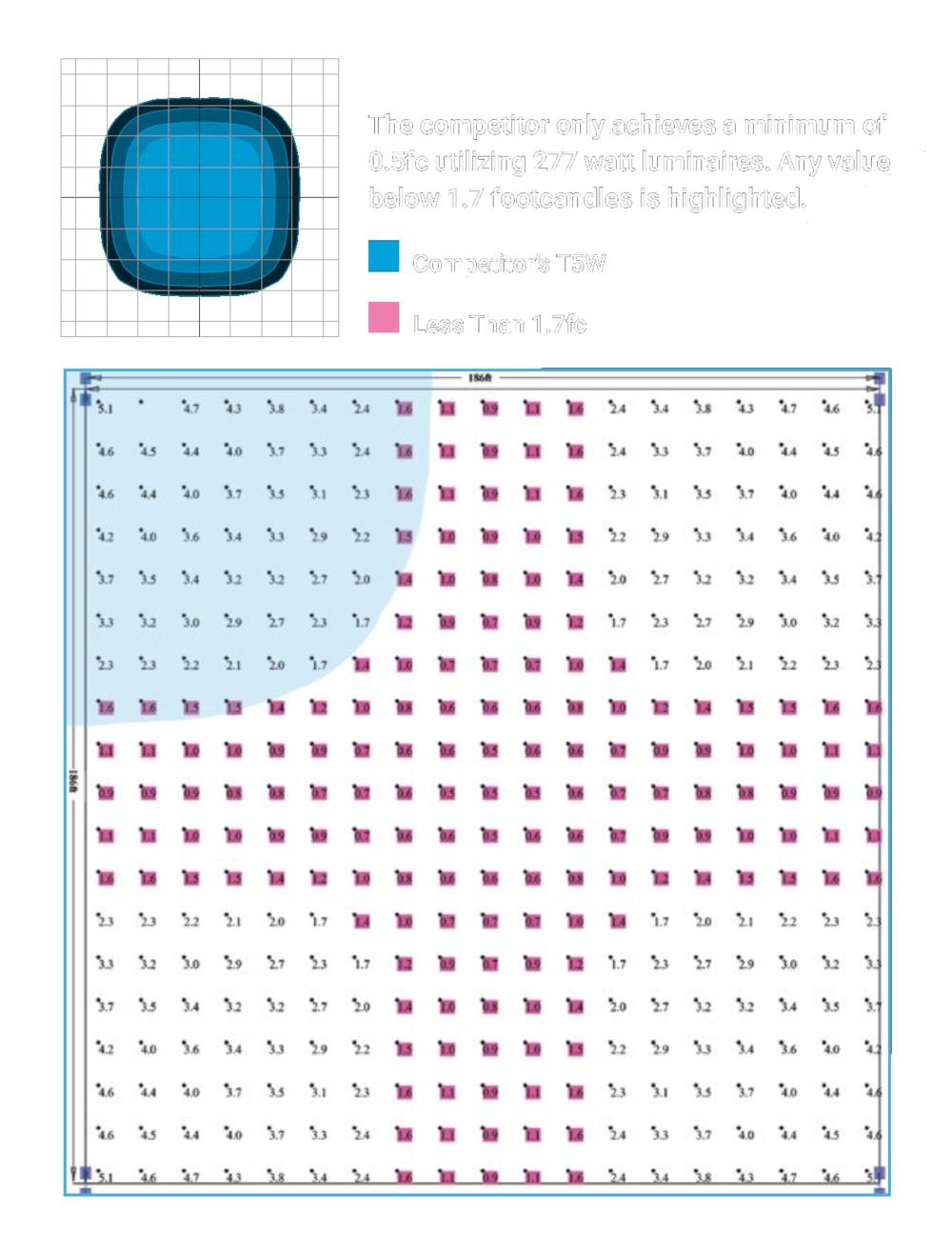

In the example below, the lighting designer chose to increase the light levels using the same wattage luminaire. However, they could have reduced the system wattage by approximately 2/3 to achieve comparable light levels with a 4X improvement in uniformity.

186’ x 186’ Pole Spacing

(typical for a large retail parking lot application)

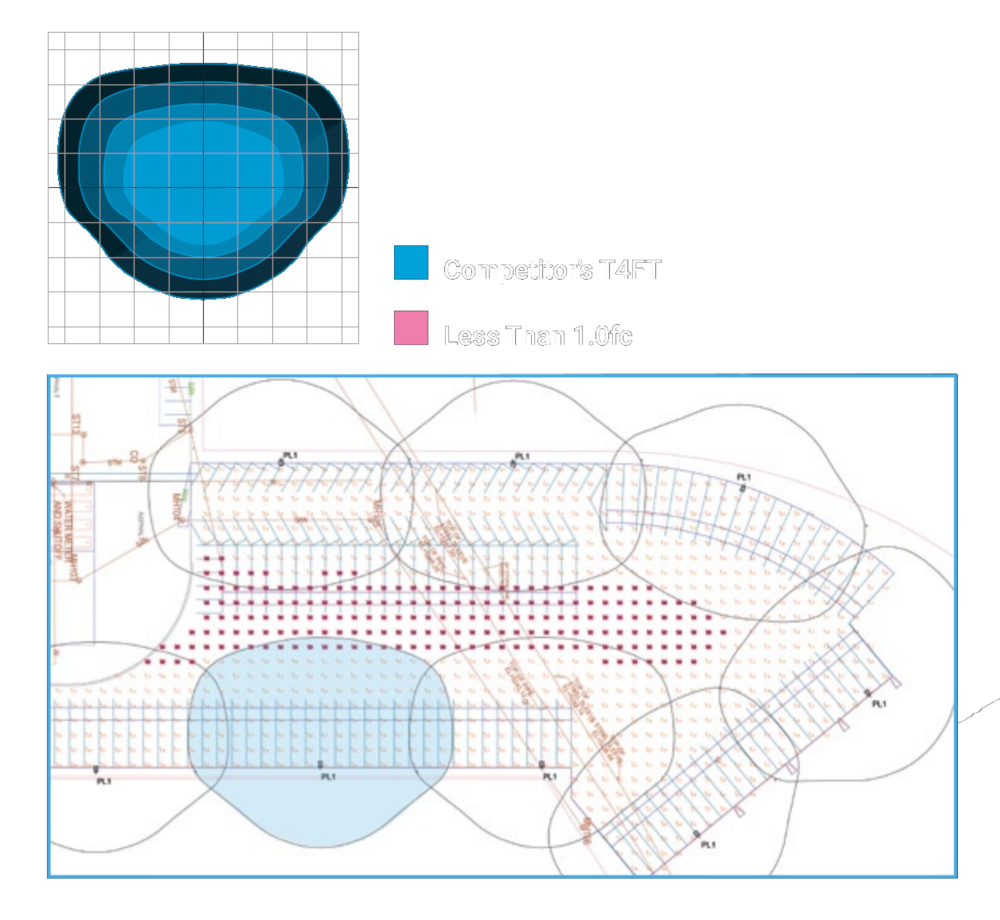

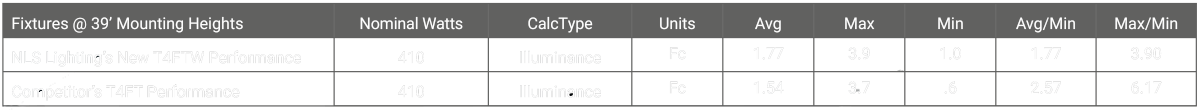

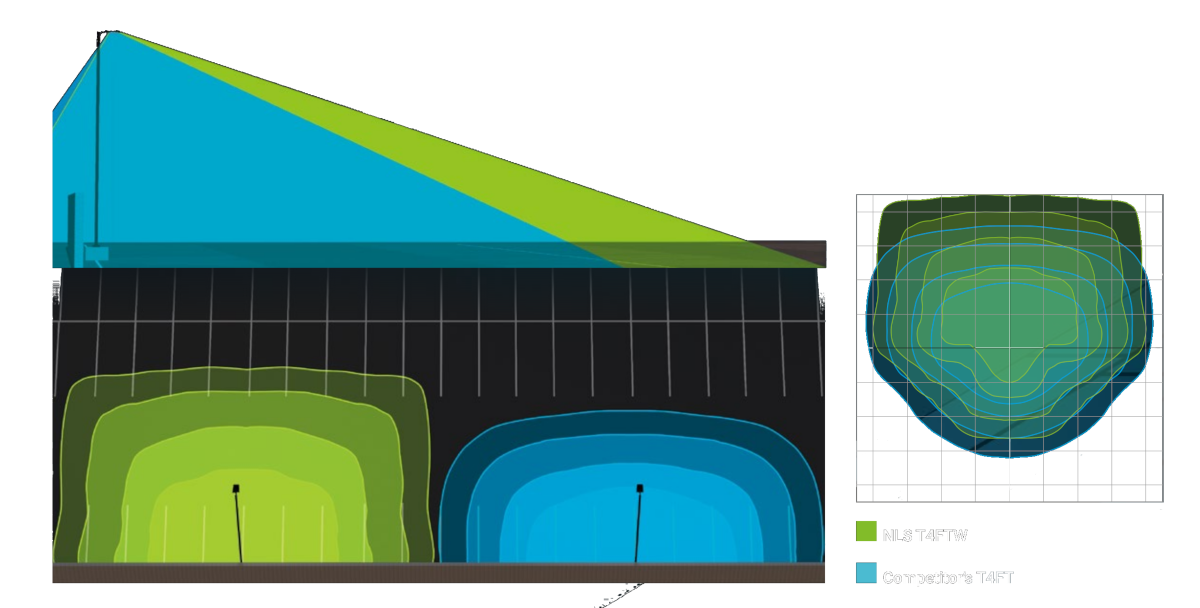

Type IV Forward Throw Wide (T4FTW) optic uses 15%+ fewer poles on a typical new installation, while on a retrofit layout your footcandle values would increase

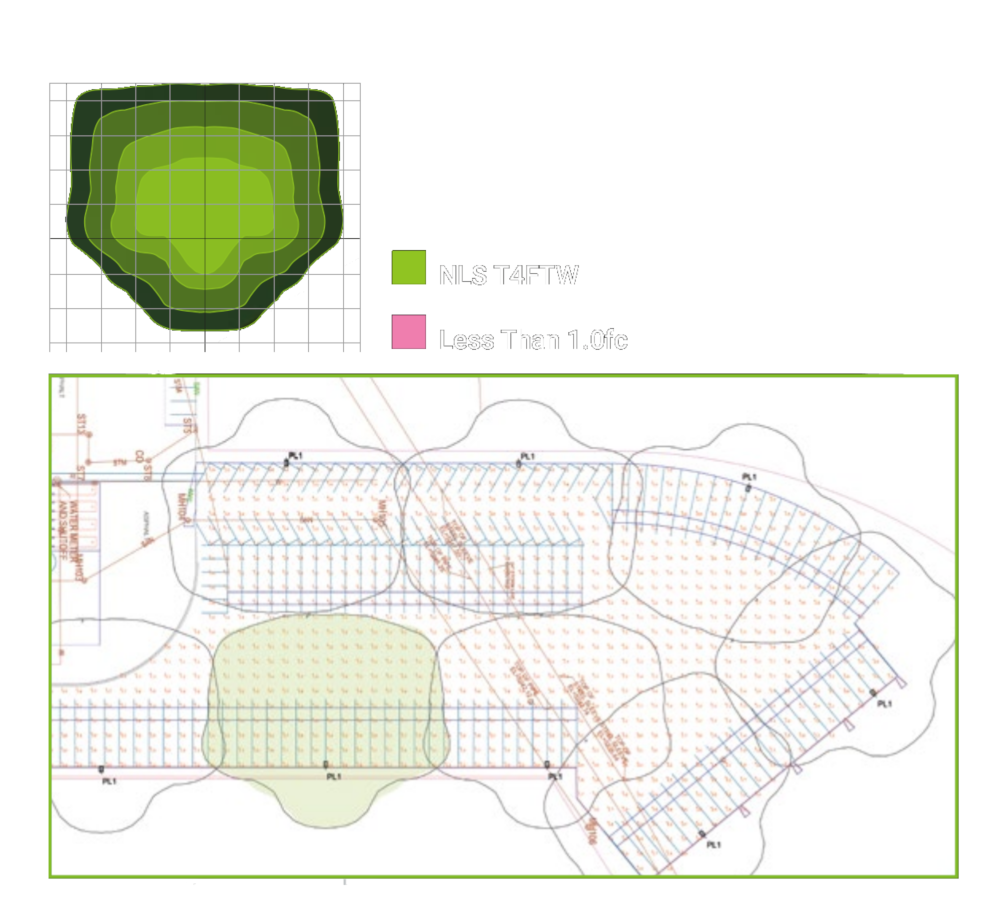

The Type IV Forward Throw Wide optic is the perfect perimeter optic distribution to be matched with the Type V Wide. Offering expanded coverage and superior uniformity for perimeter lighting. NLS Lighting will be able to help reduce overall lighting costs by increasing the distance between the luminaires and their associated poles without compromising photometric performance, safety, security, and energy efficiency.

For additional backlight reduction, consider the Type IV Forward Throw Wide with the House Side Shield (HSS) option added to dramatically reduce the backlight by up to 73%.
