NEWPORT

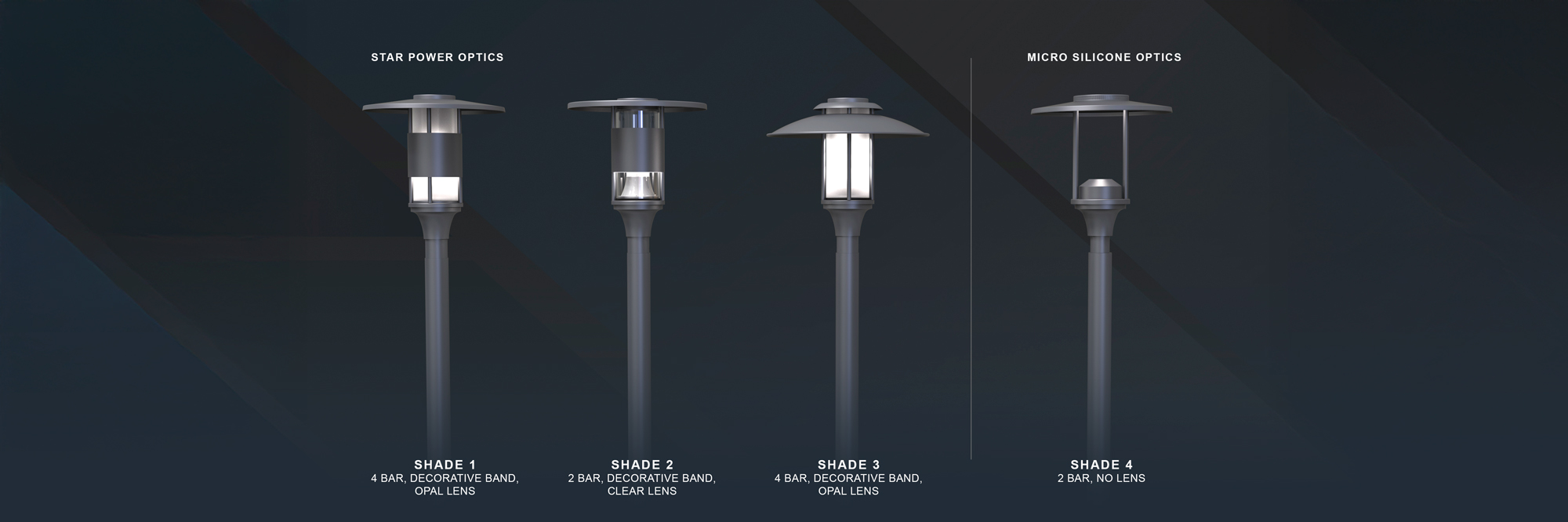

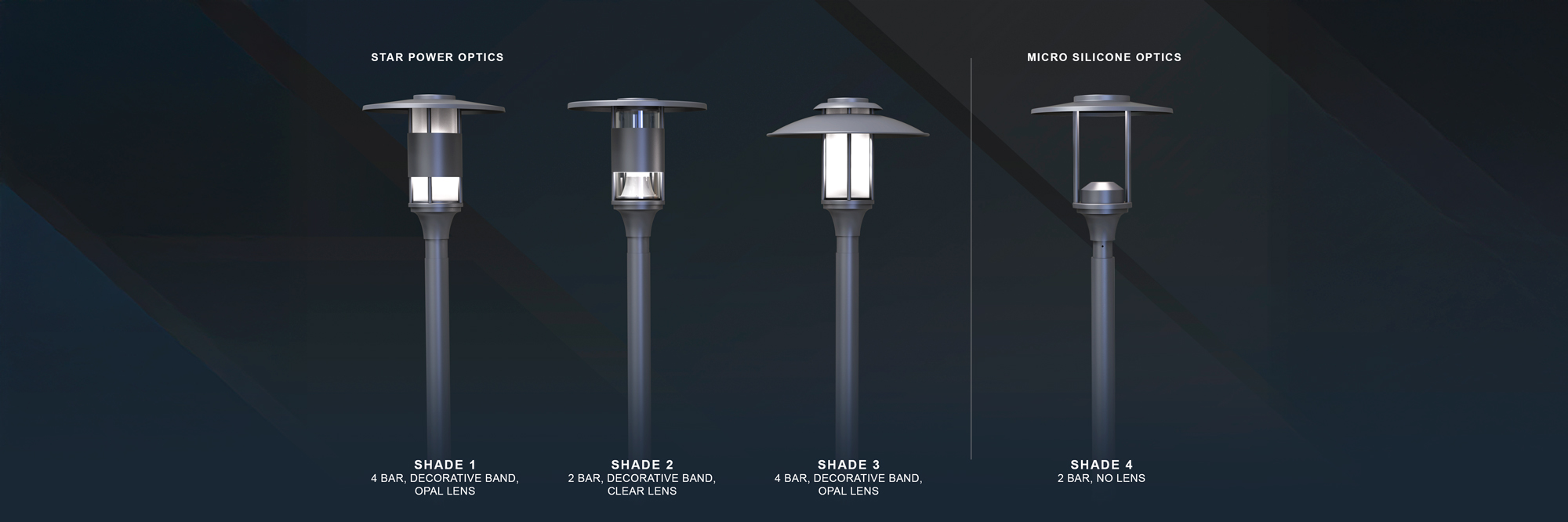

  • Shade 3, 2-Bar Mounting
  • Decorative Band + Clear lens OptionsDISPLAYING SHADE 2, 4-BAR
  • Opal Lens StandardSH2, 4-BAR MOUNTING
Shade 3, 2-Bar Mounting1 Decorative Band + Clear lens Options2 Opal Lens Standard3
  • – Offers up to 70% savings over traditional light sources, directing the light downward with the elimination of direct up light
    – Includes the Vertical optical system made of internal adjustable reflector panels that are adjustable to any desired degree angle
    – Achieves a cut off at the base of store fronts, as not to impede on the windows while at the same time lighting the pathway
    – Opal lens is standard; optional Clear Lens with 2 or 4 Bar Mounting and Decorative Band combinations
    – Available from 18 to 71 watts and is scaleable to replace any wattage between 70-400 watt HID
    – Throws light up to five mounting heights in all directions, enabling performance to exceed IES minimum foot candle levels and extend maintenance cycles
    – Kelvin temperature offering of (warm) 3000, (neutral) 4000 and (cool) 5000 in Type 3 and 5 light distributions
    – Philips Advance 0-10V Dimming Driver technology warranted 5 years
    – Conforms to the strictest Made in America standards designed, tooled, fabricated and assembled in the USA

  • The Star Power Reflector is the best Value LED optical system and utilizes the same mathematical patterns exhibited by millions of stars every night to distribute light to the intended target. Our goal is to create the highest amount of visual acuity and clarity with the least amount of required energy. This is Star Power. This is NLS Lighting.



    starpower_logo

  • Newport Wattage

    Milliamps16L20L32L48L
    350 mA (35) 18w 22w 33w 51w
    530 mA (53) 28w 33w 54w Not Available
    700 mA (7) 36w 44w 71w Not Available


    Newport Lumens

    Model NumberT3 LumensT3 Lm/WT5 LumensT5 Lm/WWatts
    NWP-1-XX-32L-35-30K - - 3,594 109 33
    NWP-1-XX-32L-35-40K - - 3,739 113 33
    NWP-1-XX-32L-35-50K - - 3,812 116 33
    NWP-1-XX-32L-53-30K - - 5,613 104 54
    NWP-1-XX-32L-53-40K - - 5,840 108 54
    NWP-1-XX-32L-53-50K - - 5,954 110 54
    NWP-1-XX-32L-7-30K - - 7,029 99 71
    NWP-1-XX-32L-7-40K - - 7,313 103 71
    NWP-1-XX-32L-7-50K - - 7,455 105 71
    NWP-1-S1-XX-32L-53-30K-HSS - - 4,027 75 54
    NWP-1-S1-XX-32L-53-40K-HSS - - 4,256 79 54
    NWP-1-S1-XX-32L-53-50K-HSS - - 4,502 83 54


  • Newport IES Files

    SizeOpticLEDsmAKelvinLumensWattsIES File
    NWP-1-XX-4B T3 32L 53 40K - 54
    NWP-1-XX-4B T5 32L 53 40K 5840 54
    NWP-1-XX-4B T5 20L 35 30K - 33


  • All dimensions are in inches.

    Newport_dimensions
