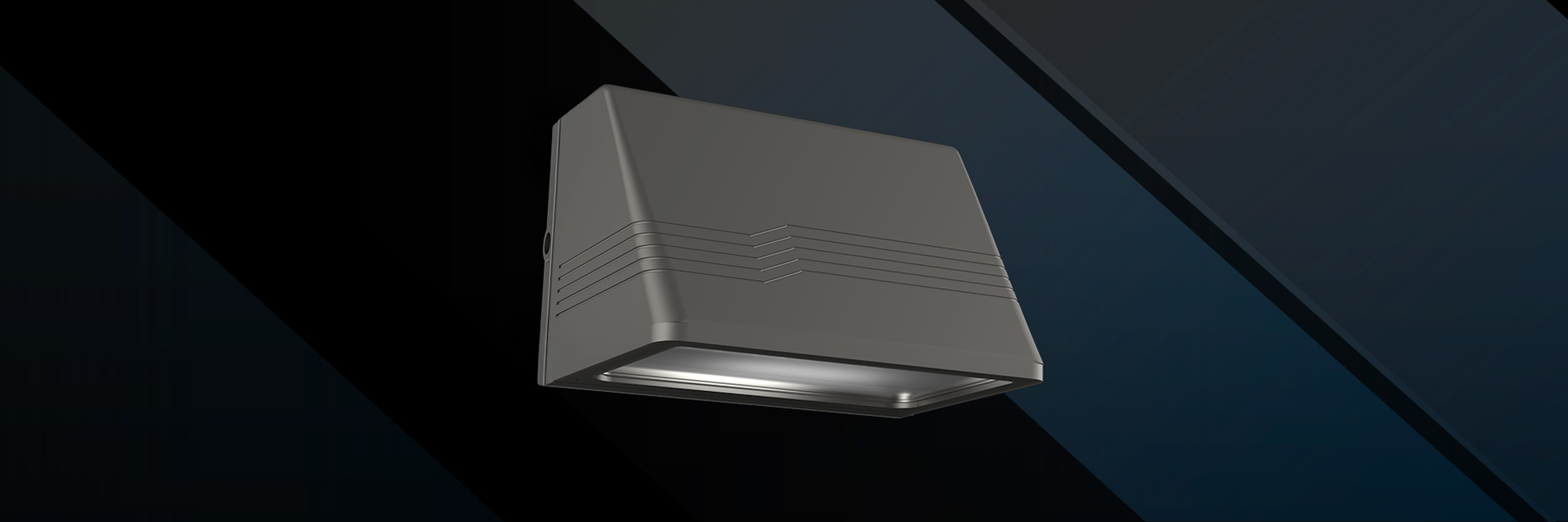

HERMOSA

Slider
  • – UL Listed for Wet Location
    – Tempered Borosilicate Glass Lens
    – High Quality Outdoor Powder Coat Finish
    – Minimum Start Temperature -40º F
    – Weather Resistant Silicon Gasket
    – Independent Photometric Testing
    – 5 Year Full Fixture or 50,000 Hour Life*
    – Title 24 Compliant
    – Die Cast Aluminum Housing
    – IP 66 Rated
    – Suitable for use at 40º C Ambient Temperature
    – Available in 16 and 32 Luxeon M LED Series, ranging from 28 to 71 watts
    – Type 2 and 4 light distribution
    – Kelvin temperature offering of (warm) 3000, (neutral) 4000, and (cool) 5000
    – Philips Advance driver technology warranted 5 years
    – Conforms to the strictest Made in America standards. Products are designed, tooled, fabricated and assembled in the USA

  • The Star Power reflector is the best value LED optical system and utilizes the same mathematical patterns exhibited by millions of stars every night to distribute light to the intended target. Our goal is to create the highest amount of visual acuity and clarity with the least amount of required energy. This is Star Power. This is NLS Lighting.



    starpower_logo

  • Hermosa Wattage

    Milliamps 16L 32L
    530 mA 28w 54w
    700 mA 36w 71w
    1050 mA 56w -
    Generated by wpDataTables

    Hermosa Lumens

    Order Model T2 Lumens T2 Lm/W T4 Lumens T4 Lm/W Watts
    1 HRM-1-16L-53-30K 2184 78 2296 82 28
    2 HRM-1-16L-53-40K 2352 84 2408 86 28
    3 HRM-1-16L-53-50K 2492 89 2520 90 28
    4 HRM-1-16L-7-30K 2808 78 2952 82 36
    5 HRM-1-16L-7-40K 3024 84 3096 86 36
    6 HRM-1-16L-7-50K 3204 89 3240 90 36
    7 HRM-1-16L-1-30K 4368 78 4704 84 56
    8 HRM-1-16L-1-40K 4704 84 4928 88 56
    9 HRM-1-16L-1-50K 4984 89 5208 93 56
    10 HRM-1-32L-53-30K 4212 78 4536 84 54
    11 HRM-1-32L-53-40K 4536 84 4752 88 54
    12 HRM-1-32L-53-50K 4806 89 5022 93 54
    13 HRM-1-32L-7-30K 5538 78 5964 84 71
    14 HRM-1-32L-7-40K 5964 84 6248 88 71
    15 HRM-1-32L-7-50K 6319 89 6603 93 71
    Generated by wpDataTables
  • Download Complete Zipped IES Files

    All HERMOSA IES Files



    Hermosa IES Files

    Fixture-Size Optic Type LEDs Milliamps Kelvin Lumens Watts Download File
    HRM-1 T2 16L 53 30K 2184 28
    HRM-1 T2 16L 53 40K 2352 28
    HRM-1 T2 16L 53 50K 2492 28
    HRM-1 T2 16L 7 30K 2808 36
    HRM-1 T2 16L 7 40K 3024 36
    HRM-1 T2 16L 7 50K 3204 36
    HRM-1 T2 16L 1 30K 4368 56
    HRM-1 T2 16L 1 40K 4704 56
    HRM-1 T2 16L 1 50K 4984 56
    HRM-1 T2 32L 53 30K 4212 54
    HRM-1 T2 32L 53 40K 4536 54
    HRM-1 T2 32L 53 50K 4806 54
    HRM-1 T2 32L 7 30K 5538 71
    HRM-1 T2 32L 7 40K 5964 71
    HRM-1 T2 32L 7 50K 6319 71
    HRM-1 T4 16L 53 30K 2296 28
    HRM-1 T4 16L 53 40K 2408 28
    HRM-1 T4 16L 53 50K 2520 28
    HRM-1 T4 16L 7 30K 2952 36
    HRM-1 T4 16L 7 40K 3096 36
    HRM-1 T4 16L 7 50K 3240 36
    HRM-1 T4 16L 1 30K 4704 56
    HRM-1 T4 16L 1 40K 4928 56
    HRM-1 T4 16L 1 50K 5208 56
    HRM-1 T4 32L 53 30K 4536 54
    HRM-1 T4 32L 53 40K 4752 54
    HRM-1 T4 32L 53 50K 5022 54
    HRM-1 T4 32L 7 30K 5964 71
    HRM-1 T4 32L 7 40K 6248 71
    HRM-1 T4 32L 7 50K 6603 71
    Generated by wpDataTables
  • All dimensions are in inches.

    hermosa_dimensions
