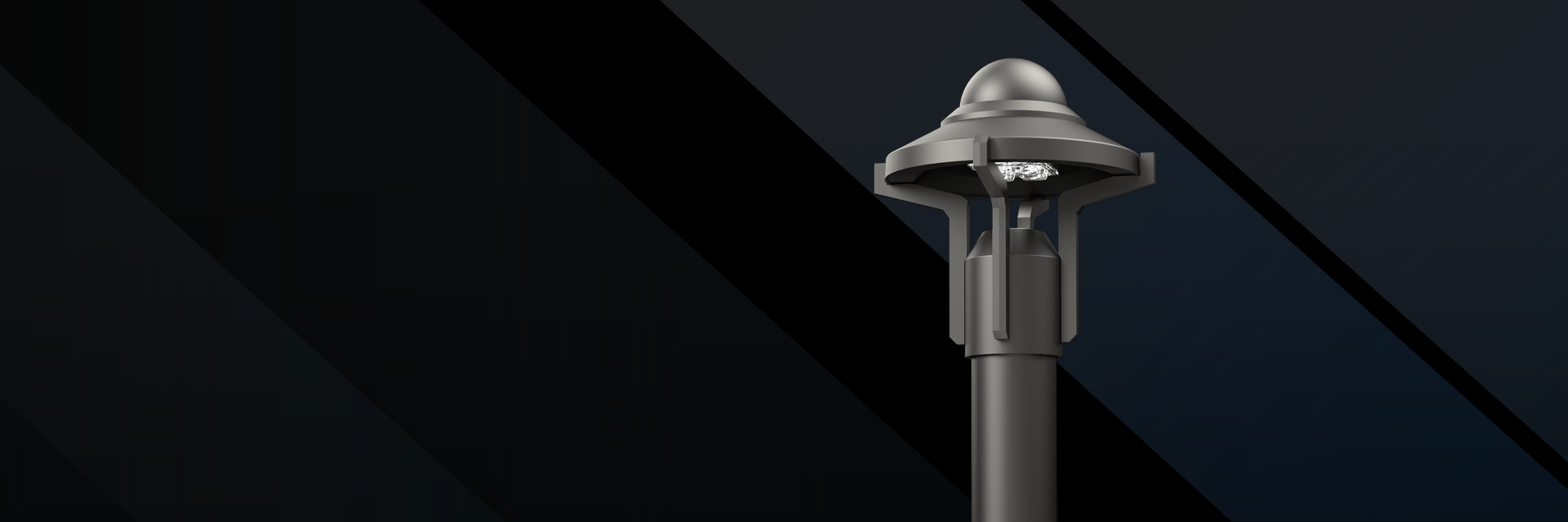

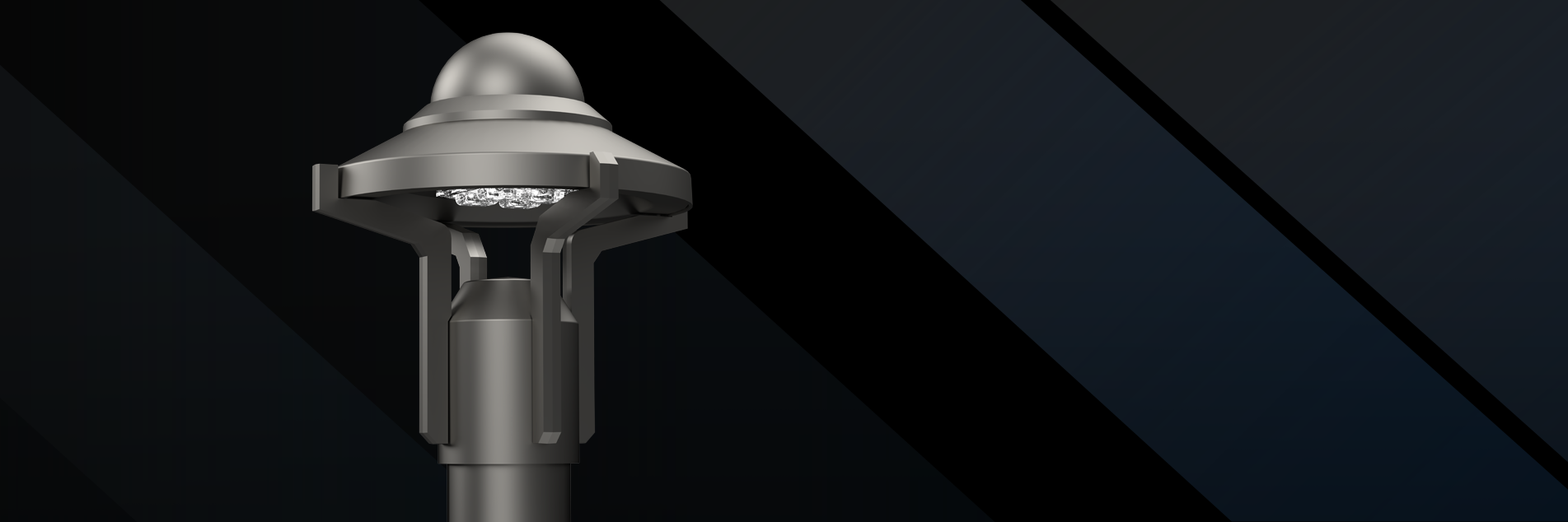

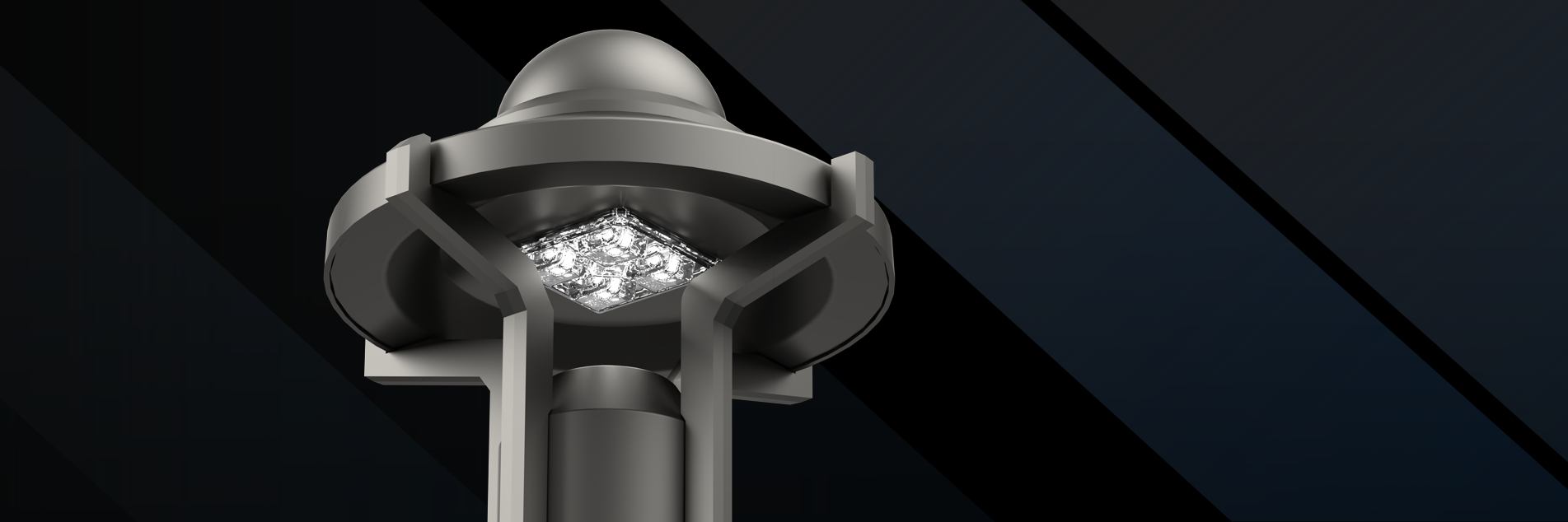

CALIFORNIA BOLLARD

previous arrow
next arrow
Slider
  • – California Bollard ranges from 10 to 56 watts at Type 2, 3, 4 and 5 light distribution

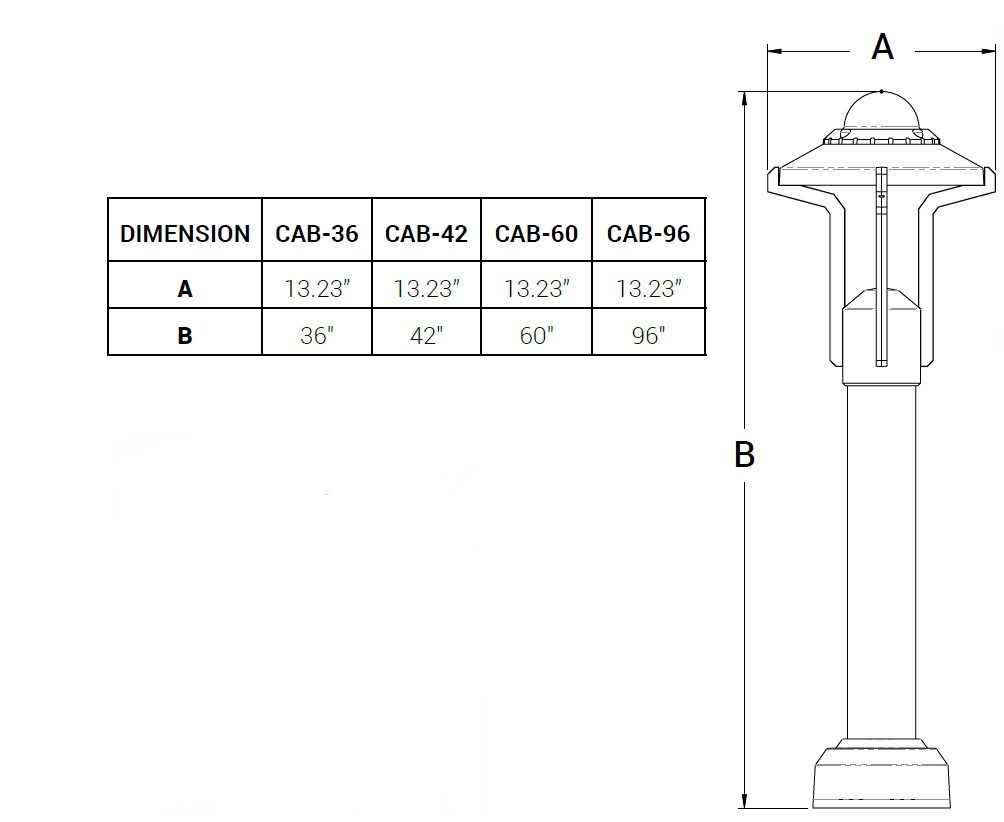

    – Available Heights: 36″, 42″, 60″, and 96″ Tall
    – Blends traditional design with modern LED technology
    – Silicone Micro Optics which produce 96% clarity and are rated up to 200° C (50% higher than acrylic)
    – Philips Advance 0-10V Dimming Driver technology warranted 5 years—best voltage variance resistance in our industry.
    – Conforms to the strictest Made in America standards designed, tooled, fabricated and assembled in the USA

  •

    Introducing the new optical solution to enhance light performance. NLS’ optical systems combined with custom in-house photometric design capabilites, will provide the best optical solution for any application at the lowest cost with the least amount of energy and maintenance.
    – Industry changing optical properties
    – Silicone optic withstands the harshest of weather and dirt conditions
    – Exceptional thermal and UV resistance
    – Rated up to 200°C, whereas acrylic is rated up to 85°C
    – No cracking, yellowing or getting brittle
    – Vandal resistant, no fading or chalking
    – Proven and warranted solution

  • California Bollard Wattage

    Milliamps 16L
    175 mA (175) 10w
    350 mA (35) 18w
    530 mA (53) 28w
    700 mA (7) 36w
    1050 mA (1) 56w
    Generated by wpDataTables

    California Bollard Lumens

    Order Model T2 Lumens T2 Lm/W T3 Lumens T3 Lm/W T4 Lumens T4 Lm/W T5 Lumens T5 Lm/W Watts
    1 CAB-XX-16L-175-30K 954 95 945 94 918 92 981 98 10
    2 CAB-XX-16L-175-40K 990 99 981 98 954 95 1026 103 10
    3 CAB-XX-16L-175-50K 1026 103 1017 102 990 99 1062 106 10
    4 CAB-XX-16L-35-30K 1908 106 1890 105 1836 102 1962 109 18
    5 CAB-XX-16L-35-40K 1980 110 1962 109 1908 106 2052 114 18
    6 CAB-XX-16L-35-50K 2052 114 2034 113 1980 110 2124 118 18
    7 CAB-XX-16L-53-30K 2968 106 2940 105 2856 102 3052 109 28
    8 CAB-XX-16L-53-40K 3080 110 3052 109 2968 106 3192 114 28
    9 CAB-XX-16L-53-50K 3192 114 3164 113 3080 110 3304 118 28
    10 CAB-XX-16L-7-30K 3816 106 3780 105 3672 102 3924 109 36
    11 CAB-XX-16L-7-40K 3960 110 3924 109 3816 106 4104 114 36
    12 CAB-XX-16L-7-50K 4104 114 4068 113 3960 110 4248 118 36
    13 CAB-XX-16L-1-30K 5936 106 5880 105 5712 102 6104 109 56
    14 CAB-XX-16L-1-40K 6160 110 6104 109 5936 106 6384 114 56
    15 CAB-XX-16L-1-50K 6384 114 6328 113 6160 110 6608 118 56
    Generated by wpDataTables





  • CAB BUG Ratings

    Order Model T2 B.U.G. T3 B.U.G. T4 B.U.G. T5 B.U.G. Watts
    1 CAB-XX-16L-35-30K B1-U3-G1 B1-U3-G1 B1-U0-G1 B2-U2-G1 18
    2 CAB-XX-16L-35-40K B1-U3-G1 B1-U3-G1 B1-U0-G1 B2-U2-G1 18
    3 CAB-XX-16L-35-50K B1-U3-G1 B1-U3-G1 B1-U0-G1 B2-U2-G1 18
    4 CAB-XX-16L-53-30K B1-U3-G1 B1-U3-G1 B1-U0-G1 B2-U3-G1 28
    5 CAB-XX-16L-53-40K B1-U3-G1 B1-U3-G1 B1-U0-G1 B2-U3-G1 28
    6 CAB-XX-16L-53-50K B1-U3-G1 B1-U3-G1 B1-U0-G1 B2-U3-G1 28
    7 CAB-XX-16L-7-30K B1-U3-G1 B1-U3-G1 B1-U0-G1 B3-U3-G1 36
    8 CAB-XX-16L-7-40K B1-U3-G1 B1-U3-G1 B1-U0-G1 B3-U3-G1 36
    9 CAB-XX-16L-7-50K B1-U3-G1 B1-U3-G1 B1-U0-G1 B3-U3-G1 36
    10 CAB-XX-16L-1-30K B1-U3-G1 B1-U3-G1 B1-U0-G2 B3-U3-G1 56
    11 CAB-XX-16L-1-40K B1-U3-G1 B2-U3-G2 B1-U0-G2 B3-U3-G1 56
    12 CAB-XX-16L-1-50K B1-U3-G1 B1-U3-G1 B1-U0-G2 B3-U3-G1 56
    Generated by wpDataTables
  • California Bollard IES Files

    Size Optic LEDs Milliamps Kelvin Lumens Watts IES File
    CAB T2 16L 35 30K 1908 18
    CAB T2 16L 35 40K 1980 18
    CAB T2 16L 35 50K 2052 18
    CAB T2 16L 53 30K 2968 28
    CAB T2 16L 53 40K 3080 28
    CAB T2 16L 53 50K 3192 28
    CAB T2 16L 7 30K 3816 36
    CAB T2 16L 7 40K 3960 36
    CAB T2 16L 7 50K 4104 36
    CAB T2 16L 1 30K 5936 56
    CAB T2 16L 1 40K 6160 56
    CAB T2 16L 1 50K 6384 56
    CAB T3 16L 35 30K 1890 18
    CAB T3 16L 35 40K 1962 18
    CAB T3 16L 35 50K 2034 18
    CAB T3 16L 53 30K 2940 28
    CAB T3 16L 53 40K 3052 28
    CAB T3 16L 53 50K 3164 28
    CAB T3 16L 7 30K 3780 36
    CAB T3 16L 7 40K 3924 36
    CAB T3 16L 7 50K 4068 36
    CAB T3 16L 1 30K 5880 56
    CAB T3 16L 1 40K 6104 56
    CAB T3 16L 1 50K 6328 56
    CAB T4 16L 35 30K 1836 18
    CAB T4 16L 35 40K 1908 18
    CAB T4 16L 35 50K 1980 18
    CAB T4 16L 53 30K 2856 28
    CAB T4 16L 53 40K 2968 28
    CAB T4 16L 53 50K 3080 28
    CAB T4 16L 7 30K 3672 36
    CAB T4 16L 7 40K 3816 36
    CAB T4 16L 7 50K 3960 36
    CAB T4 16L 1 30K 5712 56
    CAB T4 16L 1 40K 5936 56
    CAB T4 16L 1 50K 6160 56
    CAB T5 16L 35 30K 1962 18
    CAB T5 16L 35 40K 2052 18
    CAB T5 16L 35 50K 2135 18
    CAB T5 16L 53 30K 3088 28
    CAB T5 16L 53 40K 3221 28
    CAB T5 16L 53 50K 3332 28
    CAB T5 16L 7 30K 3616 36
    CAB T5 16L 7 40K 3770 36
    CAB T5 16L 7 50K 3975 36
    CAB T5 16L 1 30K 6104 56
    CAB T5 16L 1 40K 6384 56
    CAB T5 16L 1 50K 6608 56
    Generated by wpDataTables
  • Related marketing material is available for download or by request for delivery.  Standard shipping is 5-7 business days via UPS Ground. For expedited delivery, please contact factory.
