ARCHITECTURAL ARM 4

  • AA4 Single
  • AA4 Double 180
  • AA4 Wall Mount (Side View)
  • AA4 Wall Mount (Front View)
AA4 Single1 AA4 Double 1802 AA4 Wall Mount (Side View)3 AA4 Wall Mount (Front View)4
  • Architectural Arm 4 is constructed of extruded aluminum tubing. Integrates with poles or tenons of 3-1/2″, 4”, 4-1/2″, or 5″ OD and is secured with 3/8” stainless steel Allen set screws. Contact NLS for custom configuration or others mounting options. Arms are designed, tooled, fabricated and assembled in the USA.

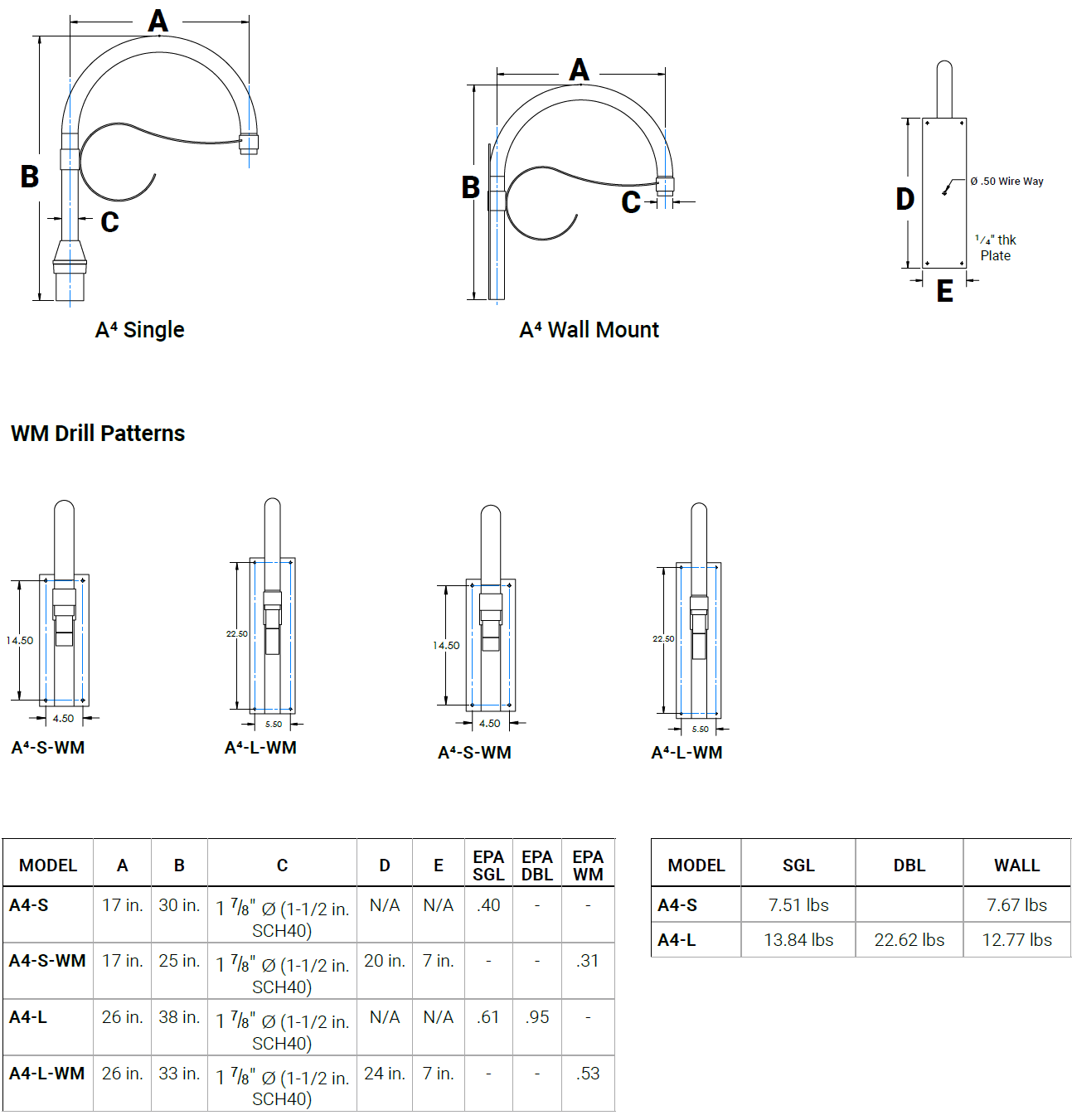

  • All dimensions are in inches.

    aa4_dimensions
